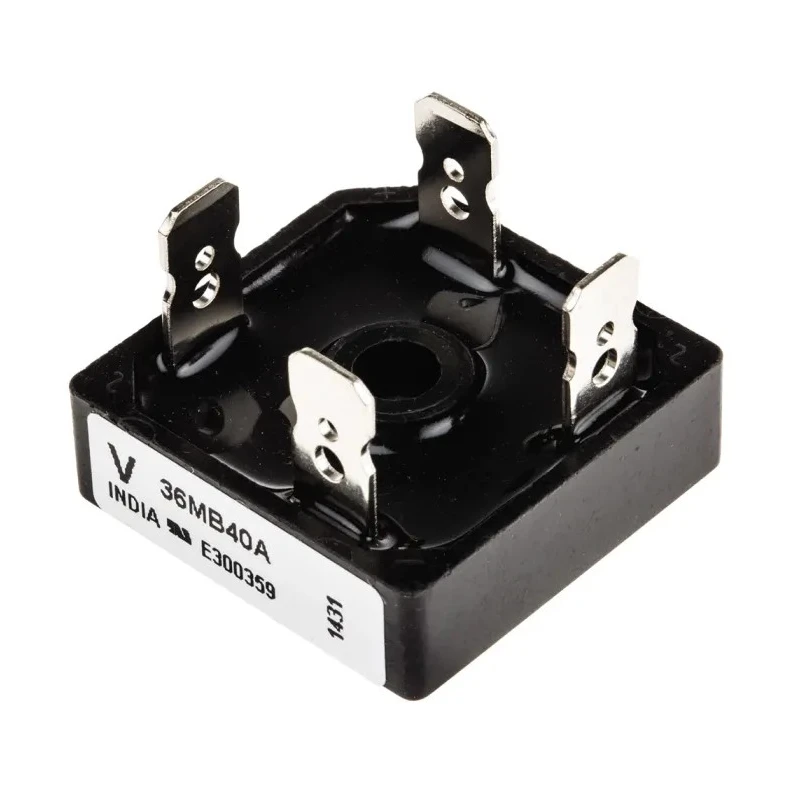

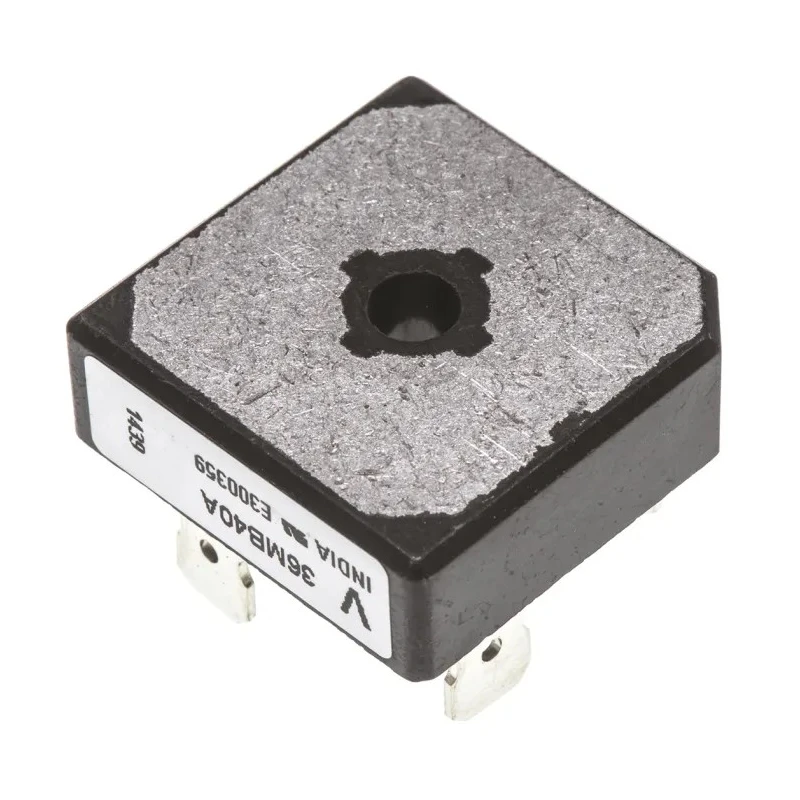

Vishay Bridge Rectifier 400 V 500 A, 4-Pin Single, Screw Mount, D-34 Package VS-36MB40A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-36MB40A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-36MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.14V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 200 V 500 A, 4-Pin SingleBrand | Vishay |
Key Features
- Designed with a screw mount and D-34 package for reliable installation.
- Capable of operating at a maximum temperature of 150°C and minimum temperature of -55°C.
- High thermal conductivity package with electrically insulated case for enhanced thermal performance.
- Compact size with dimensions of 28.5 mm length, 28.5 mm width, and 9.8 mm height.
- Low peak forward voltage of 1.14 V and peak reverse current of 10 μA ensures efficient rectification.
- Provides excellent power-to-volume ratio for use in power electronics and industrial applications.
- Manufactured in India to Vishay’s rigorous quality standards.
Product Description
Vishay VS-36MB40A bridge rectifier is a high-performance semiconductor device designed for converting alternating current (AC) to direct current (DC) in full-wave rectification applications. Rated for a peak reverse voltage of 400 V and a peak non-repetitive forward surge current of 500 A, this single-phase diode bridge rectifier provides robust electrical performance.
It features a screw mounting type with a D-34 package ensuring secure installation and reliability. The device operates effectively from -55°C up to a maximum temperature of 150°C, suitable for demanding industrial environments.
The universal 3-way terminal options - push-on, wrap-around, or solder - allow flexible connectivity, while the high thermal conductivity and electrically insulated case contribute to superior thermal performance and safety.
With compact dimensions of 28.5 mm length, 28.5 mm width, and 9.8 mm height, this Bridge Rectifier is designed to maximize power density. Its low peak forward voltage of 1.14 V and minimal peak reverse current of 10 μA enhance efficiency and reduce power loss.
This component is ideal for use in industrial power supplies, motor drives, HVAC systems, and various manufacturing equipment requiring reliable AC to DC conversion. The device is manufactured in India according to Vishay's stringent quality and performance standards, ensuring operational durability and safety.
Designed with a screw mount and D-34 package for secure installation. Universal 3-way terminals provide flexible connection options. Operates within a temperature range from -55°C to 150°C for versatile industrial use. High thermal conductivity electrically insulated case supports thermal management.
Compact footprint of 28.5x28.5x9.8 mm optimizes power-to-volume ratio. Low peak forward voltage and reverse current minimize energy losses. Manufactured in India with strict quality controls. Explore a wide range of semiconductor components and industrial electronics on EnvMart for your technical and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-36MB40A bridge rectifier has a peak reverse voltage rating of 400 V.
This model can operate at a maximum temperature of 150°C.
The dimensions of this bridge rectifier are 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height.
It has a peak non-repetitive forward surge current rating of 500 A.
This bridge rectifier features a screw mounting type for secure installation.
The peak forward voltage of the VS-36MB40A is 1.14 V.
The minimum operating temperature for this device is -55°C.
It features universal 3-way terminals that can be push-on, wrap-around, or soldered.
The peak reverse current rating is 10 μA.
This bridge rectifier is manufactured in India.
It is suitable for industrial power supplies, motor drives, HVAC systems, and various manufacturing equipment requiring AC to DC conversion.
This model belongs to the VS-36MB series.
