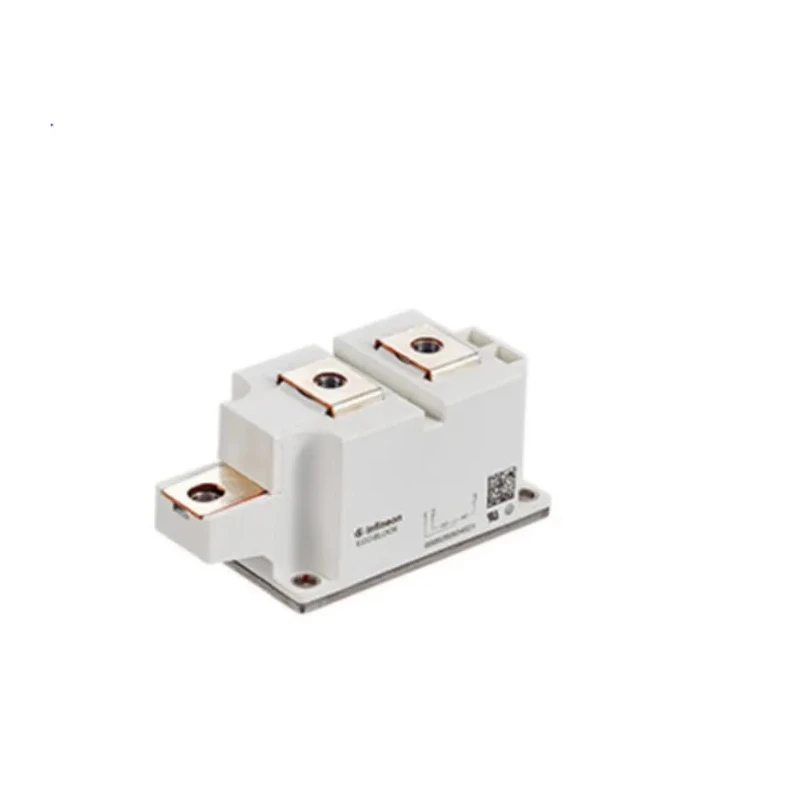

Infineon Phase Control Thyristor Module 1600 V, 280 A, 150 mA, 9 kA, 1.77 V TT280N16SOFHPSA1

Infineon TT280N16SOFHPSA1 is a high-performance Phase Control Thyristor Module designed for industrial and electronic applications requiring controlled power switching. It features a 1600 V repetitive peak reverse voltage and 280 A rated average on-state current, making it suitable for reliable phase control in power management systems.

The module incorporates solder bond technology and a solid electrically insulated copper base plate for optimum thermal management and mechanical stability. The 7-pin tray package simplifies installation and facilitates integration into various semiconductor and electronic modules.

Key electrical characteristics include a maximum gate trigger current of 150 mA, maximum holding current of 150 mA, and a surge current capacity of up to 9 kA, ensuring robustness under sudden current spikes. The operating temperature range from -40°C to 130°C allows deployment in demanding industrial and commercial environments.

This Phase Control Thyristor is an SCR type, optimized for phase angle control applications such as motor control, lamp dimming, and power modulation. Its peak on-state voltage of 1.77 V reduces conduction losses and enhances efficiency. The module is not automotive-standard compliant but meets industrial reliability expectations.

High surge current capacity ensures durability in transient conditions. Wide temperature range enables use in harsh industrial settings. Compact 7-pin tray package simplifies installation. Electrically insulated copper base plate provides enhanced thermal management.

Low peak on-state voltage minimizes power dissipation. Reliable phase control performance with SCR technology. Suitable for power control in industrial automation, manufacturing, and electronic equipment.

This module supports demanding industrial, manufacturing, and power control applications where efficient phase control and robustness are vital. It integrates well into systems for electrical power modulation and control. For more components in the Thyristor Module category, explore EnvMart’s extensive catalog.
