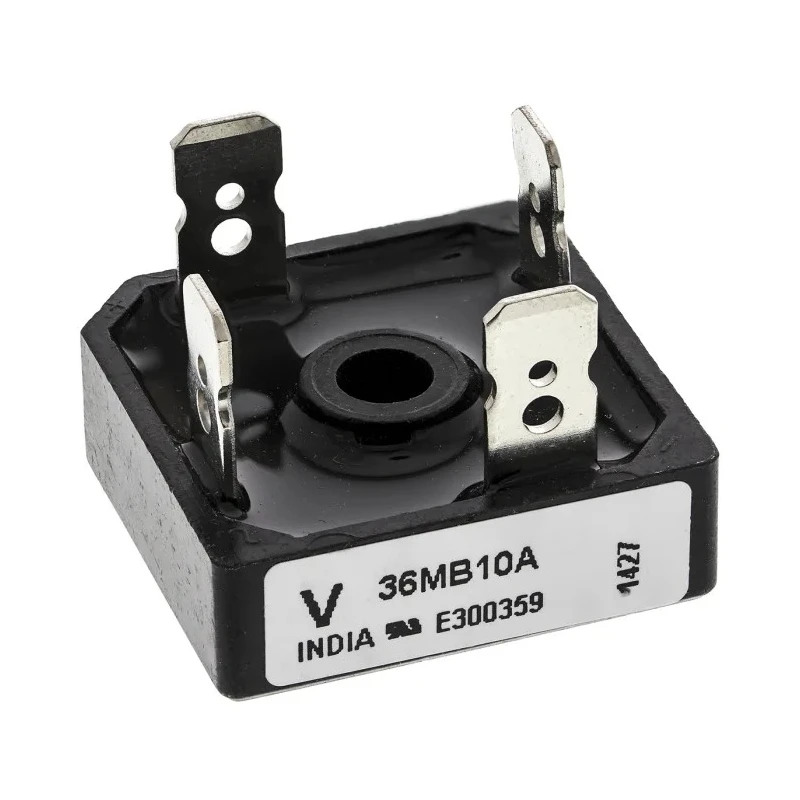

Vishay Bridge Rectifier, 100 V 155 A, 4-Pin Single VS-36MB10A

Vishay VS-36MB10A Bridge Rectifier is a reliable semiconductor device designed for converting alternating current (AC) to direct current (DC) through full-wave rectification in various electronic applications.

This bridge rectifier supports a peak reverse repetitive voltage of 100 V, making it suitable for systems requiring robust voltage handling capabilities. With a maximum continuous forward current of 35 A and the ability to withstand peak non-repetitive surge currents up to 155 A, it ensures operational durability in demanding conditions.

The device is housed in a compact D-34 package with dimensions approximately 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height, featuring screw mounting for secure attachment. It contains 4 pins with a single configuration, suitable for flexible electronic circuit designs.

Engineered to operate over a wide temperature range from -40°C to 150°C, the rectifier ensures reliability in industrial, automotive, laboratory, and HVAC control systems. Its high thermal conductivity package with electrically insulated case promotes efficient heat dissipation and electrical safety.

The VS-36MB10A exhibits a low peak forward voltage drop of 1.3 V, which contributes to efficient power conversion and minimal energy loss. Its peak reverse current is limited to 10 μA, enhancing the device's performance in sensitive electronic circuits.

This bridge rectifier is manufactured in India to meet stringent quality standards. It is ideal for use in power supplies, motor controls, battery chargers, and other commercial and industrial electronics requiring dependable AC to DC conversion components.

Designed for high reliability in demanding electronic systems. Supports a peak reverse repetitive voltage of 100 V for robust operation. Features a maximum forward current of 35 A and peak surge current of 155 A. Operates reliably across a temperature range from -40°C to 150°C.

Constructed with a D-34 package type and screw mount for easy installation. Includes 4 pins in a single configuration for flexible circuit integration. High thermal conductivity package with electrically insulated case enhances safety and heat dissipation.

Provides low peak forward voltage of 1.3 V and minimal reverse current of 10 μA for increased efficiency. Manufactured in India ensuring quality and performance consistency. Explore more Vishay semiconductor devices and Bridge Rectifiers on EnvMart for your electronic component needs.
