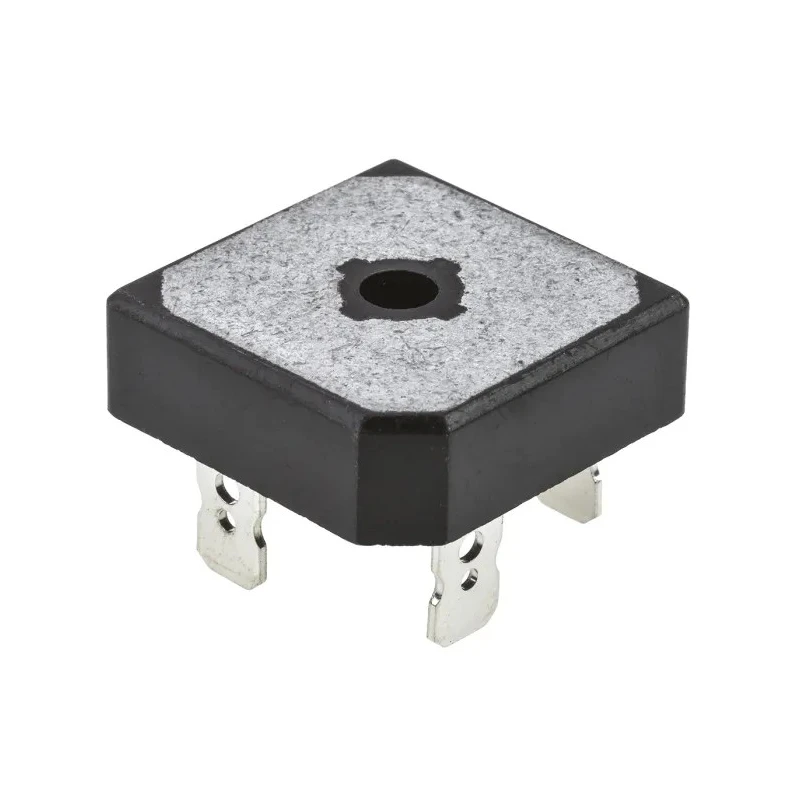

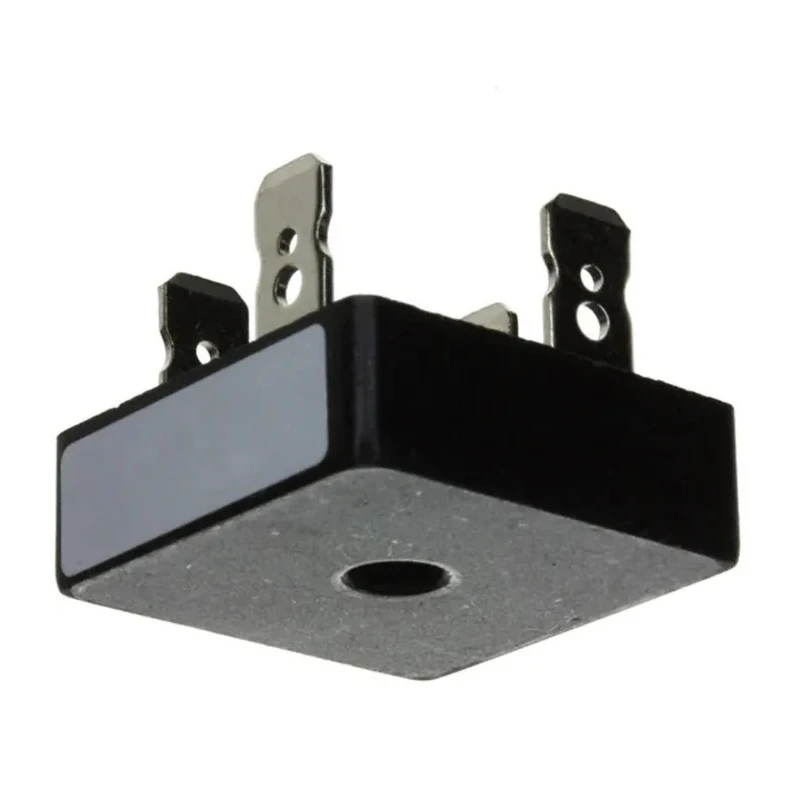

Vishay Bridge Rectifier Single Phase 50 V 35 A Forward Current 500 A Surge Current 4-Pin VS-36MB05A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-36MB05A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-36MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.3V |
| Vishay Bridge Rectifier, 100 V 155 A, 4-Pin SingleBrand | Vishay |
Key Features
- Compact encapsulated design suitable for general purpose and instrumentation applications.
- Operates reliably in temperatures ranging from -55°C to 150°C.
- Screw mounting type with D-34 package for ease of installation.
- Features a peak non-repetitive forward surge current of 500 A.
- Low peak forward voltage of 1.3 V ensures efficient conduction.
- Robust design supports a peak reverse current of 10 μA.
- Single phase configuration with 4-pin count for standard integration.
- Series VS-36MBA with no automotive standard certification.
Product Description
Vishay VS-36MB05A Bridge Rectifier is a highly reliable single-phase rectifier designed to provide efficient AC to DC conversion in diverse industrial and instrumentation applications. Operating within a wide temperature range from -55°C to 150°C, this device is encapsulated in a compact D-34 package and provides excellent power-to-volume ratio. Its screw mount design enhances ease of installation and mechanical stability.
The rectifier supports a forward current of 35 A, with the ability to withstand surge currents up to 500 A non-repetitively, ensuring robustness during transient conditions. The device presents a low peak forward voltage of 1.3 V, reducing power losses and improving efficiency. With a peak repetitive reverse voltage (VRRM) of 50 V and low peak reverse current of 10 μA, this rectifier is suitable for applications demanding high blocking voltage reliability.
Measuring 28.5 mm in length and width, and 9.8 mm in height, the VS-36MB05A series offers a compact footprint ideal for space-constrained designs. Featuring a 4-pin single-phase configuration, it is compatible with standard mounting arrangements.
Compact encapsulated single-phase bridge rectifier for general and instrumentation uses. Wide operational temperature range from -55°C to 150°C. Screw mount and D-34 package for secure fitting. Forward current rating of 35 A and surge current rating of 500 A.
Peak forward voltage of 1.3 V minimizes conduction losses. Low peak reverse current of 10 μA ensures stable blocking voltage. Precise dimensions of 28.5 mm x 28.5 mm x 9.8 mm. Series VS-36MBA with no automotive certification.
This bridge rectifier is widely applicable in industrial electronics, power supplies, instrumentation systems, and automation devices. It combines compact design and robust electrical characteristics to ensure dependable performance in critical applications.
Explore EnvMart's extensive catalog for additional Vishay Semiconductor components and related Bridge Rectifiers for your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the VS-36MB05A bridge rectifier is 150°C.
This model has a peak reverse repetitive voltage (VRRM) rating of 50 V.
The forward current rating of this bridge rectifier is 35 A.
It can handle a peak non-repetitive forward surge current of up to 500 A.
The dimensions of the VS-36MB05A are 28.5 mm in length and width, and 9.8 mm in height.
The peak forward voltage for this rectifier is 1.3 V.
This model uses a screw mounting type for installation.
The VS-36MB05A has a single-phase configuration with a 4-pin count.
The minimum operating temperature for this model is -55°C.
The peak reverse current for this bridge rectifier is 10 μA.
This bridge rectifier is suitable for industrial electronics, power supplies, instrumentation systems, and automation devices.
