RS PRO Surface Mount CR2032 Battery Holder PCB Mount 500V 3A CR2032

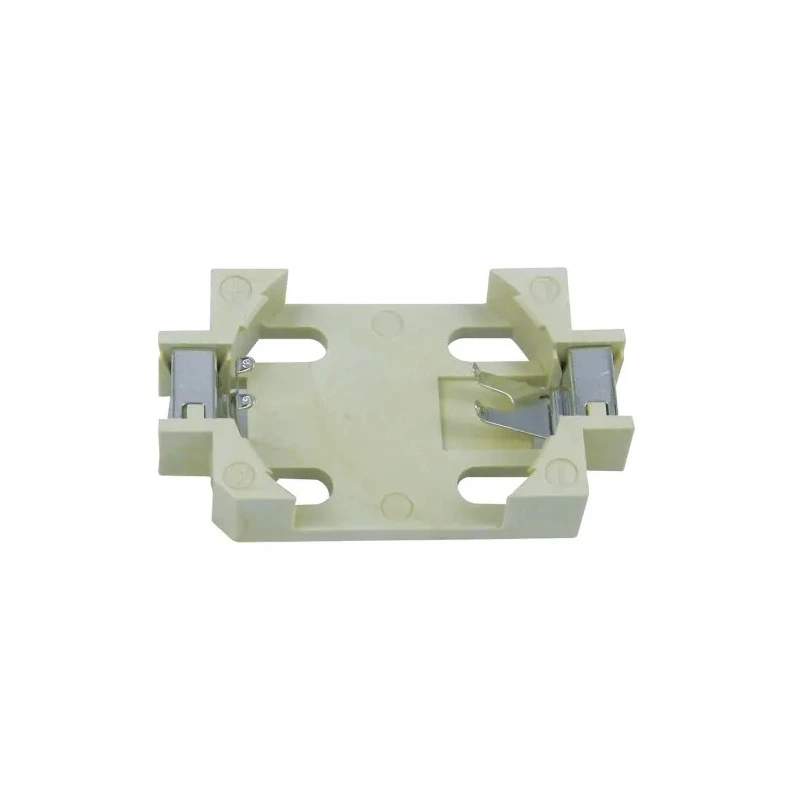

RS PRO CR2032 surface mount battery holder is engineered for reliable mounting on printed circuit boards (PCB) and designed to accommodate a single CR2032 lithium coin cell battery. It features a robust glass filled liquid crystal polymer (LCP) body reinforced with 30% glass fiber, ensuring mechanical strength and thermal stability during operation. With compact dimensions of 28.4mm length, 16mm width, 5.5mm height, and 20mm diameter, the holder fits precisely onto standard PCBs without occupying excessive space.

The holder's contact electrodes are made from phosphor bronze, with a 0.25mm thickness and a gold plating thickness of one micron over five microns of nickel. This configuration guarantees excellent electrical conductivity, reliability, and resistance to wear. The termination is via a surface mount type, facilitating efficient assembly and soldering on electronic boards.

Designed for industrial and electronic device applications, this battery holder operates safely at voltages up to 500V AC/DC and supports currents up to 3A, meeting demanding power requirements. It performs reliably within an operating temperature range spanning from -55°C to 85°C, allowing use in harsh environments. The tin plating over nickel further protects the holder from corrosion, while the specified humidity rating of 40°C ensures functionality in typical ambient conditions.

This battery holder is ideal for use in electronic components, power connectors, Battery Holders, and charger accessories within industrial, laboratory, automotive, and consumer electronics sectors. The RS PRO series guarantees quality and standard compliance, bolstered by UL 94V0 certification for material safety. Its design and materials make it suitable for use in circuit boards requiring secure battery connections.

Constructed from durable glass filled liquid crystal polymer reinforced with glass fiber. Contacts feature gold-plated phosphor bronze electrodes for high conductivity. Compact and precise dimensions suitable for PCB mounting applications.

Rated for 500V AC/DC voltage and 3A current, suitable for various electronic devices. Wide operating temperature range from -55°C to 85°C for versatile environments. Tin over nickel plating enhances corrosion resistance and longevity.

Humidity rating of 40°C supports typical ambient operating conditions. UL 94V0 certification for flame retardant properties ensures safety compliance.

Choose this RS PRO CR2032 battery holder to ensure a secure, high-performance, and reliable power connection for your electronic and industrial applications. Browse the Electronics & Electricals category on EnvMart for more battery holder and connector products.
