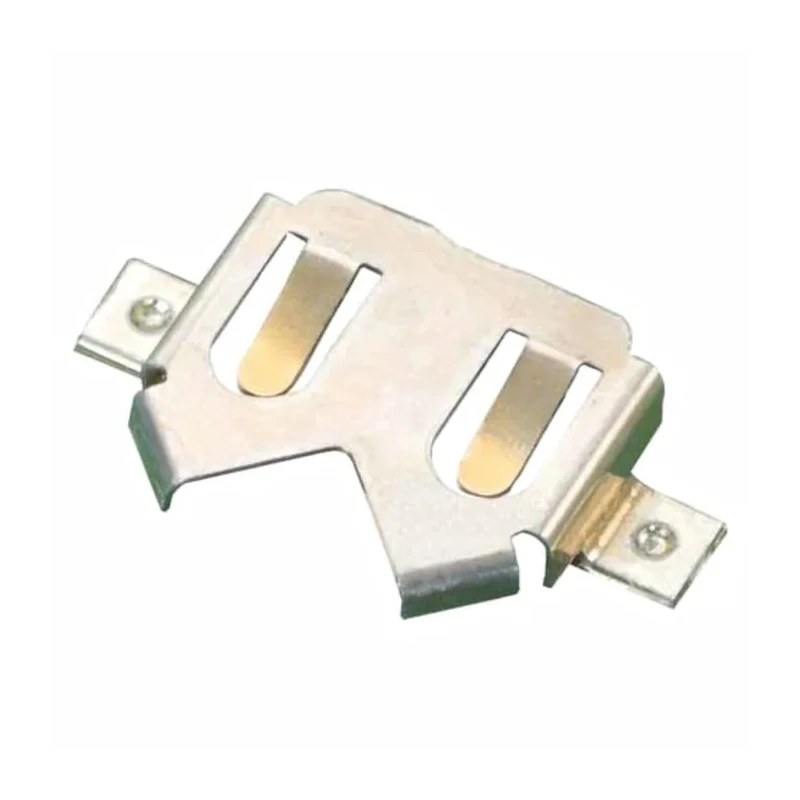

HARWIN CR1225, CR1216 Battery Holder PCB Mount, Solder Tag, Tinned Copper, Polyvinyl Chloride Insulation S8201-46R
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 12.5mm |
| Brand | HARWIN |
| Body Material | Tinned Copper with Polyvinyl Chloride Insulation |
| Height | 3.2mm |
| Length | 13.2mm |
| Model | S8201-46R |
| Width | 11.8mm |
| Mount Type | PCB |
| Series | S8201 |
| Number of Cells | 1 |
| Termination Type | Solder Tag |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR1225, CR1216 |
Key Features
- Supports CR1225 and CR1216 coin cell batteries for compact power solutions.
- PCB mountable design with solder tag termination for secure electrical connection.
- Constructed from tinned copper with polyvinyl chloride insulation for reliable conductivity and durability.
- Features a low-profile form factor suitable for space-constrained electronic modules.
- Accommodates a single coin cell battery with diameter up to 12.5mm.
- Ideal for electronics, battery-powered instrumentation and embedded applications.
Product Description
The HARWIN S8201-46R Battery Holder is a precision-engineered accessory for mounting CR1225 and CR1216 coin cell batteries. Its design enables straightforward integration into electronic circuit boards thanks to a PCB mountable form with solder tag termination. The holder is crafted using tinned copper, ensuring optimal conductivity, and features polyvinyl chloride insulation for enhanced safety and performance in demanding environments.
This holder supports a single cell, accommodating coin cells with a diameter of 12.5mm, and maintains a low profile at only 3.2mm in height, making it highly suitable for compact modules and space-limited designs. Its length is 13.2mm and width 11.8mm, providing easy and accurate placement during assembly.
Solder-tag termination offers a secure and stable connection, which is crucial for battery reliability in industrial, laboratory, and commercial electronics. The holder is widely used in applications such as embedded systems, portable measurement devices, sensor circuits, clocks, and memory backup modules.
Designed for long-term durability, the combination of tinned copper and PVC insulation shields the cell and provides resistance to corrosion and mechanical stress. The S8201-46R is particularly effective in environments where vibration, heat, or repetitive maintenance cycles occur.
Installation is straightforward, requiring minimal tools and supporting robust electrical contact for coin cell batteries. The compact size and professional construction ensure a secure fit and reliable battery retention throughout product lifecycle.
HARWIN battery holders are recognized for quality and reliability in electronics manufacturing, making this model an excellent choice for engineers and designers seeking dependable coin cell battery housing. Explore the complete range of Battery Holders for further technical solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports CR1225 and CR1216 coin cell batteries, accommodating a diameter of up to 12.5mm.
It is constructed from tinned copper with polyvinyl chloride insulation, ensuring reliable conductivity and protection.
The height of this battery holder is 3.2mm, making it suitable for compact electronic modules.
This holder features a PCB mount design with solder tag termination for secure electrical connections.
The battery holder has a length of 13.2mm and a width of 11.8mm, facilitating easy placement during assembly.
It is designed to hold a single coin cell battery, providing a compact solution for power needs.
It is widely used in embedded systems, portable measurement devices, sensor circuits, clocks, and memory backup modules.
The termination type is solder tag, which ensures a stable and secure connection for the battery.
The HARWIN S8201-46R battery holder is manufactured in the United Kingdom.
This model belongs to the S8201 series, which includes various battery holders designed for specific applications.
It features polyvinyl chloride (PVC) insulation, which enhances safety and performance in various environments.
Yes, installation is straightforward and requires minimal tools, supporting robust electrical contact for the battery.
