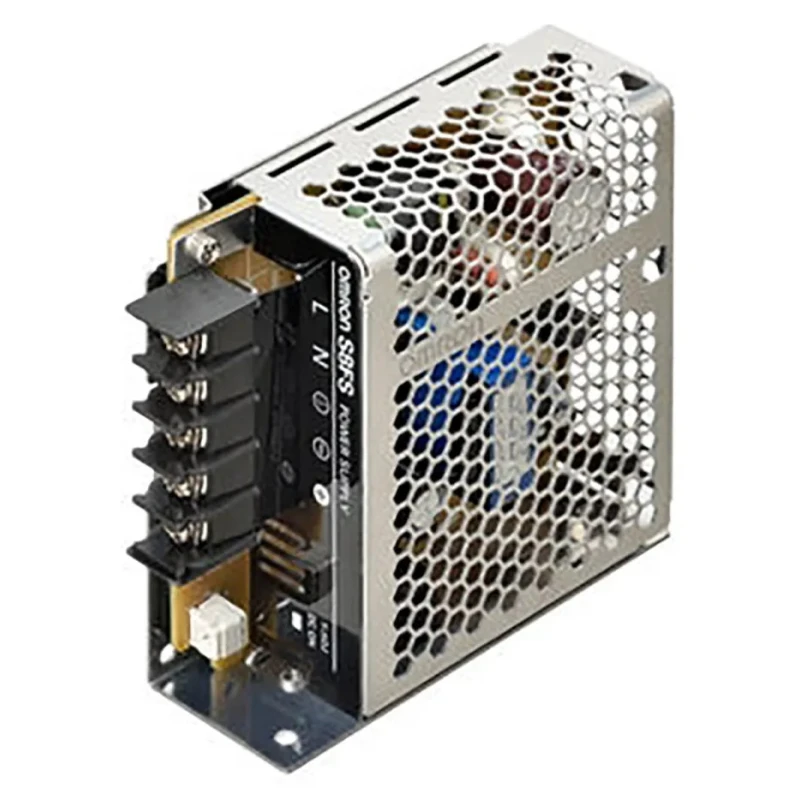

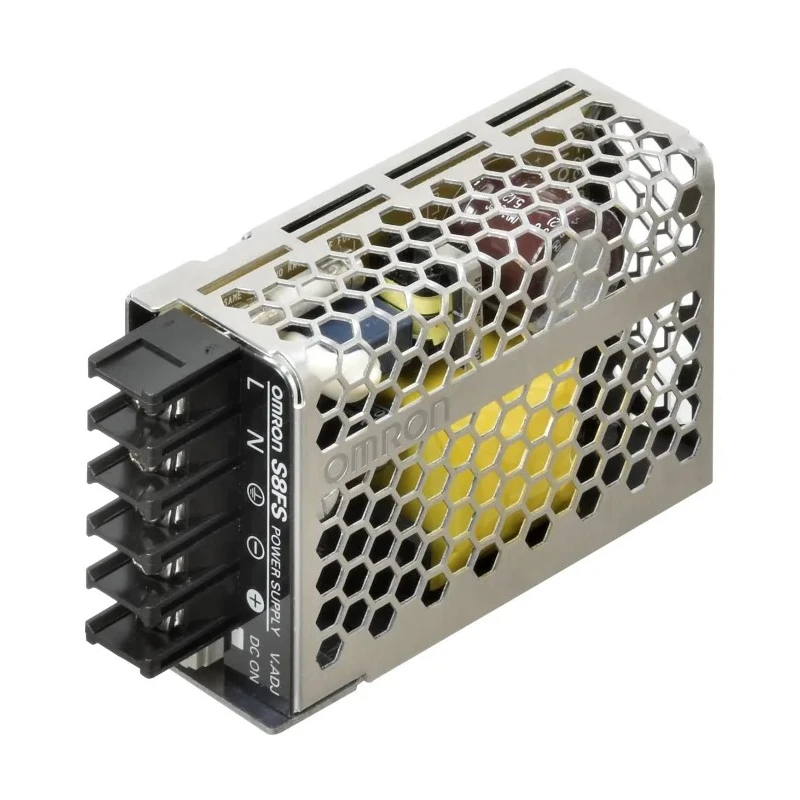

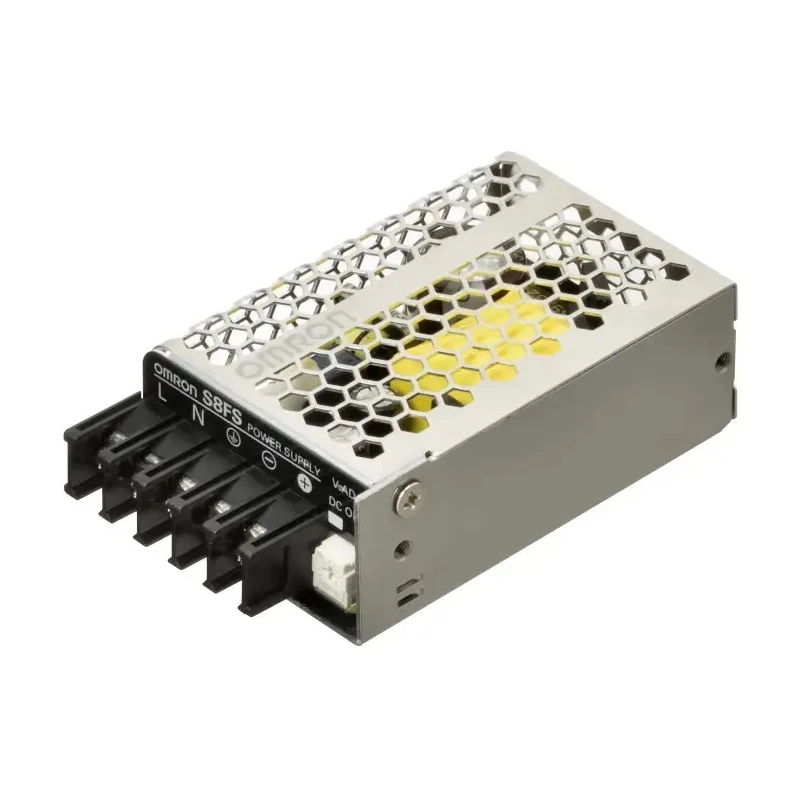

Omron Switched Mode DIN Rail Power Supply, 370V DC, 264V AC Input, 5V DC 3A Output, 15W S8FS-C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Power | 15W |
| Efficiency | 82% |
| Storage Temperature | -40°C to 85°C |
| Height | 28mm |
| Model | S8FS-C |
| Depth | 92mm |
| Width | 51mm |
| Series | S8FS-C |
| Output Current | 3A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | GB4943, CE (all models), GB9254, CCC (15 to 150-W models), UL 60950-1, EN 55011 Class B, EN 60950-1, EN 61000-3-2, CSA C22.2 No60950-1, EN 61204-3, GB17625.1, UL (all models) |
| Maximum Output Voltage | 5V dc |
| Minimum Input Voltage | 85V ac |
| Life Expectancy | 10 years |
Key Features
- Supports AC/DC input voltages up to 370V DC and 264V AC for flexible installation.
- Provides stable 5V DC output at 3A and 15W rated power for electronic devices.
- Switched mode operation ensures high efficiency and abnormal over-voltage resistance.
- Designed for DIN rail mounting with forward-facing terminal blocks for easy wiring.
- Features overload and overvoltage protection as well as natural air cooling.
- Quality electrolytic capacitors offer extended lifespan and surge protection.
- CE, UL and multiple international standards compliant, suitable for diverse industrial environments.
Product Description
Omron S8FS-C01505J is a robust switched mode DIN Rail Power Supply engineered for dependable performance in control panels, automation equipment, and industrial electronics. This model supports a wide AC/DC input voltage range, up to 370V DC and 264V AC, ensuring compatibility across varied applications. With a 15W output, it delivers a precise 5V DC supply at 3A, ideal for powering microcontrollers, sensors, relays, or other low voltage devices.
The switched mode design maximizes energy efficiency, reduces heat generation, and provides enhanced abnormal over-voltage resistance. Built-in lightning surge protection and quality electrolytic capacitors extend reliability and service life. The unit is quick and simple to install on standard DIN rails, with forward-facing terminal blocks facilitating convenient connection and wire management.
Extensive protective features include green output indicator, overload protection, and overvoltage safeguards. The device is naturally cooled, without the need for forced cooling or additional fans. Compliance with CE, UL, GB4943, CCC, EN55011 Class B, EN60950-1, EN61000-3-2 and other international standards guarantees suitability for rigorous industrial, laboratory, and commercial settings.
Operates with a minimum input voltage of 85V AC and withstands temperatures from -20°C up to 60°C. Compact physical dimensions (height 28mm, width 51mm, depth 92mm) ensure seamless incorporation into space-constrained enclosures. The S8FS-C01505J is part of Omron's reliable S8FS-C series, known for its stable operation, cost-effectiveness, and extended working life under demanding conditions.
Typical applications include industrial automation, control panels, PLC systems, building management systems, laboratory equipment, and process instrumentation. Easy DIN rail mounting brackets (available separately) expand installation flexibility.
Browse more DIN rail power supplies from Omron and related brands in the Electronics & Electricals category for a wide range of power distribution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable output of 5V DC at 3A, with a total rated power of 15W.
This unit supports an input voltage range of up to 370V DC and 264V AC, with a minimum input voltage of 85V AC.
The dimensions are 28mm in height, 51mm in width, and 92mm in depth.
It operates within a temperature range of -20°C to 60°C.
It is designed for DIN rail mounting, featuring forward-facing terminal blocks for easy wiring.
This unit includes overload protection, overvoltage protection, and is naturally cooled without the need for fans.
It has an efficiency rating of 82%.
It complies with several standards including CE, UL, GB4943, and EN55011 Class B.
Typical applications include industrial automation, control panels, PLC systems, and laboratory equipment.
This model is part of the S8FS-C series from Omron.
It is classified as a switched mode power supply.
