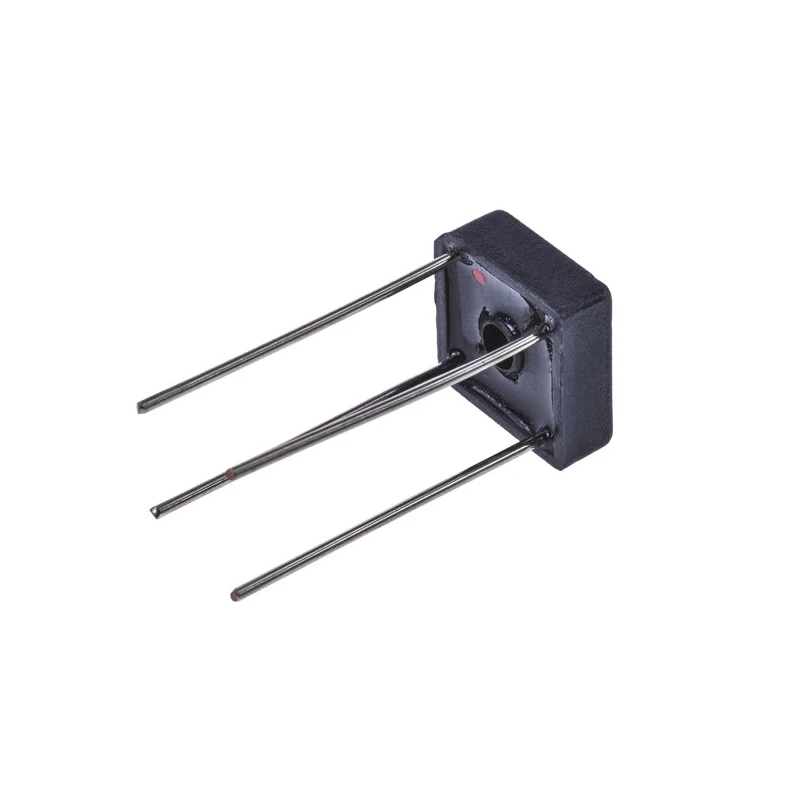

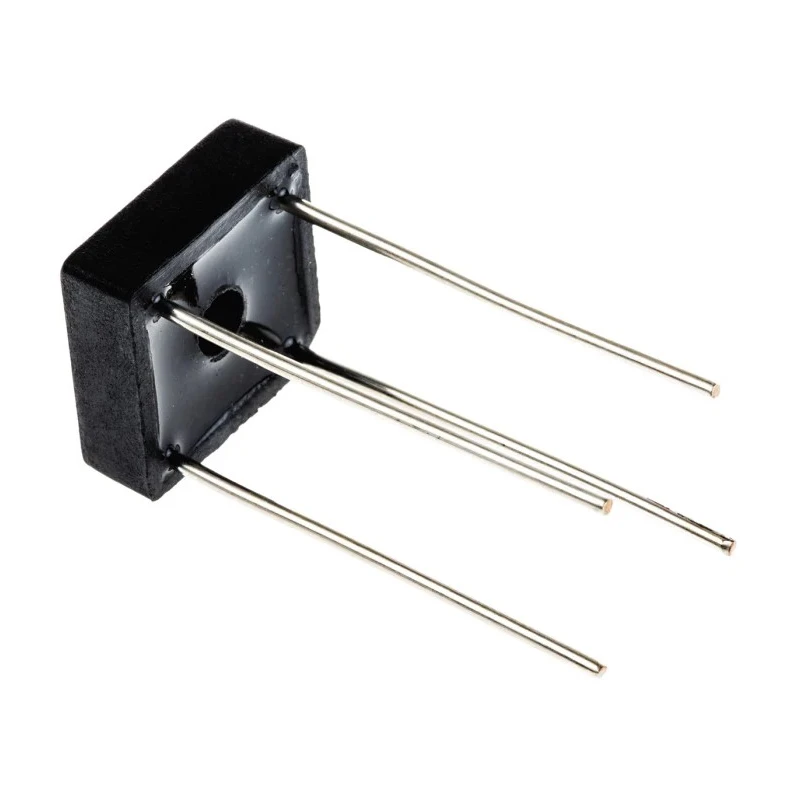

Vishay Bridge Rectifier 400 V 137 A 4-Pin Single VS-KBPC804
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5.33mm |
| Length | 15.75mm |
| Model | VS-KBPC804 |
| Width | 15.75mm |
| Mount Type | Through Hole |
| Series | VS-KBPC8 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-72 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 100mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 137A |
| Forward Current If | 8A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Supports through-hole mounting for easy PCB installation.
- Operates reliably in temperatures ranging from -55°C to 150°C.
- Features a D-72 package type with dimensions 15.75mm x 15.75mm x 5.33mm.
- Delivers a forward current of 8 A with a peak forward voltage of 1 V.
- Single-phase configuration designed for full-wave rectification applications.
- Low peak reverse current of 100 mA ensures efficient performance.
- Compact construction suitable for PCB or chassis mounting.
- Manufactured in India ensuring quality and reliability.
Product Description
Vishay VS-KBPC804 Bridge Rectifier is a discrete semiconductor designed for efficient full-wave rectification in electronic circuits. This single-phase, 4-pin single bridge rectifier converts alternating current (AC) to direct current (DC) by providing the same polarity output regardless of input polarity. It supports through-hole mounting, making it suitable for PCB and chassis installations in various industrial and electronic applications.
Boasting a peak reverse repetitive voltage of 400 V and a peak non-repetitive forward surge current of 137 A, this rectifier ensures high reliability under demanding electrical conditions. Its forward current rating of 8 A, combined with a low peak forward voltage of 1 V, results in efficient power handling and energy conversion.
The compact D-72 package, with dimensions 15.75 mm in length and width and 5.33 mm in height, allows for space-saving circuit designs. Its wide operating temperature range from -55°C to 150°C enables use in harsh and variable environments commonly found in industrial, manufacturing, and electronic equipment settings.
Vishay's VS-KBPC8 series, to which this model belongs, is recognized for its sturdy construction, wire lead structure, and minimal size, promoting high thermal performance and reliability. The device is ideal for applications including industrial power supplies, electronic instrumentations, control systems, and automotive electronics that require efficient and compact rectification solutions.
Supports through-hole mounting for easy PCB installation. Operates reliably in temperatures ranging from -55°C to 150°C. Features a D-72 package type with dimensions 15.75mm x 15.75mm x 5.33mm. Delivers a forward current of 8 A with a peak forward voltage of 1 V.
Single-phase configuration designed for full-wave rectification applications. Low peak reverse current of 100 mA ensures efficient performance. Compact construction suitable for PCB or chassis mounting. Manufactured in India ensuring quality and reliability.
Explore the Vishay Bridge Rectifier series in EnvMart for reliable semiconductor components tailored for electronic projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 400 V.
It has a forward current rating of 8 A.
The D-72 package type measures 15.75 mm in length, 15.75 mm in width, and 5.33 mm in height.
The operating temperature range for the VS-KBPC804 is from -55°C to 150°C.
The peak forward voltage is 1 V.
This model supports through-hole mounting, making it suitable for PCB installations.
The peak non-repetitive forward surge current rating is 137 A.
This rectifier has a total of 4 pins.
The configuration of the VS-KBPC804 is single-phase, designed for full-wave rectification applications.
The peak reverse current is 100 mA.
It is manufactured in India.
This model is suitable for industrial power supplies, electronic instrumentation, control systems, and automotive electronics.
