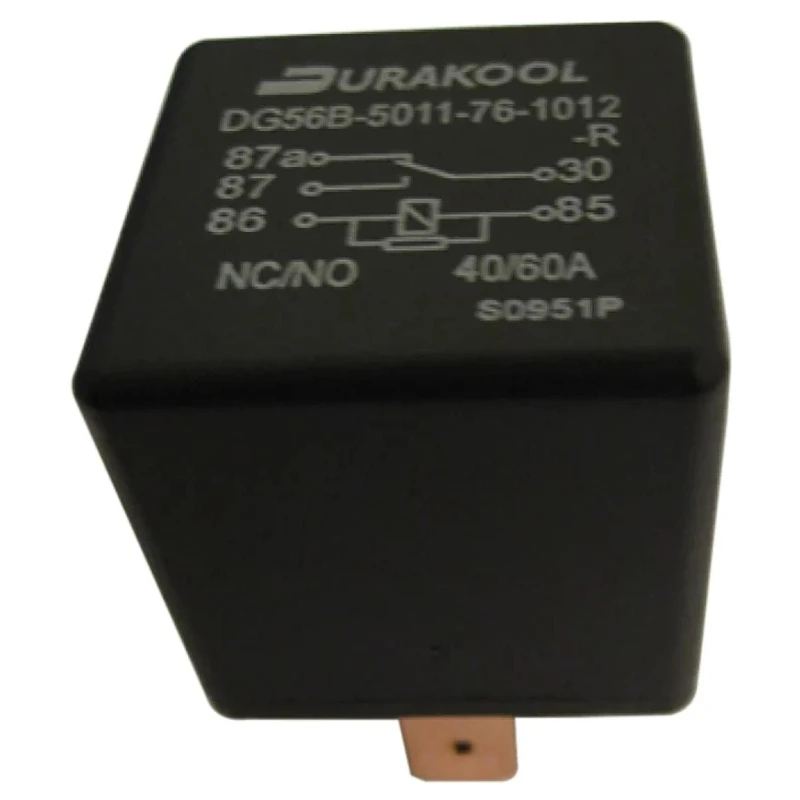

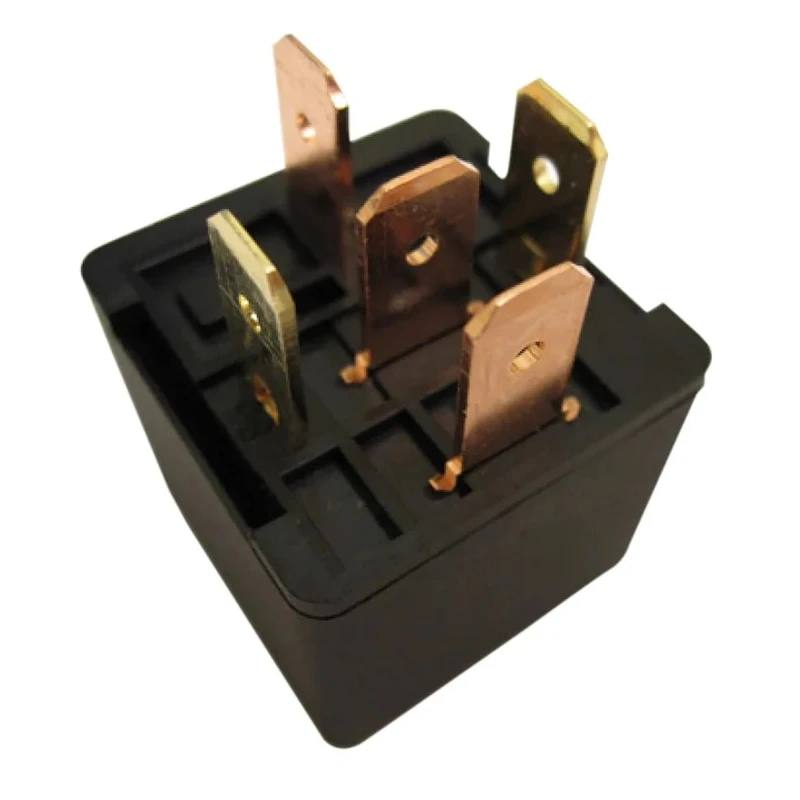

Durakool PCB Automotive Relay 12V dc Coil Voltage 40A Switching Current SPDT DG56A-7011-76-1012-DR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 23.7mm |
| Length | 26.2mm |
| Model | DG56A-7011-76-1012-DR |
| Depth | 26.2mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG56 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 85Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- General purpose miniature automotive relay designed for high durability.
- Features high resistance to inrush current ensuring stable performance.
- Supports a continuous DC current capacity of 40A suitable for heavy load control.
- Compact industry standard size and footprint enables easy mounting on PCB.
- Silver tin oxide and indium oxide contact material offers superior conductivity and longevity.
- Quick connect terminal type allows efficient installation and maintenance.
- Operates reliably in extreme temperatures ranging from -40°C to 125°C.
- High coil resistance of 85Ω and coil power of 1.8W ensure energy efficient operation.
Product Description
Durakool DG56A-7011-76-1012-DR PCB automotive relay is designed for use in automotive electrical systems requiring reliable switching capability. Featuring a 12V DC coil voltage and a 40A switching current, this SPDT relay supports various DC motor control and power switching applications in vehicles.
This relay belongs to the DG56 series, known for its high resistance to inrush current and extended lifecycle. The construction includes silver tin oxide and indium oxide contacts that provide excellent electrical performance and durability under demanding automotive environments.
With a coil resistance of 85 ohms and coil power of 1.8 watts, the unit achieves efficient power consumption while maintaining stable function. The product is designed for PCB mounting with quick connect terminals for fast installation.
Operating temperature range from -40°C to 125°C ensures suitability across a wide variety of climatic conditions encountered in automotive and industrial settings. The isolation voltage between coil and contacts is rated at 500Vrms, offering strong safety and electrical insulation.
This automotive relay is compliant with industry standards and provides a compact footprint measuring 26.2mm in length and depth, and 23.7mm in height. Made in China, it serves as a versatile solution for automotive and related electrical control applications.
General purpose miniature automotive relay designed for high durability. Features high resistance to inrush current ensuring stable performance. Supports a continuous DC current capacity of 40A suitable for heavy load control.
Compact industry standard size and footprint enables easy mounting on PCB. Silver tin oxide and indium oxide contact material offers superior conductivity and longevity. Quick connect terminal type allows efficient installation and maintenance.
Operates reliably in extreme temperatures ranging from -40°C to 125°C. High coil resistance of 85Ω and coil power of 1.8W ensure energy efficient operation. Isolation coil to contact voltage rating of 500Vrms provides strong electrical isolation.
This Durakool automotive relay is ideal for industrial, automotive, electrical control, and manufacturing applications requiring reliable switching devices. It is a dependable component for use in automotive control systems and PCB assemblies.
Browse more Automotive Relays and electrical components in EnvMart’s Electronics & Electricals category for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this automotive relay is 40A, suitable for heavy load control applications.
The coil voltage of this model is 12V DC, which is standard for automotive applications.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range for this model is from -40°C to 125°C, making it suitable for various climatic conditions.
The isolation voltage between the coil and contacts is rated at 500Vrms, providing strong electrical insulation.
The contacts are made from silver tin oxide and indium oxide, which offer superior conductivity and longevity.
The coil resistance of this relay is 85Ω, which contributes to its energy-efficient operation.
The coil power consumption is 1.8W, ensuring efficient energy use during operation.
This model is designed for PCB mounting, facilitating easy installation in electronic assemblies.
The dimensions of this relay are 26.2mm in length and depth, and 23.7mm in height.
This relay belongs to the DG56 series, known for its high resistance to inrush current and extended lifecycle.
