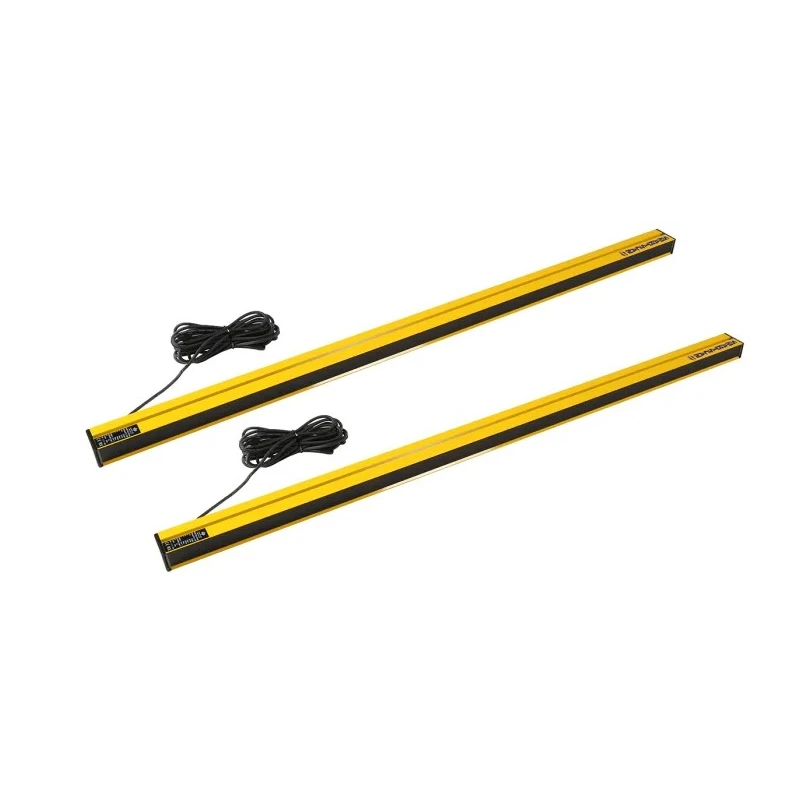

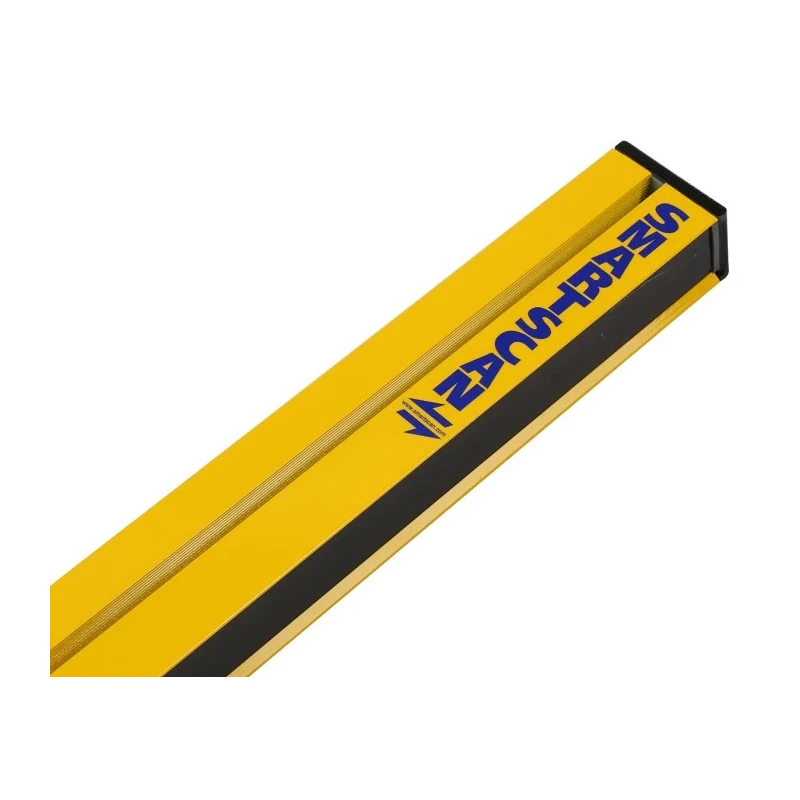

Smartscan 1K3 Series Light Curtain Receiver, Transmitter, 36 Beams, 30 mm Resolution 1K3-108
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Smartscan |
| Height | 940mm |
| Length | 41mm |
| Model | 1K3-108 |
| Number of Beams | 36 |
| Width | 28mm |
| Series | 1K3 |
| Terminal type | Cable |
| Component Type | Receiver, Transmitter |
| Standards/Approvals | d |
| Maximum Supply Voltage | 24V dc |
| Safety Type | Type 3 |
| Protective Height | 930mm |
| Maximum Protective Width | 5m |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 5m |
| Maximum Response Time | 40ms |
| Beam Resolution | 30mm |
| Safety,light,curtain,1000,30odc x920mm,36 beams,0.5-5m rangeBrand | Smartscan |
Key Features
- The system performs continuous self-testing with no need for a test input.
- Equipped with dual channel, fail-safe electronic outputs for enhanced safety.
- No range setting required, allowing simple installation and alignment.
- Waterproof enclosures suitable for various industrial environments.
- Flexible mounting options with diagnostic indicators for easy setup.
- Maximum scanning distance from 0.5 m to 5 m with a maximum response time of 40 ms.
- Includes both receiver and transmitter units with 2 x 5 m connecting cables.
- Compliant with safety standards including BS EN 61496-1 type 2 and EN ISO 13849 PL d.
Product Description
Smartscan 1K3-108 is a high-performance light curtain receiver and transmitter set featuring 36 beams at 30 mm resolution. Designed for industrial safety applications, this system provides advanced safety integrity with continuous self-testing capabilities. Its dual channel, fail-safe electronic outputs are control reliable, continuously monitored, and short circuit proof.
The 1K3 series light curtain offers simple installation and alignment with diagnostic indicators, eliminating the need for range setting or test inputs. It comes with waterproof enclosures and flexible mounting options, suitable for diverse industrial environments such as automation, robotics, packaging, injection moulding, transfer lines, automated warehouses, and electronic assembly lines.
This light curtain operates at a maximum scanning distance of 5 meters and a minimum of 0.5 meters, with a protective height of 930 mm and width up to 5 meters. The unit responds within 40 milliseconds, ensuring fast and reliable safety detection.
The product is certified to multiple standards including BS EN 61496-1 Type 2, BS IEC 61496-2 Type 2, EN 62061 SIL 2, and EN ISO 13849 PL d, with an IP65-rated enclosure. The set contains a receiver, transmitter, and two 5-meter connecting cables for quick deployment.
The system’s continuous self-testing automatically de-energizes output upon fault detection. Dual channel outputs provide fail-safe protection for high safety integrity. No need for separate test input reduces wiring complexity.
Applications cover robotics, packaging, textile machinery, bottling, filling, and special purpose equipment. Manufactured in the United Kingdom ensuring quality and durability. Explore EnvMart’s comprehensive range of Safety Light Curtains and industrial automation sensors for enhanced workplace safety and productivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a minimum scanning distance of 0.5 meters and a maximum scanning distance of 5 meters.
The 1K3-108 light curtain features 36 beams, providing a resolution of 30 mm.
The maximum response time for this unit is 40 milliseconds, ensuring quick detection of safety breaches.
The dimensions of this model are 940 mm in height, 41 mm in length, and 28 mm in width.
It is compliant with several safety standards, including BS EN 61496-1 Type 2, BS IEC 61496-2 Type 2, EN 62061 SIL 2, and EN ISO 13849 PL d.
The unit features dual channel, fail-safe electronic outputs that are continuously monitored and short circuit proof for enhanced safety.
The protective height of this model is 930 mm, making it suitable for various applications.
This light curtain offers flexible mounting options and includes diagnostic indicators for easy setup and alignment.
The maximum supply voltage for this light curtain is 24V DC.

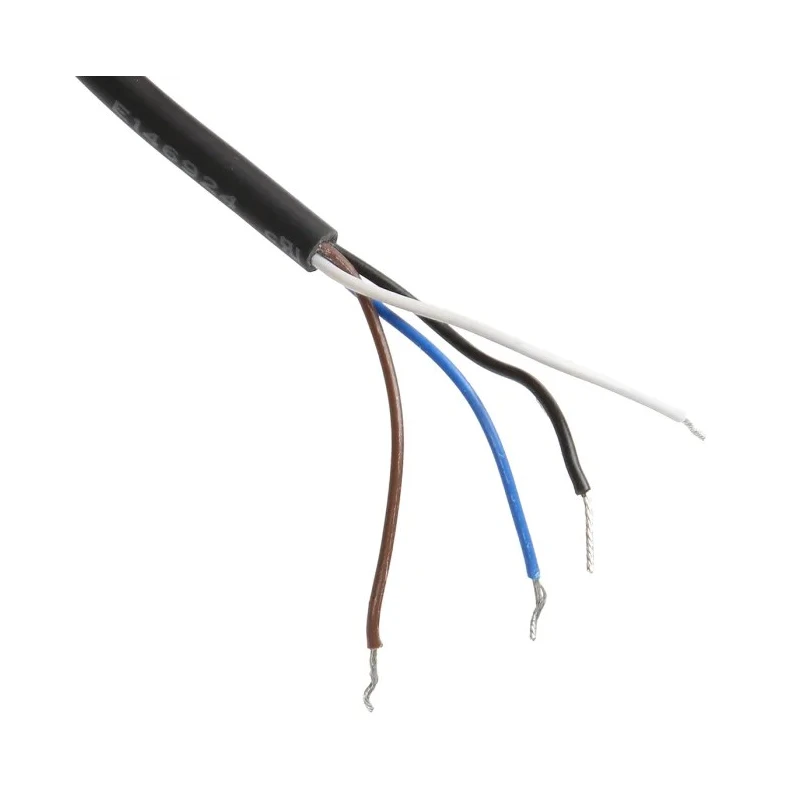

The set includes both the receiver and transmitter units, along with two 5-meter connecting cables for quick deployment.
This model is suitable for diverse industrial environments, including automation, robotics, packaging, and electronic assembly lines.
The Smartscan 1K3-108 is manufactured in the United Kingdom.
