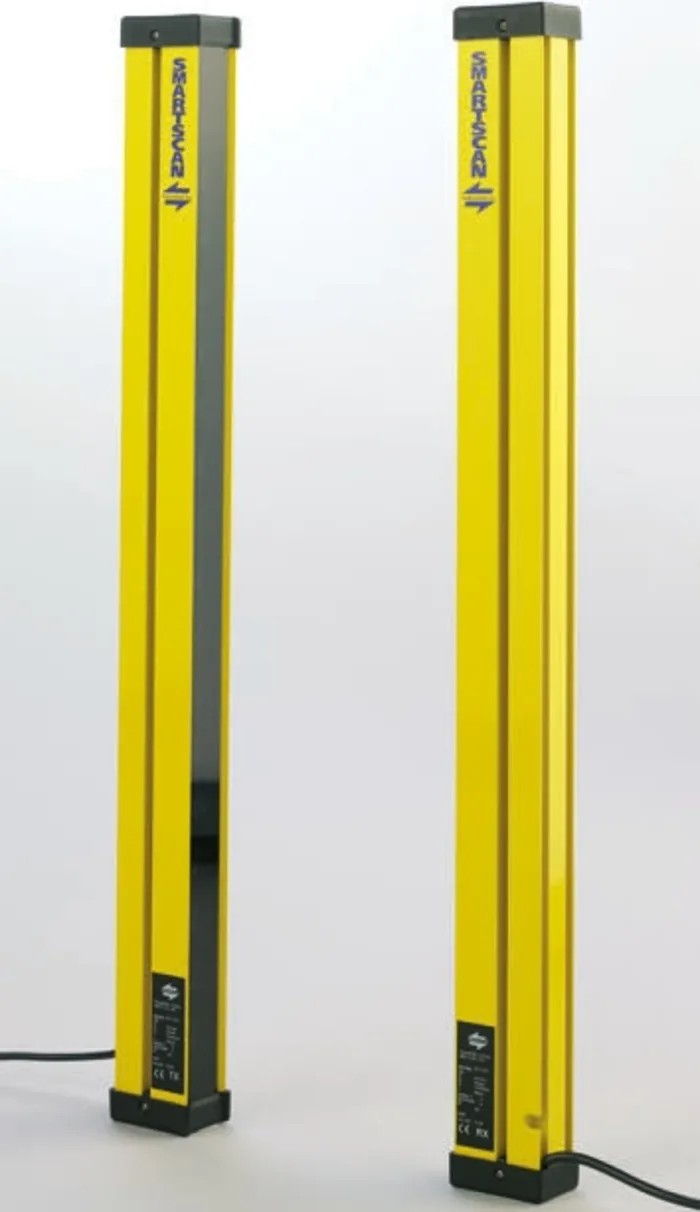

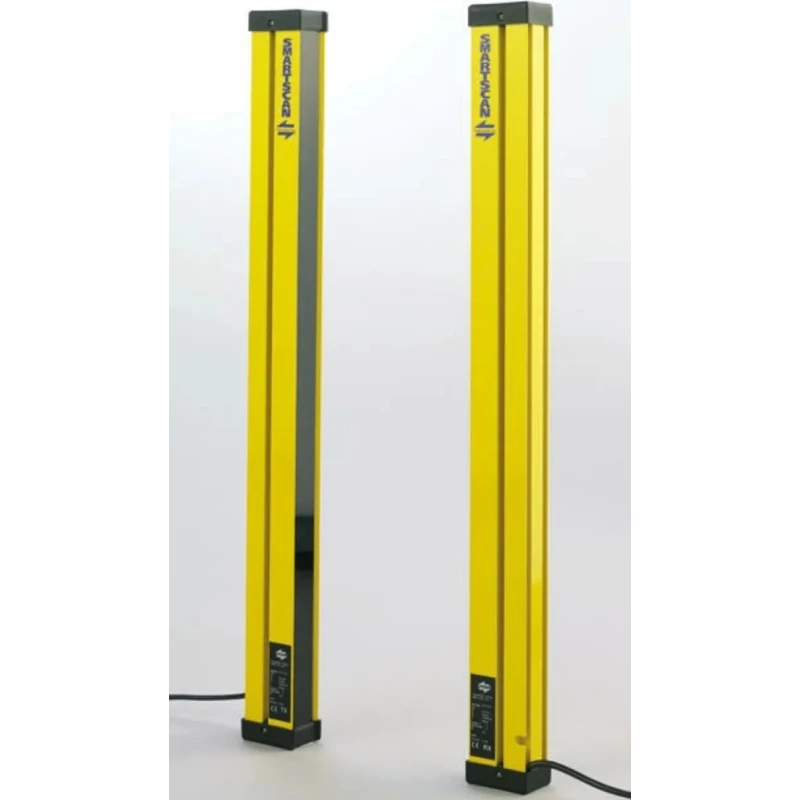

Smartscan 1K3 Series Light Curtain Receiver and Sender Type 3 Safety, 2 Beams, 550mm Protective Height, 4-10m 1K3-122

Smartscan 1K3-122 light curtain receiver and sender set is a high-performance safety device designed to protect personnel around hazardous machinery by creating a non-contact sensing perimeter. This Type 3 safety light curtain system includes both the receiver and sender, each equipped with a robust waterproof enclosure suitable for use in industrial and manufacturing environments.

The system features 2 beams with a protective height of 550mm, ideal for body detection and access control around robotic work cells or dangerous machinery. Installation is straightforward with diagnostic indicators for easy alignment and no need for range adjustments. The system continuously self-tests, eliminating the need for external test inputs, enhancing operational safety and reliability.

With a minimum scanning distance of 4 meters and a maximum scanning distance of 10 meters, the 1K3-122 light curtain offers flexible placement options to suit varied industrial layouts. The device’s fail-safe dual channel electronic outputs conform to strict international safety standards, including EN61496-1 Type 2 and IEC 61496-2 Type 2, meeting safety classification category 3 according to EN954-1.

Compact in size, the units measure 41mm in length, 640mm in height, and 28mm in width, allowing installation in tight spaces while maintaining high performance. Its maximum response time of 40 milliseconds ensures quick reaction to any intrusion, contributing to enhanced workplace safety.

This light curtain is frequently used in environments such as manufacturing plants, robotics workstations, packaging lines, and any application requiring reliable perimeter guarding and access control. Pairing ease of installation and advanced safety features, the Smartscan 1K3 series is a preferred choice for industrial automation safety solutions.

Designed for perimeter and access protection in industrial settings. Includes receiver and sender with 2 x 5m cables for connection. 550mm protective height suitable for body detection applications. Flexible scanning distance ranging from 4 to 10 meters.

Fail-safe dual channel outputs with continuous self-testing. Waterproof housing enables usage in harsh environments. Complies with EN and IEC safety standards, Category 3 certified. Compact dimensions allow easy integration on machinery.

Fast response time of 40 milliseconds enhances safety. Applications include robotics, manufacturing, and access control. Explore more Safety Light Curtains and industrial safety devices at EnvMart to ensure worker protection and compliance with safety standards.
