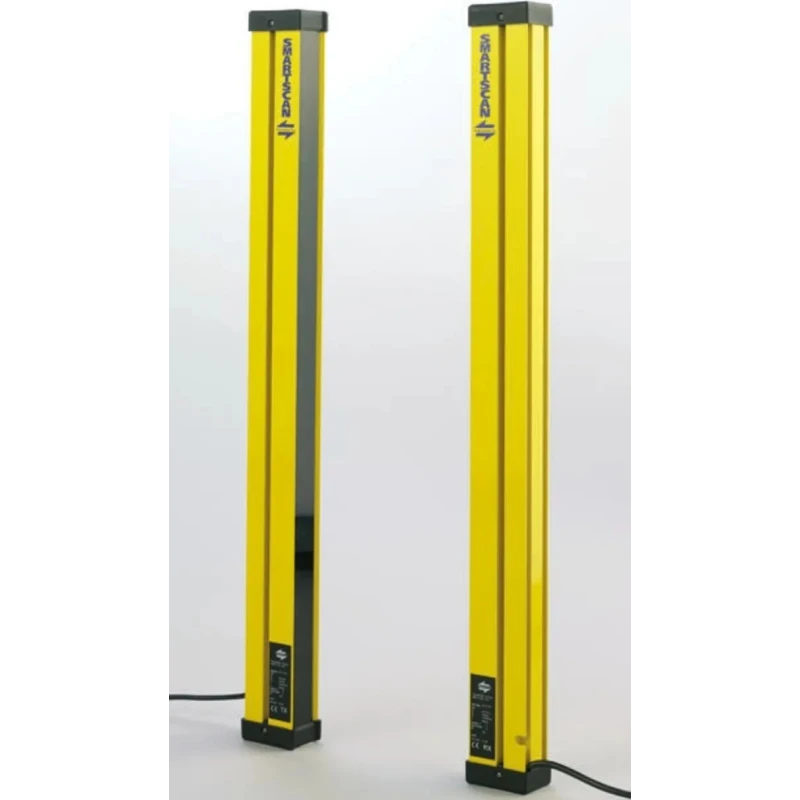

Smartscan 1K3 Series Light Curtain Receiver and Sender, 60 Beams, 40 mm Resolution, 24V DC, Type 2 Safety 1K3-117

Smartscan 1K3-117 is a high-performance light curtain system comprising both receiver and sender components. It features 60 infrared beams spaced at 40 mm resolution, providing protective coverage of 1.54 meters in height while supporting a maximum protective width of 10 meters. Operating at 24V DC, it is designed for Type 2 safety applications.

This device incorporates an advanced continuously self-testing mechanism that eliminates the need for a separate test input. The system de-energizes output upon fault detection, ensuring high safety integrity. Dual channel fail-safe electronic outputs are short circuit proof, providing reliable control in industrial environments.

Robust waterproof enclosures and flexible mounting options enhance its suitability for various industrial installations. Its scanning range from 4 to 10 meters and a maximum response time of 40 milliseconds enable precise and timely detection to protect personnel and equipment.

Typical applications include robot safety, packaging lines, special purpose machinery, injection molding operations, transfer lines, automated warehouses, textile manufacturing, and electronic component assembly lines. It is also suitable for bottling and filling machinery safety setups.

The product adheres to important safety standards including BS EN 61496-1 type 2, BS IEC 61496-2 type 2, EN 62061 SIL 2, and EN ISO 13849 PL d. Manufactured in the United Kingdom, this light curtain ensures compliance and reliability.

Continuously self-testing system with no separate test input required. Dual channel, fail-safe electronic outputs provide enhanced safety. Waterproof enclosures suitable for harsh industrial environments. Flexible mounting options for ease of installation.

Protection height of 1.54 meters and maximum protective width of 10 meters. Scanning distance adjustable from 4 to 10 meters with a 40 ms response time. Explore more Industrial Safety Light Curtains and Automation & Control Gear products to enhance operational safety and efficiency.
