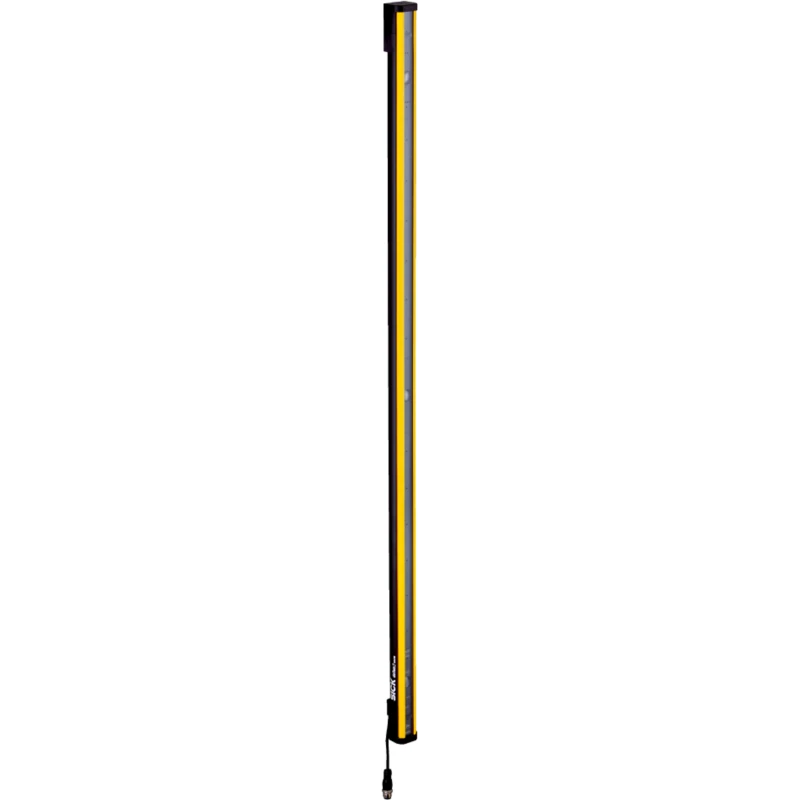

SICK deTem2 Core Series Light Curtain Sender Type 2 Safety, 3 Beams, 400 mm Resolution
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Height | 31mm |
| Length | 972mm |
| Model | deTem2 |
| Number of Beams | 3 |
| Width | 34mm |
| Series | deTem2 Core |
| Terminal type | 5-Pin M12 |
| Component Type | Sender |
| Standards/Approvals | PL c |
| Maximum Supply Voltage | 28.8V dc |
| Safety Type | Type 2 (Iec 61496-1) |
| Maximum Protective Width | 17m |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 17m |
| Maximum Response Time | 20000μs |
| Beam Resolution | 400mm |
| Smart Sensor | diagnostic data via IO-Link or NFC and the SICK Safety Assistant app |
Key Features
- The device has a compact housing with integrated alignment aid using status LEDs.
- Supports a maximum protective width of 17 meters and scanning distances from 0.5 to 17 meters.
- Equipped with smart sensor diagnostic data accessible via IO-Link or NFC and the SICK Safety Assistant app.
- Designed for harsh industrial environments with variants suitable for explosion-hazardous areas and IP69K enclosure rating.
- Supports quick commissioning and configuration without the need for software.
- Includes a 5-pin M12 terminal type connection.
- Has a maximum response time of 20000 microseconds ensuring reliable safety monitoring.
Product Description
SICK M2C-SA0340LA10 deTem2 Core Series Light Curtain Sender is a Type 2 safety light curtain component designed for industrial automation and safety applications. It features 3 beams with a 400 mm beam resolution, making it suitable for access protection and entry/exit monitoring with muting capabilities in automated machinery and conveyor systems.
This light curtain sender has a compact housing measuring 972 mm in length, 34 mm in width, and 31 mm in height. The integrated alignment aid with status LEDs allows for straightforward alignment directly on the device, improving installation efficiency.
The device supports a maximum protective width of 17 meters and can scan distances ranging from a minimum of 0.5 meters up to 17 meters, enabling versatile safety coverage for various machine layouts. It is powered via a 28.8 V dc supply and uses a 5-pin M12 terminal connection.
The smart sensor functionality provides diagnostic data accessible through IO-Link or NFC technologies and the specialized SICK Safety Assistant app for enhanced device management and maintenance. The maximum response time of 20000 microseconds ensures timely safety interlock operations.
Built to withstand demanding industrial conditions, the deTem2 Core series offers variants for explosion-hazardous environments and IP69K ingress protection. These features ensure high reliability and machine availability in sectors such as manufacturing, material handling, and automotive assembly.
Applications include access protection on automated material transport systems, press lines, roller conveyors, pallet handling machinery, and safety monitoring in metal processing plants.
The device has a compact housing with integrated alignment aid and status LEDs. Supports a maximum protective width of 17 meters and scanning distances between 0.5 to 17 meters. Equipped with smart sensor diagnostics via IO-Link or NFC and the SICK Safety Assistant app.
Designed for harsh environments with explosion-hazard and IP69K protection variants. Enables quick commissioning and configuration without software. Features a 5-pin M12 terminal connection and 20000 microseconds maximum response time.
Explore SICK brand Safety Light Curtains and other advanced automation safety components on EnvMart to enhance your industrial safety systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum protective width supported by this model is 17 meters.
It can scan distances ranging from a minimum of 0.5 meters up to a maximum of 17 meters.
This model features a beam resolution of 400 mm.
It uses a 5-pin M12 terminal type connection for power and signal interfacing.
The maximum response time of this light curtain is 20000 microseconds.
Yes, it is designed for harsh industrial conditions and has variants suitable for explosion-hazardous areas with an IP69K enclosure rating.
It provides smart sensor diagnostic data accessible via IO-Link or NFC and the SICK Safety Assistant app.
The dimensions are 972 mm in length, 34 mm in width, and 31 mm in height.
It complies with safety type PL c according to IEC 61496-1 standards.
Yes, it is suitable for access protection and entry/exit monitoring in automated machinery and conveyor systems.
The country of origin for this light curtain is Germany.
This model is classified as a Type 2 safety device according to IEC 61496-1.
