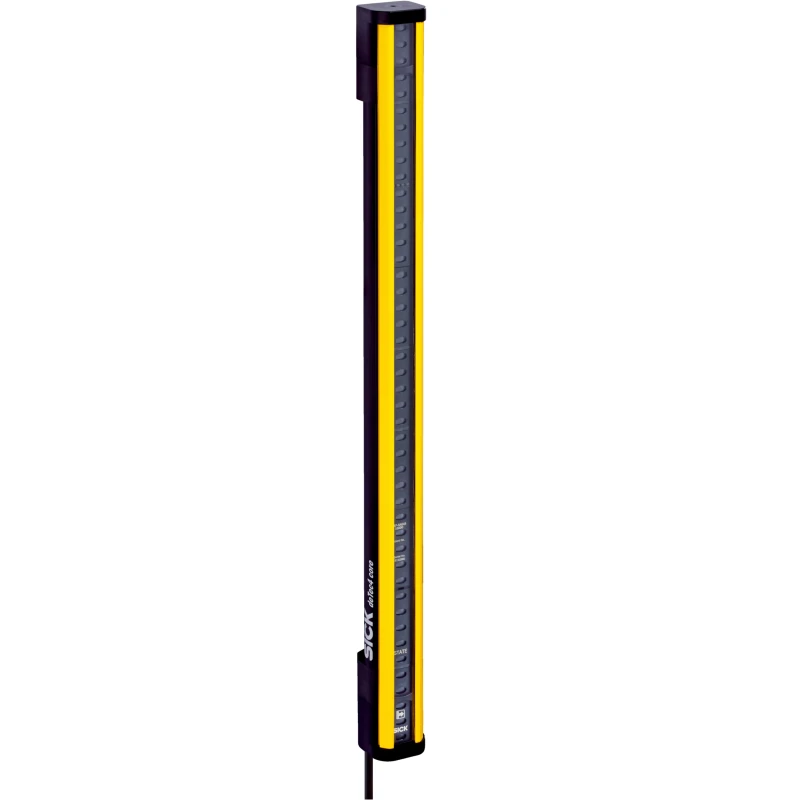

SICK deTec4 Core Series Light Curtain Sender 30 mm Beam Resolution 24V 11ms Response Time

The SICK C4C-SA10530A10000 deTec4 Core Series Light Curtain Sender is a high-performance safety component designed for industrial safeguarding of machinery and access points. Featuring a precise 30 mm beam resolution, it effectively detects intrusions with rapid 11 ms response time to ensure quick hazard mitigation.

This light curtain sender operates on a 24V supply voltage and integrates seamlessly into standard safety circuits via a 5-Pin M12 connector. It provides an extensive protective height of 1050 mm and covers maximum scanning distances and protective widths up to 15 meters, making it ideally suited for perimeter guarding of automated assembly lines, machine access protection, and conveyor systems presence detection.

Constructed with a robust aluminium extruded profile housing, it offers excellent resistance to mechanical vibration and shock while carrying an IP65/IP67 ingress protection rating suitable for washdown and dusty industrial environments. The device emits invisible near-infrared light at a wavelength of 850 nm to detect objects without distraction or interference.

Certified to comply with stringent global safety and regulatory standards including CE, GB, cUL, UKCA, EC-Type-Examination, and RoHS, the deTec4 Core Series ensures both reliability and legal compliance in safety-critical applications. Dual OSSD outputs provide secure safe-off switching when the sensed protective field is breached, enabling reliable machine stoppage or safety system activation.

Designed to operate under challenging environmental conditions, it functions within a temperature range from -30°C to +55°C and tolerates humidity levels between 15% and 95% non-condensing. This makes it well-suited for a wide variety of industrial sectors including manufacturing, automated production lines, water treatment, and heavy machinery safety controls.

Operates at 24V supply voltage compatible with standard safety circuits. Protective height of 1050 mm suitable for machinery safeguarding. Maximum scanning distance and protective width of 15 m for wide coverage. Durable aluminium extruded housing rated for vibration and shock resistance.

Equipped with a 5-Pin M12 terminal for easy integration in control systems. IP65/IP67 rated enclosure supports operation in washdown and dusty environments. Uses invisible near-infrared light at an 850 nm wavelength for precise detection.

Complies with international safety standards including CE, GB, cUL, UKCA, and RoHS. Provides dual OSSD outputs that switch to safe off state when the protective field is interrupted. Able to operate in harsh conditions between -30°C and +55°C with high humidity tolerance.

This SICK light curtain sender is an essential safety component for industrial, manufacturing, construction, and automation industries requiring reliable perimeter guarding and access protection to maintain compliance with occupational health and safety regulations. Explore more premium safety sensors and light curtain solutions in EnvMart’s Safety Light Curtain category.
