Omron F3SJ Series Light Curtain Receiver and Sender, 26 Beams, 20 mm Resolution, 24V DC, Type 4 Safety

Free Delivery in India | Lowest Global Shipping Charges

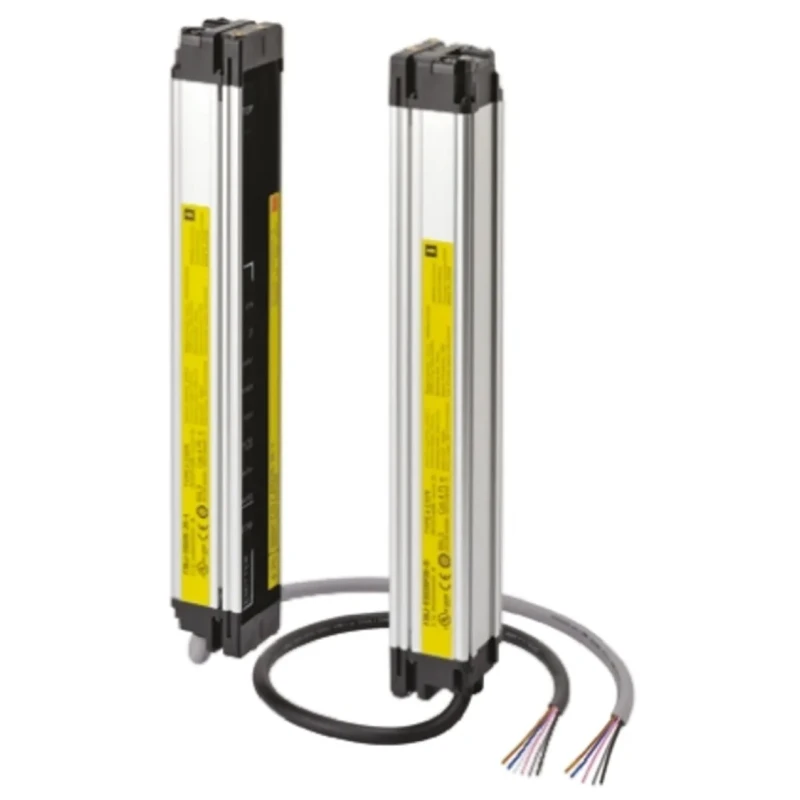

Omron F3SJ Series Light Curtain Receiver and Sender, 26 Beams, 20 mm Resolution, 24V DC, Type 4 Safety

Name: Omron F3SJ Series Light Curtain Receiver and Sender, 26 Beams, 20 mm Resolution, 24V DC, Type 4 Safety
Brand: Omron
SKU: 409176
Price: 2371.59 USD
Availability: InStock



Category Safety Light Curtain Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Height	614mm
Length	30mm
Model	F3SJ
Number of Beams	26
Width	30mm
Series	F3SJ
Terminal type	M12 Connector
Component Type	Receiver, Sender
Standards/Approvals	e
Maximum Supply Voltage	24V dc
Safety Type	Type 4
Protective Height	545mm
Maximum Protective Width	7m
Minimum Scanning Distance	0.2m
Maximum Scanning Distance	7m
Maximum Response Time	15, 70ms
Beam Resolution	20mm

Key Features

Features 26 optical beams for segmented detection across the protective height.
Offers 20 mm beam spacing for fine object detection and precise interruption sensing.
Operates on 24V DC supply with M12 connector terminal type.
Type 4 safety rating ensures high-integrity protection for demanding environments.
Maximum protective height coverage of 545 mm and maximum protective width of 7 meters.
Fast on-to-off response time of 15 ms for rapid hazard recognition.
Accommodates controlled restart timing with off-to-on response of 70 ms.
Minimum scanning distance of 0.2 meters and maximum scanning distance of 7 meters.

Product Description

Omron F3SJ-E0545P25 Light Curtain Receiver and Sender is a presence sensing safety device designed for industrial automation and machinery safeguarding. It operates as a receiver within a two-piece protective beam system with 26 optical beams and a 20 mm beam resolution, ensuring precise detection of personnel or objects entering hazardous areas.

The device features a Type 4 safety rating, suitable for high-integrity protection in demanding industrial environments. It supports a maximum scanning distance of 7 meters and a protective height of 545 mm, allowing perimeter protection around robotic workcells, press and shear equipment, automated assembly lines, and conveyor pinch-point hazard prevention.

The receiver housing is compact with dimensions of 30 mm width, 30 mm length, and 614 mm height, facilitating easy integration into safety systems. Its connectors use an M12 terminal type paired with a 24V DC power supply. The system requires a minimum separation of 0.2 meters between emitter and receiver for correct operation.

Response times are optimized for safety with a 15 ms on-to-off time for rapid stoppage and a 70 ms off-to-on time to allow controlled machine restart after clearance of the guarded zone.

Compliance with multiple international standards such as IEC 61496-1/-2, UL 61496-1/-2, and IEC 61508 SIL3 underscores its reliability and certification for electro-sensitive protective equipment (ESPE). Suitable for industrial, manufacturing, automation, and safety applications requiring high-integrity access guarding.

Features 26 optical beams for segmented detection. 20 mm beam spacing ensures precise sensing. Operating voltage of 24V DC with M12 connectors. Type 4 safety rating for demanding environments. Protective height of 545 mm and width up to 7 meters.

15 ms on-to-off and 70 ms off-to-on response times. Complies with IEC, EN, and UL safety standards. Explore more on EnvMart for advanced Safety Light Curtains and automation safety devices from Omron.
