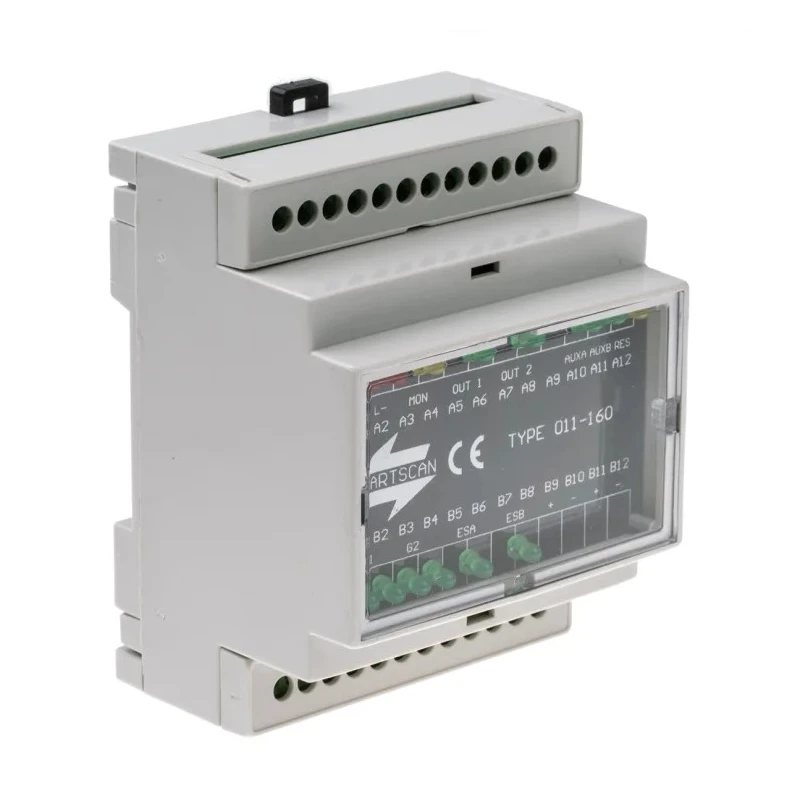

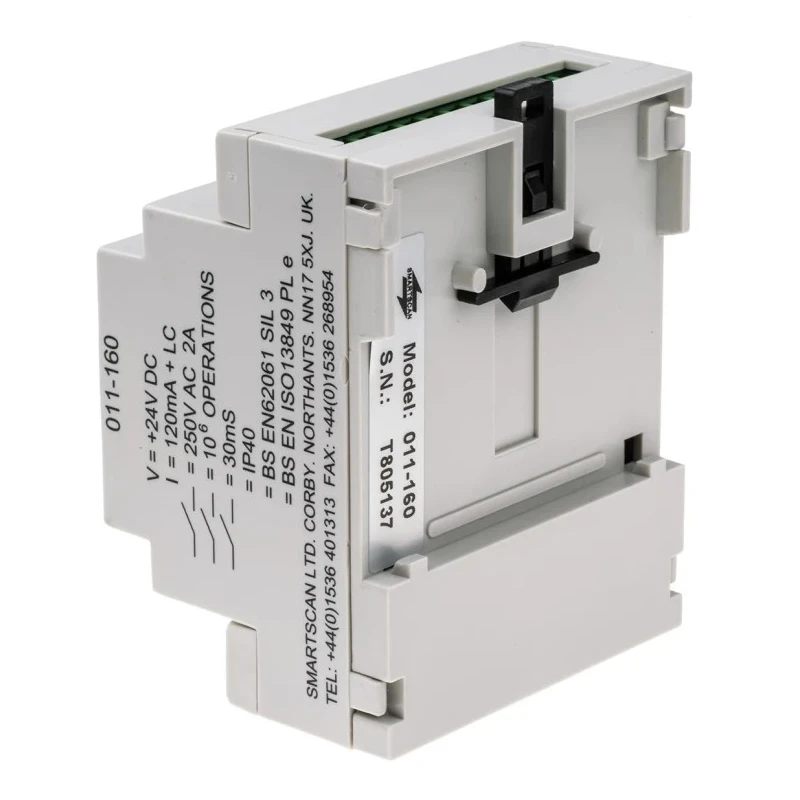

Smartscan 24V DC Safety Relay with 2 Safety Contacts MFU Series 011-160

Smartscan 011-160 is a 24V DC safety relay designed for industrial applications requiring stringent safety controls. This multifunction unit supports two safety contacts and is ideal for integration with safety light curtains and emergency stop circuits in automation systems.

The device features dual safety inputs allowing connection of up to two light curtains simultaneously, enhancing installation flexibility and safety redundancy. It supports emergency stop circuit inputs via its dual input functionality, ensuring comprehensive safety monitoring.

LED indicators on the unit provide clear feedback on the status of inputs, outputs, reset states, and external device monitoring, facilitating easy diagnostics and maintenance. The relay includes a reset function that enables manual override with an automatic self-reset mode, providing operational convenience.

Designed for DIN Rail mounting, the compact enclosure measures 90mm in length, 70mm in width, and 60mm in height, making it suitable for control panels with limited space. The device also incorporates automatic self-testing routines to verify its functionality continuously, enhancing reliability in safety-critical environments.

This safety relay complies with multiple international safety standards, including ISO13850, EN60947-5-1, EN60947-5-5, and ISO13849-1, classified under Safety Category PLe/Category 4. It is rated IP40 for protection against solid objects and operates within a temperature range of 0°C to 50°C. The coil voltage is standardized at 24V DC.

Its two fail-safe changeover safety contacts each have a rating of 250V AC and 4A, suitable for controlling safety functions in machinery and equipment. Smartscan 011-160 safety relay is manufactured in the United Kingdom, ensuring high-quality standards and durability for demanding industrial environments.

This device is widely used in industrial automation, manufacturing safety monitoring, machinery control systems, and water treatment plants, where reliable safety relay functions are critical to protect personnel and machinery.

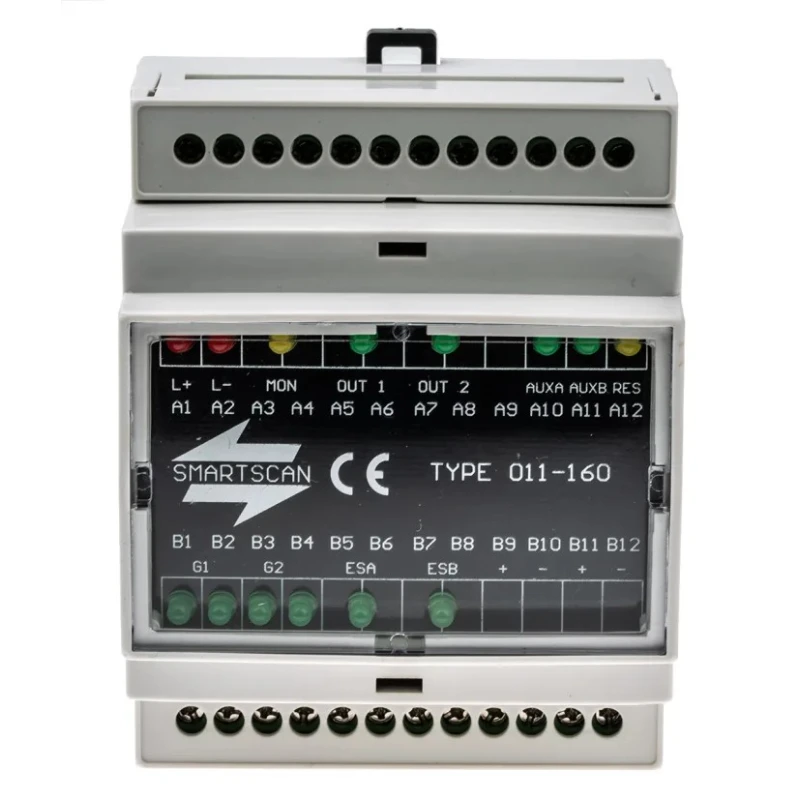

Equipped with two dual safety inputs to connect up to 2 light curtains simultaneously. Includes dual input functionality to integrate emergency stop circuits effectively. Easy-to-read LED indicators provide clear status for inputs, outputs, reset, EDM, and system health.

Automatic reset function with manual override capability for operational flexibility. Designed for DIN Rail mounting with compact enclosure dimensions of 90mm length, 70mm width, and 60mm height. Features external device monitoring to track connected devices easily.

Built-in automatic self-testing routines ensure continuous operational integrity. Meets safety standards including ISO13850, EN60947-5-1, EN60947-5-5, ISO13849-1 with Safety Category PLe/Category 4. Robust construction with IP40 rating suitable for industrial environments.

Coil voltage rated at 24V DC, operating temperature from 0°C to 50°C. Explore more Safety Relays and industrial automation products on EnvMart for reliable and compliant solutions.
