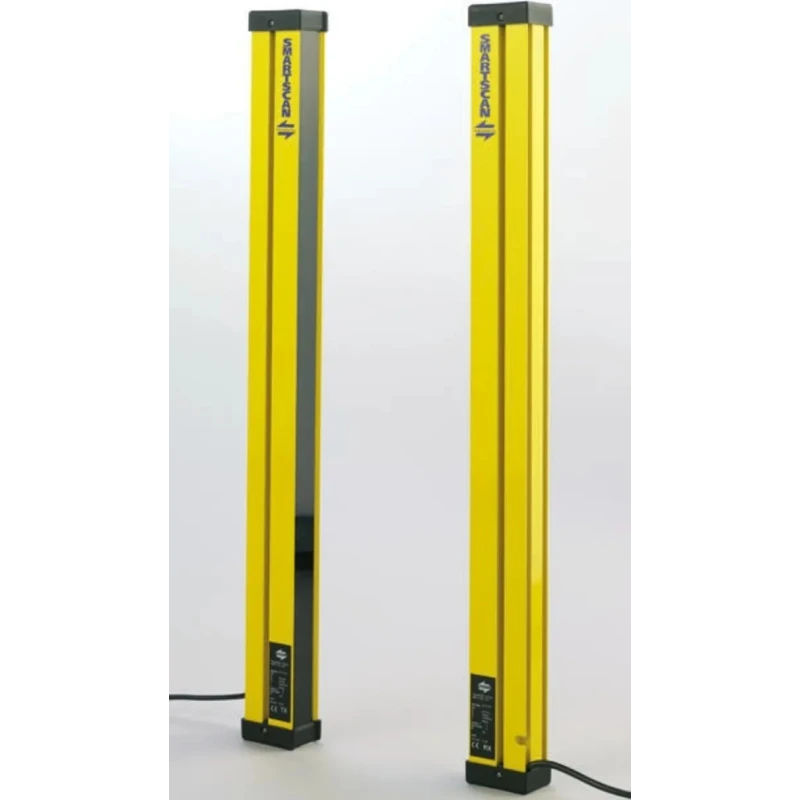

Smartscan 1K3 Series Light Curtain Receiver Sender 48 Beams 30 mm Resolution 24V dc 40ms Response Time 1K3-112
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Smartscan |
| Height | 1.24m |
| Length | 41mm |
| Model | 1K3-112 |
| Number of Beams | 48 |
| Width | 28mm |
| Series | 1K3 |
| Terminal type | Cable |
| Component Type | Receiver, Sender |
| Standards/Approvals | d |
| Maximum Supply Voltage | 24V dc |
| Safety Type | Type 3 |
| Protective Height | 1230mm |
| Maximum Protective Width | 5m |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 5m |
| Maximum Response Time | 40ms |
| Beam Resolution | 30mm |
| Safety,light,curtain,1000,30odc x1220mm,48 beams,0.5-5m rangeBrand | Smartscan |
Key Features
- The 1K3 series features a continuously self-testing system with no need for a test input.
- Designed with dual channel, fail-safe electronic outputs to ensure control reliability.
- Includes waterproof enclosures suitable for harsh industrial environments.
- Supports scanning distances from 0.5 m up to a maximum of 5 m.
- Maximum protective height is 1230 mm with a protective width up to 5 m.
- Maximum response time is 40 ms, ensuring fast safety reactions.
- Simple installation and alignment aided by diagnostic indicators.
- All sets include a transmitter, receiver, and two 5 m connecting cables.
Product Description
Smartscan 1K3-112 Light Curtain Receiver and Sender constitute a high-integrity safety system designed for industrial automation and hazardous area protection. Equipped with 48 beams at a precise 30 mm resolution, the light curtain covers a maximum protective height of 1230 mm and a width up to 5 meters, with scanning distances adjustable between 0.5 m to 5 m. The system operates on 24 V dc supply voltage with a rapid maximum response time of 40 ms, making it ideal for safeguarding processes that require swift detection.
This 1K3 series light curtain represents a significant advancement in safety technology, continuously self-testing to ensure no faults remain undetected. This eliminates the need for a separate test input, enhancing reliability and reducing installation complexity. The dual channel, fail-safe electronic outputs are monitored by the device to provide control reliability and short circuit protection.
The units come complete with waterproof enclosures to withstand demanding manufacturing environments and flexible mounting options for easy installation on diverse machines and transfer lines.
Applications for the Smartscan 1K3 series include integration in robot safety systems, packaging machinery, injection moulding machines, process machinery, automated warehouses, textile machinery, bottling and filling lines, and electronic component assembly lines.
The product meets stringent safety standards including BS EN 61496-1 Type 2, BS IEC 61496-2 Type 2, EN 62061 SIL 2, and EN ISO 13849 PL d, ensuring suitability for industrial safety applications.
The 1K3 series continuously self-tests, requiring no test input. Fail-safe dual channel outputs guarantee enhanced safety. Waterproof enclosures suitable for industrial environments. Flexible mounting options enable diverse installations.
Rapid response time of 40 ms enhances safety performance.
Choosing the Smartscan 1K3-112 light curtain ensures a robust safety solution compliant with international standards. This product is designed for industrial, manufacturing, and automation applications where safety and reliability are paramount. Explore the range of Safety Light Curtains at EnvMart for optimized industrial safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum protective height of this light curtain is 1230 mm.
The scanning distance for the Smartscan 1K3-112 ranges from a minimum of 0.5 m to a maximum of 5 m.
This model is equipped with 48 beams, providing a resolution of 30 mm.
The maximum response time of this light curtain is 40 ms, ensuring quick safety reactions.
It operates on a 24 V dc power supply.
This light curtain meets several safety standards, including BS EN 61496-1 Type 2, BS IEC 61496-2 Type 2, EN 62061 SIL 2, and EN ISO 13849 PL d.
The unit includes a transmitter, a receiver, and two 5 m connecting cables.
Installation is simplified by diagnostic indicators and flexible mounting options, making it suitable for diverse machines and transfer lines.
The height of this model is 1.24 m, and it has a width of 28 mm.
It features dual channel, fail-safe electronic outputs to ensure control reliability.
This light curtain is designed with waterproof enclosures, making it suitable for harsh industrial environments.
It is applicable in various settings including robot safety systems, packaging machinery, and automated warehouses.
