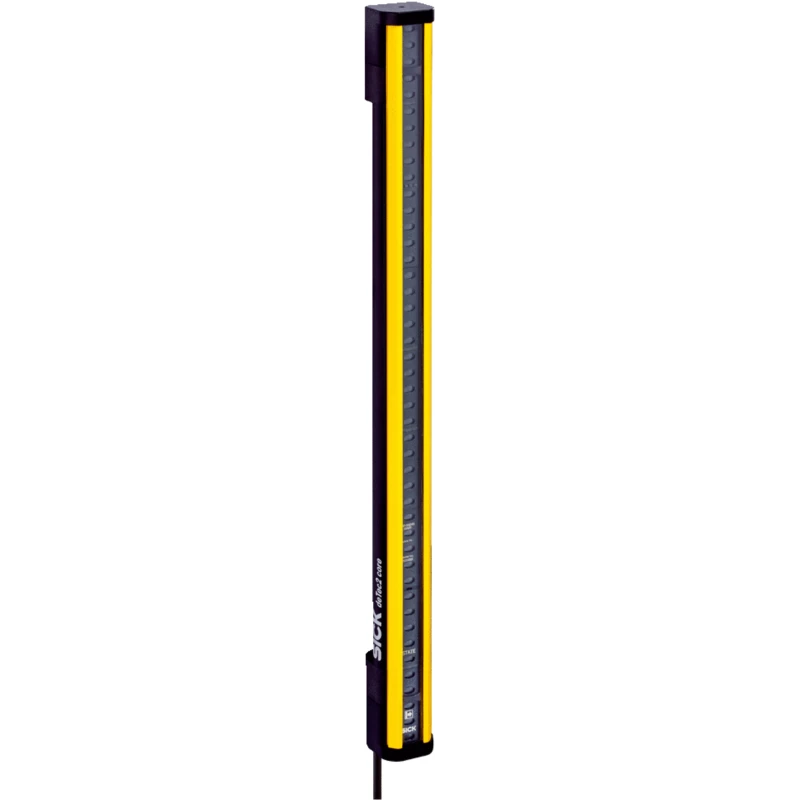

SICK deTec4 Core Series Light Curtain Sender 30 mm Resolution Type 4 Safety PL e 24V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Height | 1.35m |
| Length | 1.36m |
| Model | deTec4 |
| Series | deTec4 Core |
| Terminal type | 5-Pin M12 |
| Component Type | Sender |
| Standards/Approvals | PL e |
| Maximum Supply Voltage | 24V |
| Safety Type | Type 4 |
| Protective Height | 1350mm |
| Maximum Protective Width | 15m |
| Maximum Scanning Distance | 15m |
| Maximum Response Time | 12ms |
| Beam Resolution | 30mm |
| Reduced resolution | 1 or 2 beams |
| Safety and automation combined | IO-Link makes cost-effective system design possible |
| High availability | smart presence detection prevents unwanted switch-offs |
Key Features
- Provides protective height of 1350mm and a maximum protective width of 15m.
- Equipped with 24V maximum supply voltage for compatibility with industrial power systems.
- Features a fast maximum response time of 12ms to enhance safety performance.
- Includes 5-Pin M12 terminal type for standardized electrical connectivity.
- Constructed with IP65, IP67, and IP69K enclosure ratings for harsh environment durability.
- Supports intelligent diagnostics via NFC and IO-Link for maintenance and automation.
- Enables muting function for differentiating between people and material to maximize productivity.
- Offers dynamic protective field widths and smart presence detection to prevent unwanted switch-offs.
Product Description
SICK C4C-SA13530A10000 deTec4 Core Series Light Curtain Sender is engineered for advanced safety applications with 30 mm beam resolution and Type 4 safety category. It features a protective height of 1350mm and covers a maximum protective width and scanning distance of 15 meters, suitable for safeguarding hazardous areas in industrial environments.
Equipped with a maximum supply voltage of 24V and a swift maximum response time of 12 milliseconds, this light curtain sender ensures rapid interruption detection for enhanced operator protection. The 5-Pin M12 terminal simplifies electrical connections, supporting cost-effective system integration.
The device meets Protection Level e (PL e) and includes international enclosure ratings IP65, IP67, and IP69K, providing high resistance to dust, water, and harsh conditions. Variants include models suitable for explosion-hazardous locations, expanding its applicability.
This series supports intelligent diagnostics utilizing NFC technology and automation communication through IO-Link, enabling efficient troubleshooting and system design without the need for dedicated software. The integrated muting feature allows differentiation between people and materials, maximizing productivity without compromising safety.
Additional advanced functionalities include smart presence detection to avoid inadvertent machine stoppages, dynamic protective field width adjustments, and the ability to configure all functions without software. The reduced resolution option of 1 or 2 beams further enhances versatility.
Protective height of 1350mm with maximum width and scanning distance of 15m. Type 4 safety classification and PL e standard compliance ensure top safety integrity. NFC and IO-Link technologies support extensive diagnostics and automation integration.
High ingress protection ratings IP65, IP67, and IP69K safeguard against environmental challenges. Muting and smart presence detection features enhance productivity and safety. Constructed for industrial, manufacturing, automation, and hazardous area applications.
Designed and produced in Germany for superior quality assurance.
This product is ideal for industrial and manufacturing sectors needing reliable area protection and automation capabilities. Explore more from SICK and related Safety Light Curtains at EnvMart.
