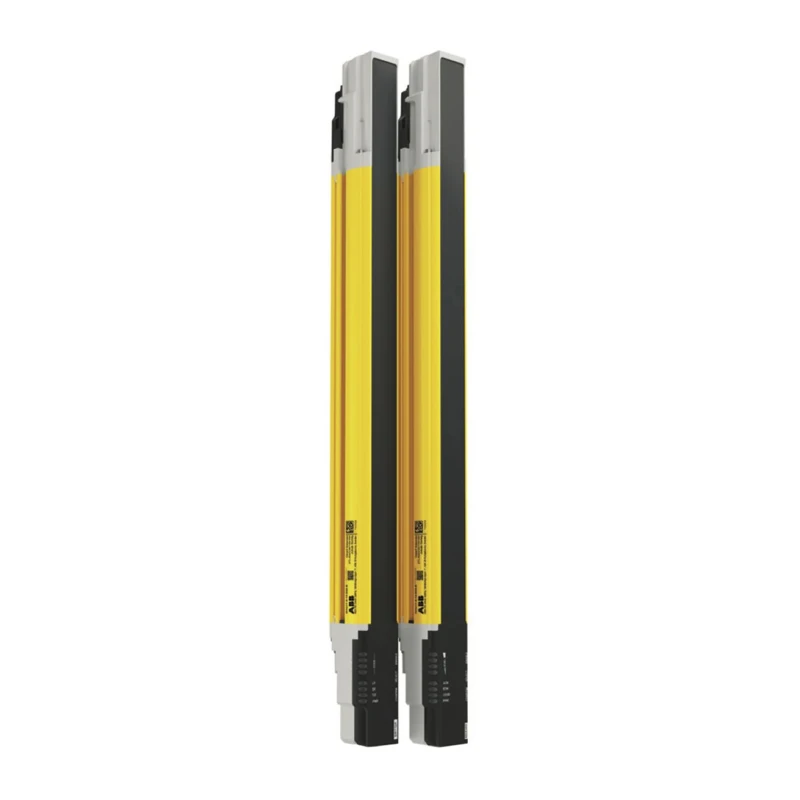

ABB Light Curtain Receiver and Sender 16 Beams 30 mm Resolution Type 4 Safety 24V DC 2TLA022303R0100 Orion1-4-30-030-E

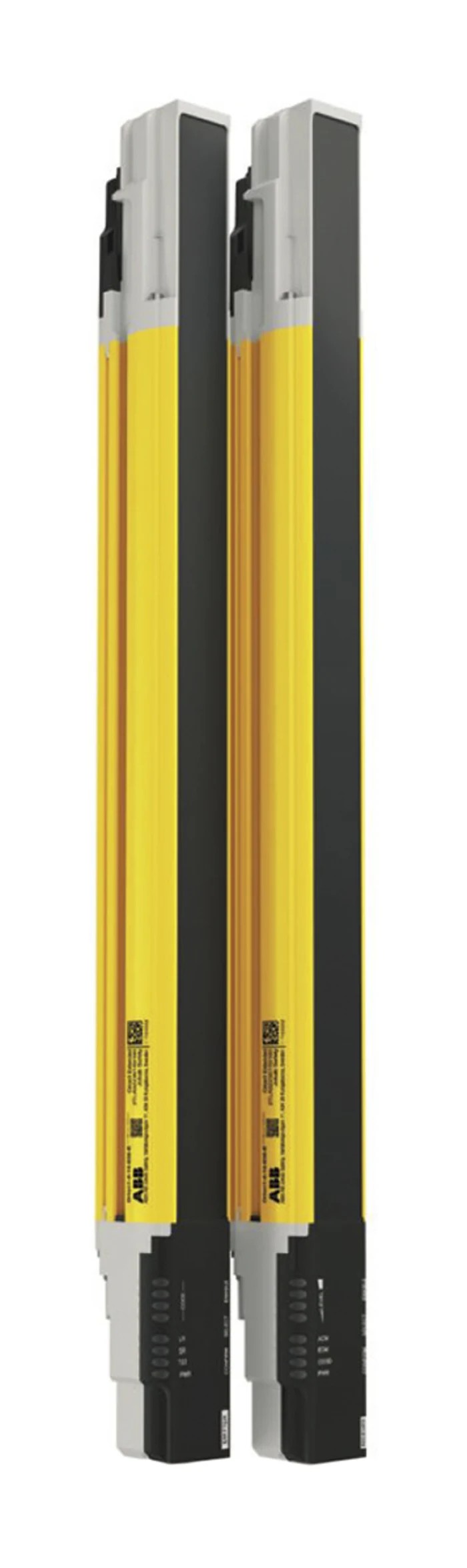

ABB 2TLA022303R0100 Orion1-4-30-030-E Light Curtain Receiver and Sender is engineered for safety in industrial applications. It consists of a transmitter and receiver designed to detect fingers or hands and provide Type 4 safety protection with 16 beams and 30 mm resolution.

Operating at 24 V DC, the device achieves a protective height of 300 mm and can protect a maximum width of 20 m. It supports a minimum scanning distance of 0.2 m and a maximum scanning distance of 20 m, with a response time of 16 ms.

The compact design with dimensions 306 mm length, 35 mm width, and 41 mm height allows integration in tight spaces. Installation efficiency is improved with M12 connectors and rotation brackets that simplify alignment. A local reset button can be connected directly, removing the need for extra cabling or control modules. This light curtain also monitors actuators through built-in external device monitoring functionality.

The Orion1 series meets high safety standards including EN ISO 13849-1:2008 PL e Cat 4, EN 61508 SIL3, and EN 62061 SIL CL 3, with certifications such as CE, cULus, and TUV. Protective tubes and lens shields enhance durability in harsh environments.

Typical applications include finger and hand detection near hazardous machinery, area protection with horizontal mounting, and controlling machine access zones especially in manually serviced equipment. The extended model option supports muting sensors for flexible safety workflows.

The product is made in Italy and is suitable for a wide range of industrial, manufacturing, and automation safety use cases. The device includes a receiver and transmitter pair designed for finger and hand detection. Equipped with a 24 V DC supply voltage for efficient operation.

Protective height of 300 mm and maximum protective width of 20 m ensure ample coverage. Features an M12 connector terminal type to expedite installation and cabling. Includes a local reset button connection eliminating the need for additional control modules.

Compact dimensions of 306 mm length, 35 mm width, and 41 mm height aid installation in constrained spaces. Alignment help and rotation brackets facilitate fast and precise alignment. Complies with safety standards EN ISO 13849-1 PL e Cat 4, EN 61508 SIL3, and EN 62061 SIL CL 3.

Designed for industrial use including machinery area protection, manual access safety, and work zone limitation. Explore more industrial safety products and ABB solutions at EnvMart to enhance your automation and protection systems.
