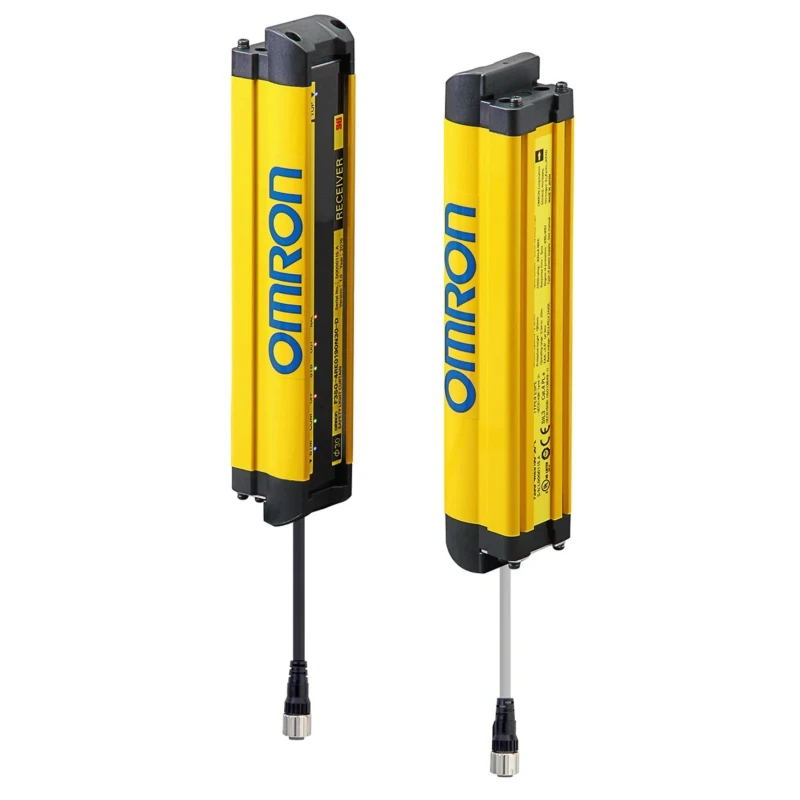

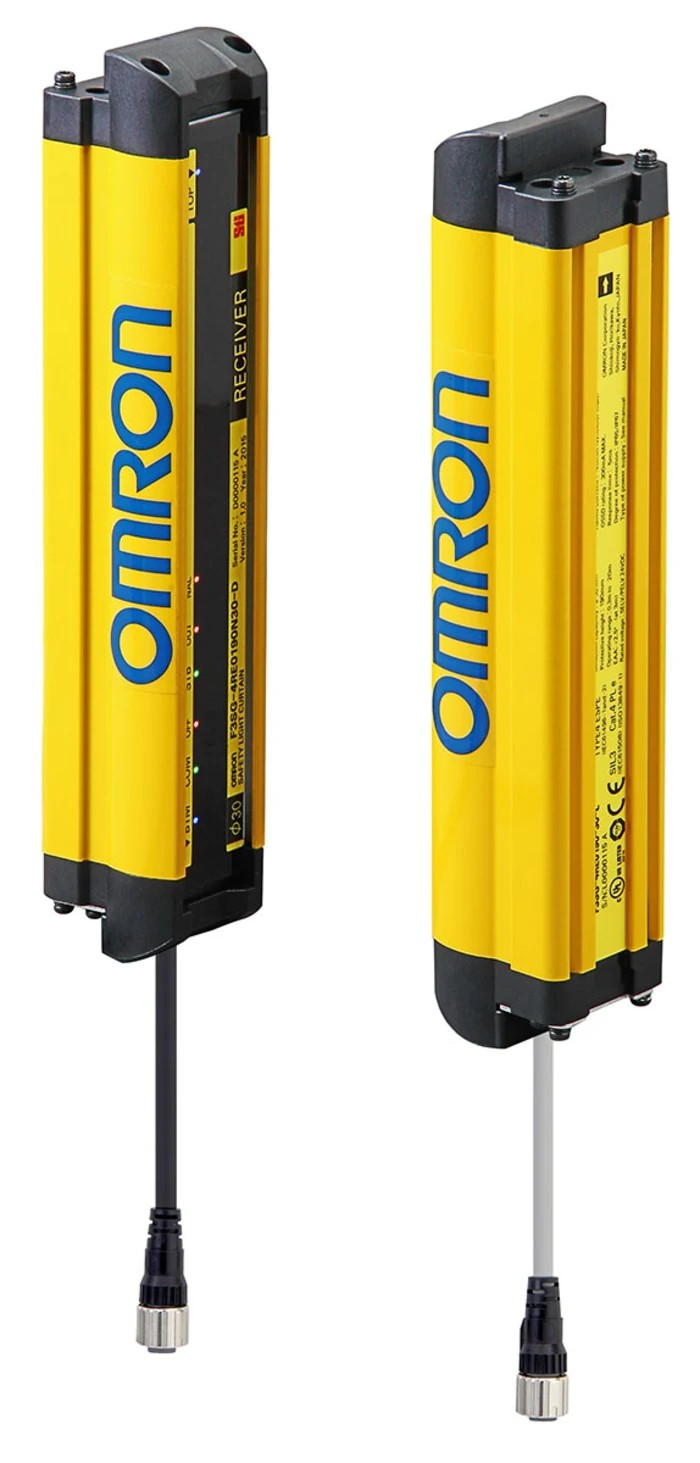

Omron F3SG-RE Series Light Curtain Receiver and Sender, 47 Beams, 14 mm Resolution, 480 mm Protective Height, 24V DC F3SG-RE
Specifications
| Country of Origin | Netherlands |
|---|---|
| Brand | Omron |
| Length | 35mm |
| Model | F3SG-RE |
| Number of Beams | 47 |
| Width | 35mm |
| Series | F3SG-RE |
| Terminal type | 4-Pin M12 Connector |
| Component Type | Receiver, Sender |
| Maximum Supply Voltage | 24V dc |
| Safety Type | Type 2 |
| Protective Height | 480mm |
| Maximum Protective Width | 10m |
| Minimum Scanning Distance | 0.3m |
| Maximum Scanning Distance | 10m |
| Maximum Response Time | 135ms |
| Beam Resolution | 14mm |
Key Features
- The device features a 480 mm protective height for narrow opening coverage.
- Operates with 24V DC supply and supports a maximum response time of 135 ms.
- Equipped with 4-pin M12 connector terminals for reliable wiring.
- Type 2 safety classification ensures PL c/Category 2 safety level compliance.
- Suitable for short to medium-range protection with scanning distances from 0.3 m to 10 m.
- Robust aluminum housing and PMMA front window provide durability in industrial environments.
- Self-testing functionality maintains operational safety by continuous fault detection.
- Applications include access protection on automated assembly cells and conveyor loading/unloading station safeguarding.
Product Description
Omron F3SG-RE Series Light Curtain Receiver and Sender model F3SG-RE provides an industrial safety sensor solution with 47 beams and 14 mm beam resolution for detecting intrusions and protecting personnel around machinery. It features a 480 mm protective height to cover narrow openings with dense vertical beam configuration, powered by a 24V DC supply with 135 ms maximum response time to ensure fast and reliable operation.
This light curtain is designed for short to medium range guarding and provides a Type 2 safety classification, conforming to PL c/Category 2 safety levels. The device integrates with standard DC safety controllers via 4-pin M12 connectors for straightforward wiring and installation.
The housing is made from durable aluminum with a PMMA front window, making it resistant to typical factory environment challenges. The included oil-resistant PVC cable and torsion-resistant form factor facilitate robust mounting and alignment, reducing installation time and maintenance needs.
Built-in self-test functions operate continuously during use to detect faults and ensure ongoing safety performance. The protective range covers minimum scanning distance of 0.3 m up to a maximum of 10 m, suitable for safeguarding access on automated assembly cells, conveyors, robotic work envelopes, and zone protection requiring close-range detection.
Exceptional safety for industrial environments with Type 2 classification. Wide protective width up to 10 m for larger machine perimeters. Compact dimensions (35 mm length and width) facilitate integration in tight spaces.
Reliable and quick cable connections minimize downtime. Industrial-grade materials ensure longevity and resistance to wear. Continuous self-monitoring enhances operational reliability. Designed to protect personnel and assets by preventing accidental contact with hazardous machinery.
The Omron F3SG-RE series is ideal for use in manufacturing, automation, and industrial safety applications requiring high-precision guarding with efficient installation and maintenance.
Explore more Omron industrial safety sensors and automation components at EnvMart, your trusted source for technical equipment.
Explore more products in our Safety Light Curtains category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum protective height of this light curtain is 480 mm, designed to cover narrow openings effectively.
This model features 47 beams, providing a dense vertical beam configuration for enhanced detection.
The beam resolution for this series is 14 mm, allowing for precise detection of intrusions.
It operates with a supply voltage of 24V DC, suitable for various industrial applications.
The maximum scanning distance supported by the F3SG-RE is 10 m, making it suitable for short to medium-range protection.
It is equipped with 4-pin M12 connector terminals, facilitating reliable wiring and installation.
The maximum response time is 135 ms, ensuring fast and reliable operation.
This model complies with Type 2 safety classification, conforming to PL c/Category 2 safety levels.
The housing is made from durable aluminum with a PMMA front window, providing resistance to typical factory environment challenges.
It is suitable for access protection on automated assembly cells and conveyor loading/unloading stations.
The minimum scanning distance for the F3SG-RE is 0.3 m, allowing for close-range detection.
Yes, it features built-in self-testing functionality that operates continuously to detect faults and maintain operational safety.
