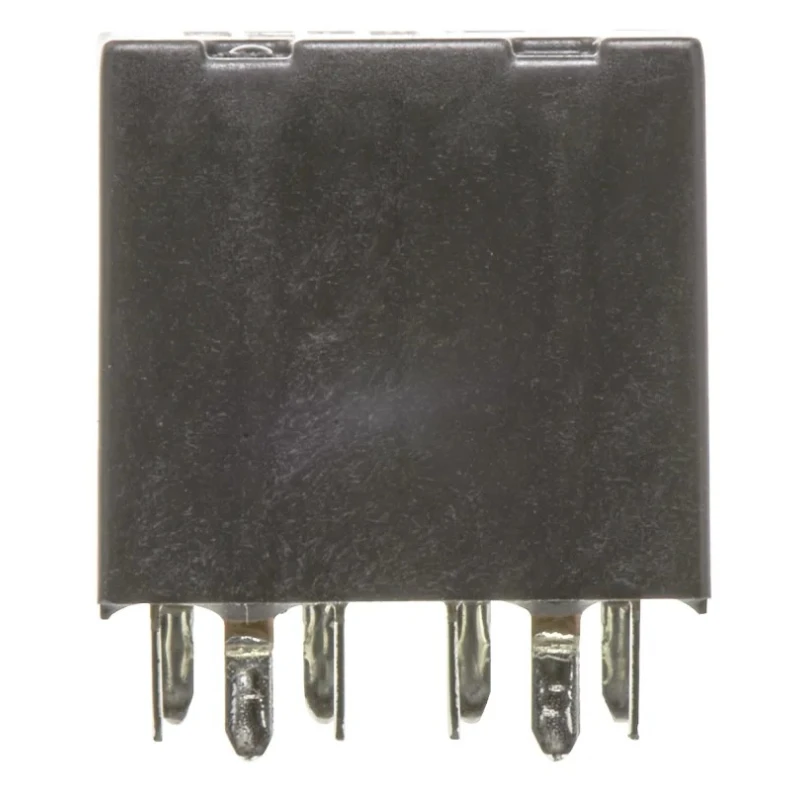

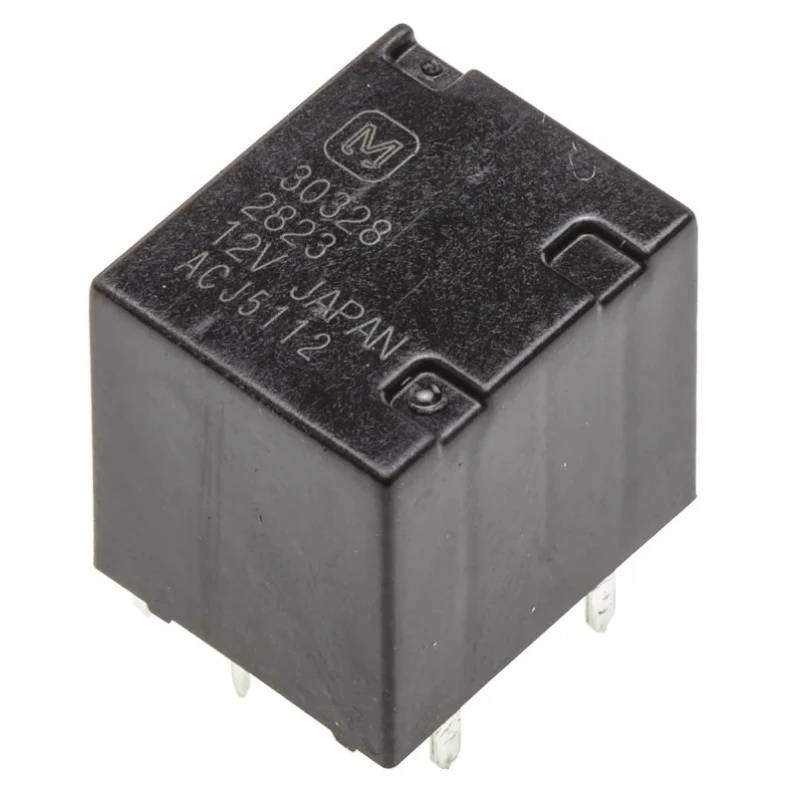

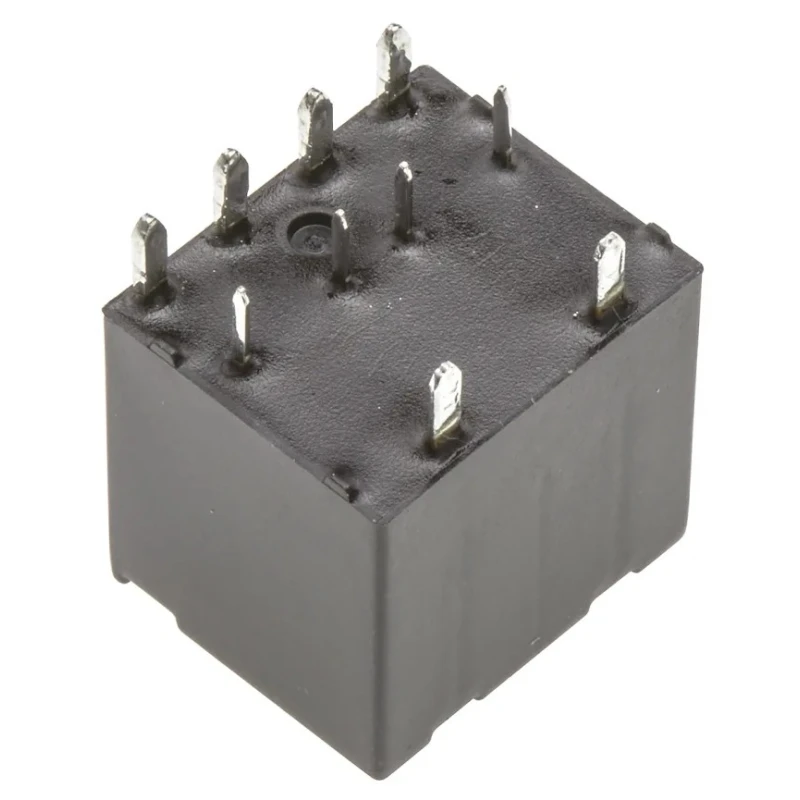

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current DPDT ACJ5112
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 12.2mm |
| Model | ACJ5112 |
| Depth | 14.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Typical Applications | Powered windows, automatic door locks, powered seats |
| Number of Poles | 2 |
| Coil Resistance | 180Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Extremely compact automotive relay suitable for PCB mounting.
- Nominal coil voltage of 12 volts DC for efficient operation.
- Maximum current capacity of 20 amperes for one hour and 30 amperes for two minutes.
- Silver alloy contacts for reliable conductivity and durability.
- DPDT contact configuration with 2 poles for versatile switching.
- Coil power consumption rated at 800 milliwatts.
- Operating temperature range from -40°C to 85°C ensures robust performance.
- Isolation between coil and contact rated at 500 Vrms.
Product Description
Panasonic ACJ5112 PCB Automotive Relay offers a compact and highly reliable switching solution designed specifically for automotive electrical systems. Featuring a 12V DC coil voltage and a double pole double throw (DPDT) contact configuration, it provides stable switching capacity rated at 20A for one hour and a short-term surge handling of 30A for two minutes.
Constructed with silver alloy contacts and designed to be environmentally friendly with cadmium-free contacts and lead-free solder, this relay ensures durability and regulatory compliance. The coil power is rated at 800mW, with a resistance of 180 ohms, balancing power consumption and performance.
The product supports a wide operating temperature range from -40°C to 85°C, making it suitable for harsh automotive environments. Its isolation voltage of 500 Vrms between coil and contact enhances operational safety. The compact dimensions (12.2mm length, 13.5mm height, 14.4mm depth) facilitate miniaturization of relay units in automotive assemblies.
This relay is ideally used in automotive applications such as powered windows, automatic door locks, electrically powered mirrors, sunroofs, seats, lift gates, and smart junction box products, providing dependable and efficient relay performance.
Extremely compact automotive relay suitable for PCB mounting. Nominal coil voltage of 12 volts DC for efficient operation. Maximum current capacity of 20 amperes for one hour and 30 amperes for two minutes. Silver alloy contacts for reliable conductivity and durability.
DPDT contact configuration with 2 poles for versatile switching. Coil power consumption rated at 800 milliwatts. Operating temperature range from -40°C to 85°C ensures robust performance. Isolation between coil and contact rated at 500 Vrms.
Ideal for automotive uses such as powered windows, door locks, powered seats, and sunroofs. For high-quality automotive relay solutions, explore the comprehensive range available on EnvMart.
Explore more products in our Automotive Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a nominal coil voltage of 12 volts DC.
It has a maximum current capacity of 20 amperes for continuous operation and can handle up to 30 amperes for short-term use of two minutes.
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
The coil power consumption is rated at 800 milliwatts.
It can operate within a temperature range of -40°C to 85°C, making it suitable for harsh automotive environments.
The contacts are made of silver alloy, which ensures reliable conductivity and durability.
The relay has dimensions of 12.2mm in length, 13.5mm in height, and 14.4mm in depth.
This model is designed for PCB mounting, facilitating easy integration into electronic systems.
The isolation between the coil and contact is rated at 500 Vrms, enhancing operational safety.
It is typically used in applications such as powered windows, automatic door locks, and powered seats in automotive systems.
The coil resistance is rated at 180 ohms.
The relay is manufactured in Japan.
