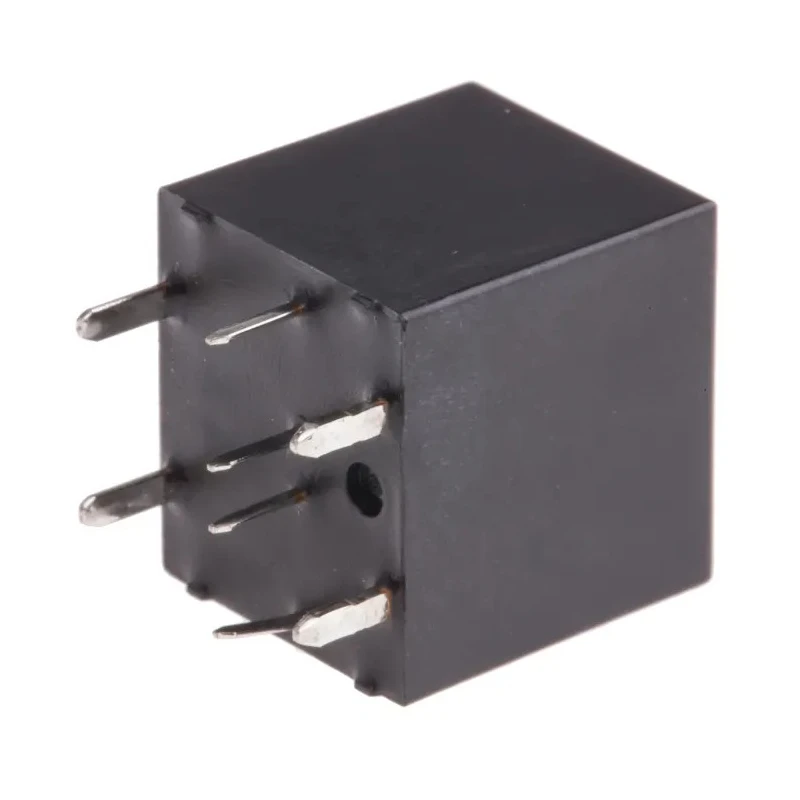

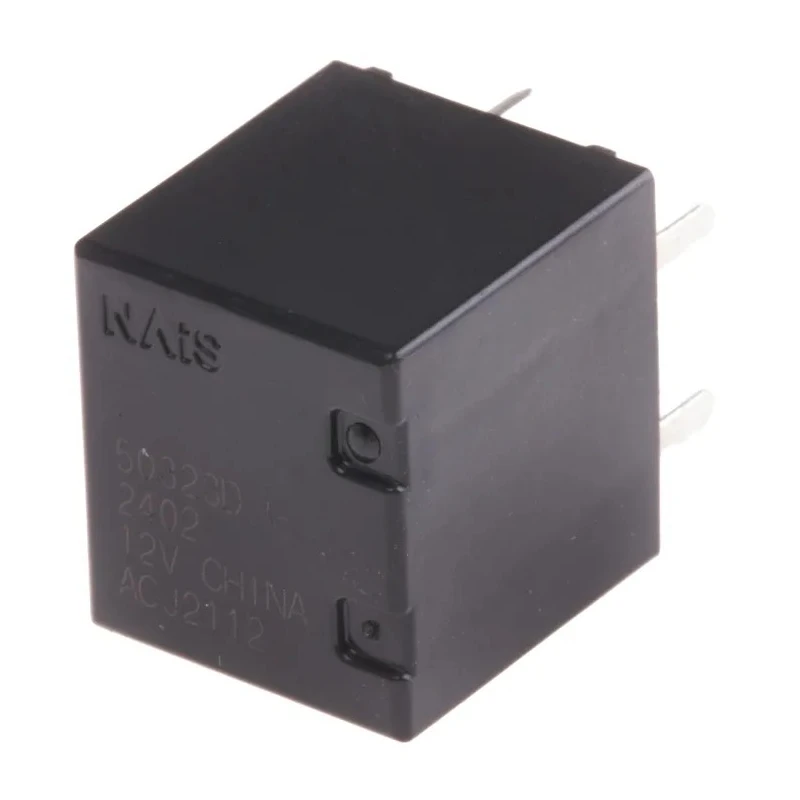

Panasonic PCB Automotive Relay 12V dc Coil Voltage 20A Switching Current DPDT ACJ2112
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 12.2mm |
| Model | ACJ2112 |
| Depth | 13.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Typical Applications | Powered windows, automatic door locks, powered seats |
| Number of Poles | 2 |
| Coil Resistance | 180Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Extremely compact size ideal for miniaturized relay units.
- Nominal coil voltage is 12V DC with coil power of 800mW.
- Silver alloy contacts configured as Double Pole Double Throw (DPDT).
- Maximum current capacity of 20A for one hour and 30A for 2 minutes.
- PCB mount type with through hole terminals for easy mounting.
- Operates reliably in temperatures from -40°C to 85°C.
- Coil resistance is 180Ω ensuring efficient operation.
- Isolated coil to contact voltage rating of 500Vrms for safe electrical isolation.
Product Description
Panasonic ACJ2112 is a super miniature PCB automotive relay designed for relay unit miniaturization in automotive electrical and automation systems. Featuring a 12V dc coil voltage and a 20A switching current capacity, this DPDT (Double Pole Double Throw) relay offers robust performance with silver alloy contacts and cadmium-free contact materials ensuring environmental protection.
The relay has a nominal coil power of 800mW and a coil resistance of 180Ω, designed to operate efficiently within an ambient temperature range of -40°C to 85°C. Its compact dimensions of approximately 12.2mm length, 13.5mm height, and 13.7mm depth allow integration in tight PCB layouts.
Panasonic ACJ2112 provides a maximum current capacity of 20A for continuous operation of one hour and can handle surges up to 30A for 2 minutes, making it ideal for automotive functions such as powered windows, automatic door locks, electrically powered mirrors, powered sunroofs, powered seats, lift gates, and smart junction box products.
The coil to contact isolation voltage is rated at 500Vrms offering excellent electrical safety, suitable for automotive electrical environments. The relay's through hole terminal type and PCB mount design facilitate reliable installation in electronic control modules.
Extremely compact relay suitable for miniaturized automotive electronic circuits. Nominal coil voltage 12V dc for automotive power supply compatibility. Maximum current rating 20A continuous, 30A surge capacity. Silver alloy cadmium-free contacts for durability and environmental compliance.
Operating temperature range from -40°C to 85°C for diverse climates. PCB mount with through hole terminals for secure attachment. Coil resistance 180Ω for stable coil operation. Isolation voltage 500Vrms for safe coil to contact separation.
Applications include powered windows, door locks, seats, and related automotive systems.
This Panasonic ACJ2112 PCB Automotive Relay is manufactured in Japan and is a premium component for advanced automotive relay circuits. Explore EnvMart's range of Automotive Relays for reliable electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal coil voltage of this relay is 12V DC, making it suitable for automotive power supply applications.
This model has a maximum current capacity of 20A for continuous operation for one hour and can handle surges up to 30A for 2 minutes.
The relay features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
The coil resistance of this relay is 180Ω, which ensures efficient operation.
The relay has dimensions of approximately 12.2mm in length, 13.5mm in height, and 13.7mm in depth, allowing for compact installations.
This unit operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse automotive environments.
It features through hole terminals, which facilitate secure mounting on printed circuit boards (PCBs).
The coil to contact isolation voltage rating is 500Vrms, ensuring safe electrical isolation.
The contacts are made of silver alloy, which provides durability and environmental compliance as they are cadmium-free.
This relay is typically used in automotive applications such as powered windows, automatic door locks, and powered seats.
This relay is manufactured in Japan, ensuring high standards of production quality.
The nominal coil power of this model is 800mW, which contributes to its efficient operation.
