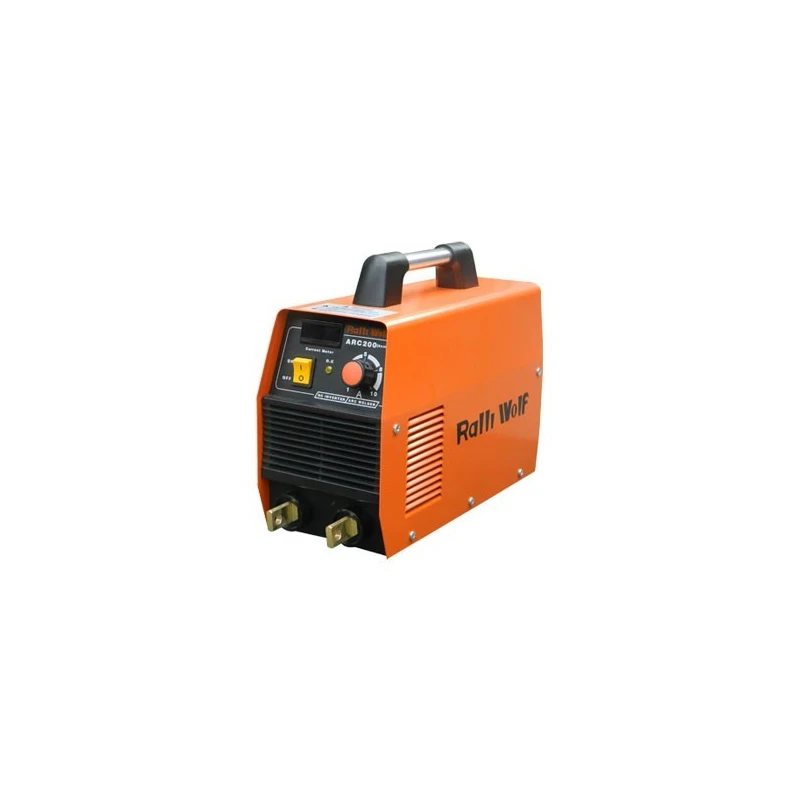

RalliWolf RA20 MOSFET Technology 1Ph./200 Amps output welding machine
Specifications
| Efficiency (%) | 80 |
|---|---|
| Product Type | ARC 200 |
| Model | RA20 |
| Weight | 8 kg |
| Insulation Class Type | F |
| Protection Class | IP 21 |
| Frequency(Hz) | 50 / 60 |
| Input Supply | AC 220 15% |
| Power Factor | 0.73 |
| Inverter Technology | MOSFET |
| No-Load Voltage (V) | 58 |
| Rated input current (A) | 43.6 |
| Rated Input Power Capacity | 9.59 KVA |
| Output current range (A) | 30 - 200 |
| Rated duty cycle (%) | 28 |
| Duty Cycle (%) | 60 |
| No-load Loss (W) | 40 |
Key Features
- High efficiency MMA DC welder
- Smooth & stable arc with minimum spatter and quality weld
- High efficiency and power factor reduces electricity bill
- Over / under voltage protection
- Over temperature / thermal protection
- Suitable for all category electrodes
- Conforms to BIS :4559
- The machines can be used with long extended cables at a considerable distance from the power source
Product Description
RalliWolf MOSFET Technology, 1Ph./200 Amps output welding machine, RA20, A welding machine is a powerful tool used to fuse two pieces of metal together. This machine holds the metal pieces in place, melts them, and uses pressure to join them. It is an essential tool for any construction-related job which requires metalwork.
- Digital display of the parameters
- Display of both set and load current
- TIG/ Argon welding with scratch / lift arc start with optional TIG accessories
- VRD feature – power coated ecofriendly power source. The equipments can be used for MMA/ TIG ( lift arc) and Gouging ( 400 Amps and above)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current range of this welding machine is 30 to 200 Amps.
This model supports MMA (Manual Metal Arc) and TIG (Tungsten Inert Gas) welding with lift arc start, as well as gouging for applications requiring 400 Amps and above.
The rated input power capacity is 9.59 KVA.
This unit weighs 8 kg.
The insulation class type for this welding machine is Class F.
The protection class rating of this model is IP 21.
The efficiency of this unit is 80%.
The frequency requirement for this model is 50/60 Hz.
The no-load voltage for this welding machine is 58 V.
The rated duty cycle for this unit is 28%.
This model requires an AC input supply of 220V ±15%.
It includes a digital display of parameters, showing both set and load current, and has over/under voltage and over temperature protection features.
