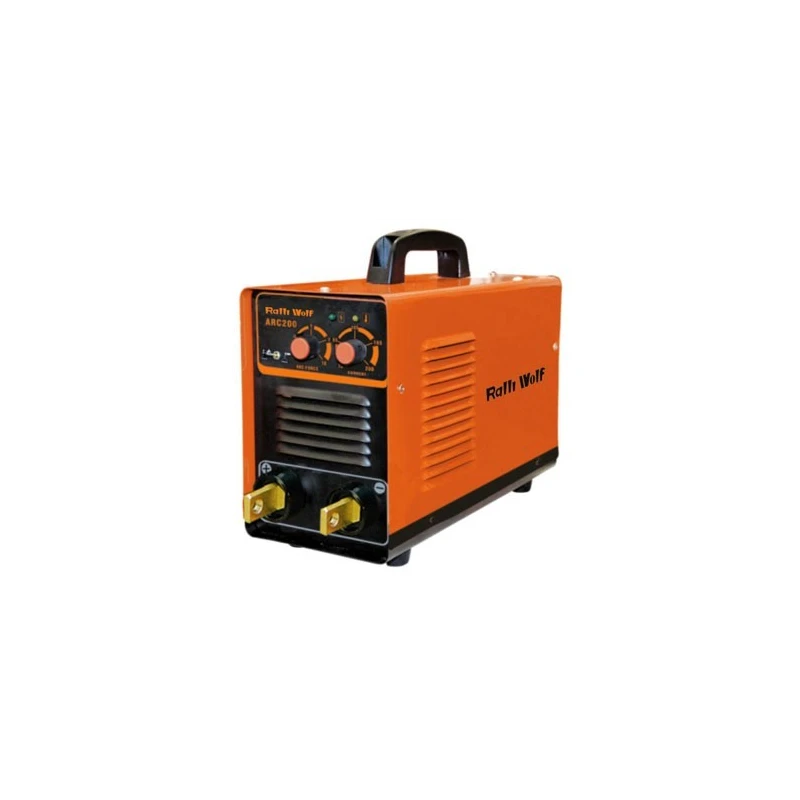

RalliWolf R76 IGBT Technology 1Ph./220 Amps output welding machine
Specifications
| Power | 10.1 KVA |
|---|---|
| Efficiency (%) | 85 |
| Product Type | ARC 200 |
| Model | R 76 |
| Weight | 8.2 kg |
| Insulation Class Type | F |
| Protection Class | IP 21 |
| Frequency(Hz) | 50 / 60 |
| Input Supply | AC 220 15% |
| Power Factor | 0.73 |
| Inverter Technology | IGBT |
| No-Load Voltage (V) | 70 |
| Rated input current (A) | 47 |
| Output current range (A) | 30 - 220 |
| Rated duty cycle (%) | 28 |
| Duty Cycle (%) | 60 |
| No-load Loss (W) | 40 |
Key Features
- High efficiency MMA DC welder
- Smooth & stable arc with minimum spatter and quality weld
- High efficiency and power factor reduces electricity bill
- Over / under voltage protection
- Over temperature / thermal protection
- Suitable for all category electrodes
- Conforms to BIS :4559
- The machines can be used with long extended cables at a considerable distance from the power source
Product Description
RalliWolf IGBT Technology, 1Ph./220 Amps output welding machine, R76, A welding machine is a powerful tool used to fuse two pieces of metal together. This machine holds the metal pieces in place, melts them, and uses pressure to join them. It is an essential tool for any construction-related job which requires metalwork.
- Digital display of the parameters
- Display of both set and load current
- TIG/ Argon welding with scratch / lift arc start with optional TIG accessories
- VRD feature – power coated ecofriendly power source. The equipments can be used for MMA/ TIG ( lift arc) and Gouging ( 400 Amps and above)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current range of this model is 30 to 220 amps.
This unit supports MMA (Manual Metal Arc) and TIG (Tungsten Inert Gas) welding with lift arc start when equipped with optional TIG accessories.
The power factor of this welding machine is 0.73.
It weighs 8.2 kg.
The input supply for this model is AC 220V with a tolerance of 15%.
The rated duty cycle of this welding machine is 28%.
This model conforms to insulation class type F.
The no-load voltage for this unit is 70 volts.
The efficiency of this welding machine is 85%.
It has a protection class rating of IP 21.
The maximum power output of this model is 10.1 KVA.
It includes over/under voltage protection and over temperature/thermal protection features.
