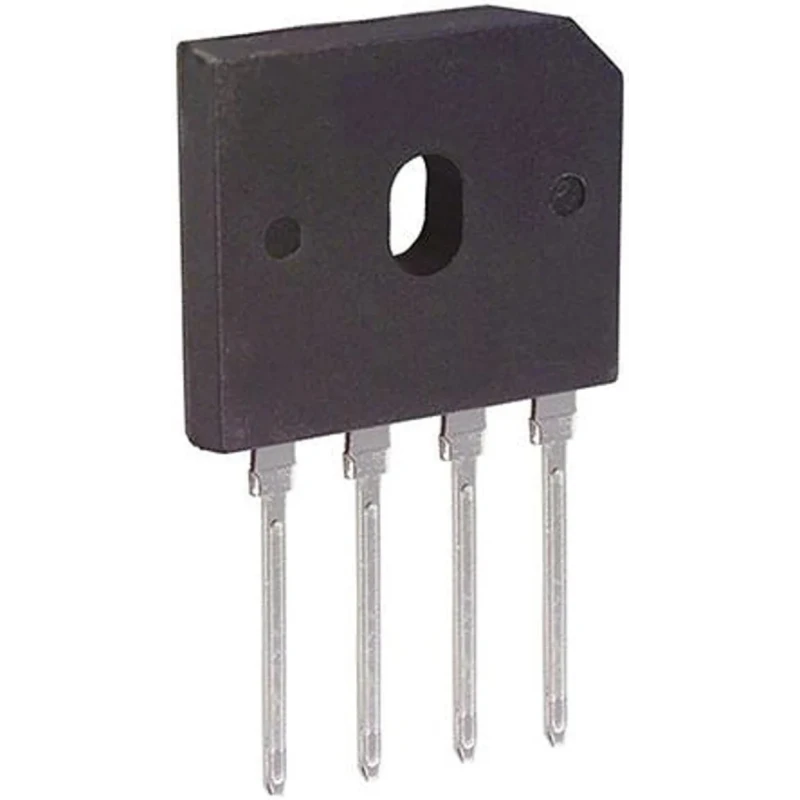

DiodesZetex 1000 V 220 A Bridge Rectifier, 4-Pin SIL PCB Mounting GBU1010

DiodesZetex GBU1010 Bridge Rectifier is a high-performance semiconductor device engineered for efficient AC to DC conversion in electronic systems. It features a peak reverse repetitive voltage rating of 1000 V and is capable of handling a forward current of 10 A, making it suitable for robust power conversion tasks.

The device comes in a single-phase configuration with 4 pins and is packaged in a GBU package designed for through-hole SIL PCB mounting. With operational temperature limits from -55°C up to 150°C, this rectifier is built to withstand demanding industrial and electronic environments.

Its forward surge current rating is a substantial 220 A peak non-repetitive surge, accommodating transient spikes without damage. The low peak forward voltage of 1 V ensures minimal power dissipation, enhancing overall circuit efficiency.

Compact physical dimensions of 22.3 mm length, 3.56 mm width, and 18.8 mm height allow easy integration into printed circuit boards where space optimization is critical. The device also boasts a high dielectric strength of 1500 V RMS, adding robustness and reliability in high voltage applications.

Low reverse leakage current of 500 μA maintains stable operation and prolongs device lifespan. While not specifically rated for automotive applications, its UL E94661 compliance assures adherence to recognized safety standards.

This bridge rectifier is ideal for use in electronic power supplies, industrial control circuits, and other applications where conversion from alternating current to direct current is required with high reliability and efficiency.

Rated for maximum peak non-repetitive forward surge current of 220 A. Operates reliably between -55°C and 150°C temperature range. Constructed with a SIL PCB mounting package type GBU for easy through-hole installation. Features low peak forward voltage of 1 V to minimize power loss.

Compact dimensions with length 22.3 mm, width 3.56 mm, and height 18.8 mm. Designed with a robust package offering high case dielectric strength of 1500 V RMS. Ideal for applications in power supply circuits requiring efficient rectification of AC signal.

Maintains low reverse leakage current of 500 μA for stable performance. Complies with UL E94661 standard for safety. Browse more semiconductor devices and Bridge Rectifiers at EnvMart for industrial, electronic component, and power conversion needs.
