DiodesZetex PNP Transistor ZXTP19060CFFTA, -4 A Collector Current, -60 V Collector Emitter Voltage, 3-Pin SOT-23 Package

DiodesZetex ZXTP19060CFFTA is a general-purpose PNP bipolar transistor designed for robust electronic circuit applications including power amplification, switching, and automotive-grade usage. It features a maximum DC collector current of -4 A and a maximum collector emitter voltage of -60 V, offering reliable performance in compact electronics.

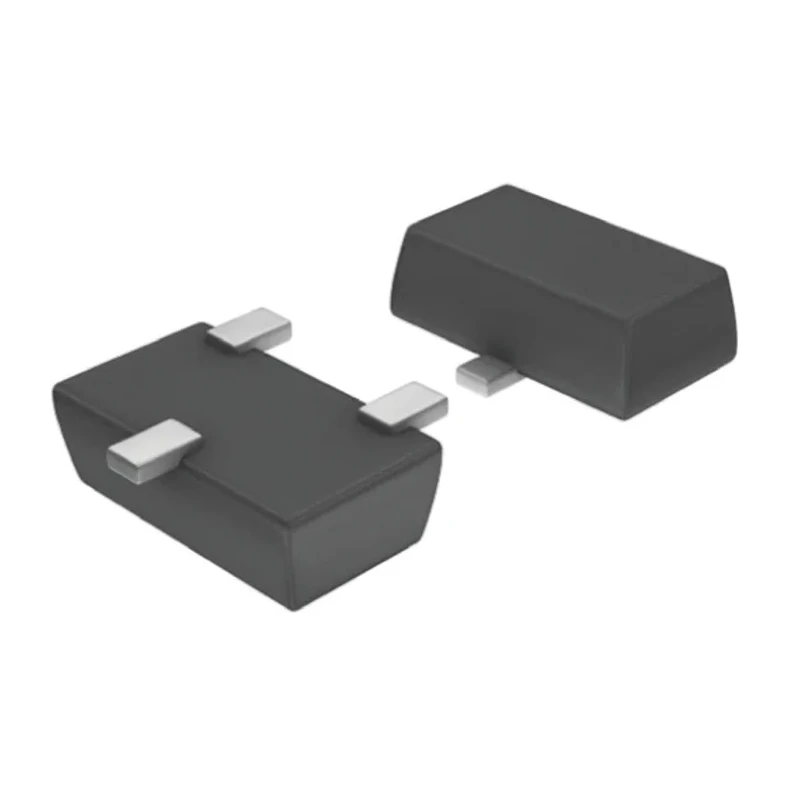

Housed in a surface mount 3-pin SOT-23 package, the transistor's compact dimensions (3 mm length, 2.5 mm width, 1 mm height) and surface mount technology make it ideal for modern PCB assembly and miniaturized designs.

The component operates efficiently over a wide temperature range from -55°C to 150°C with a maximum power dissipation of 2 W, making it suited for demanding industrial, automotive, and consumer electronics applications. Its maximum transition frequency of 180 MHz supports usage in high-frequency switching and signal processing circuits.

With a minimum DC current gain (hFE) of 30 and specified transistor configuration as single PNP type, this transistor provides solid amplification characteristics for various electronic circuits. It complies with automotive standard AEC-Q101 within the ZXTPX series, assuring quality and reliability.

Typical use cases include power regulation, switching circuits in industrial machinery, automotive electronics, and general-purpose amplification. The transistor is an essential discrete semiconductor suitable for engineers in electronics design and manufacturing looking for dependable PNP devices.

Maximum DC collector current of -4 A ensures high load capacity. Collector emitter voltage rating of -60 V allows for various voltage applications. Surface mount SOT-23 package supports ease of integration in PCBs. Wide operating temperature range from -55°C to 150°C supports harsh environments.

Power dissipation rating of 2 W helps maintain thermal stability. High transition frequency of 180 MHz supports RF and switching uses. Minimum DC current gain (hFE) of 30 ensures amplification performance. Automotive AEC-Q101 certified assuring industry standard reliability.

Compact size dimensions enable usage in space-limited applications.
