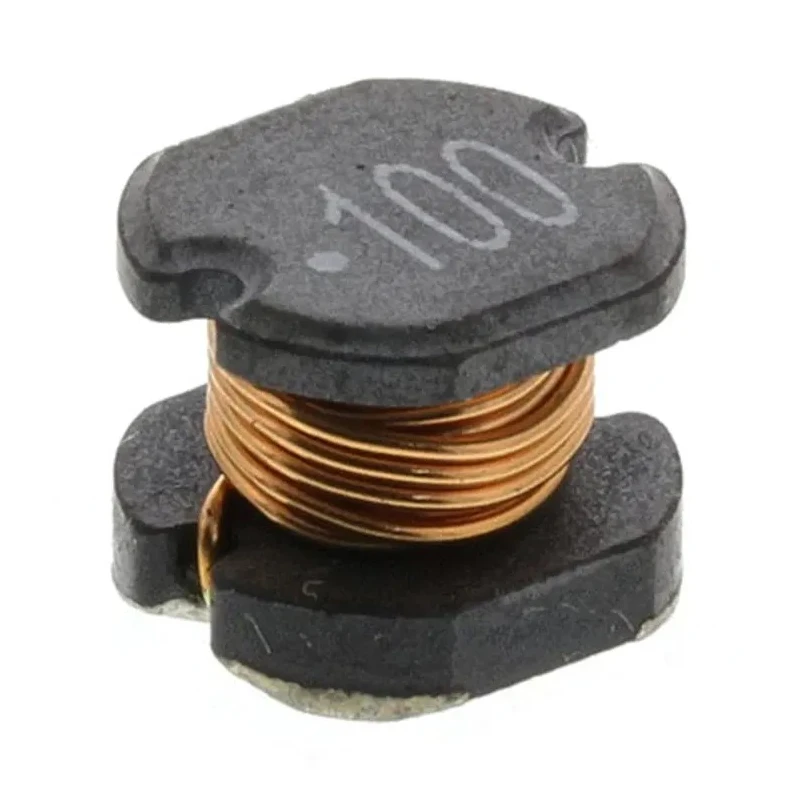

Wurth Elektronik Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20 % 2.2 A Idc 74477410
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 5.8mm |
| Model | 74477410 |
| Depth | 5.2mm |
| Packaging | Tape & Reel |
| Series | WE-PD2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.2A |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Lötpad/soldering spec |
| Maximum Self Resonant Frequency | 26MHz |
| Automotive Standard | AEC-Q200 |
Key Features
- High-quality ferrite core construction ensures efficient inductance characteristics.
- Suitable for surface mount technology with a compact size of 5.8 mm length and 4.5 mm height.
- AEC-Q200 automotive standard rated for reliable performance in harsh environments.
- Maximum DC resistance is low at 100 mΩ, minimizing power loss.
- Temperature range from -40°C to 125°C supports extreme operating conditions.
- Packaged in tape and reel format for efficient automated assembly.
- Maximum self-resonant frequency of 26 MHz suitable for high-frequency switching regulator applications.
- Recommended for use in switching regulators, DC/DC converters, and power management.
Product Description
Wurth Elektronik 74477410 is an unshielded wirewound surface mount inductor featuring a ferrite core with inductance of 10 μH and tolerance of ±20%. It supports a maximum DC current of 2.2 A and is designed for use in a variety of industrial electronic applications such as switching regulators and integrated DC/DC converters.
The component measures 5.8 mm in length, 5.2 mm in depth, and 4.5 mm in height, making it compact and ideal for surface mount technology applications. Its construction with a ferrite core allows for reliable magnetic performance and is compliant with the RoHS directive.
This inductor complies with the AEC-Q200 automotive standard, ensuring suitability for automotive and other demanding environments. It offers a low maximum DC resistance of 100 mΩ to optimize efficiency and reduce power losses.
Operating temperature ranges from -40°C to 125°C, providing robustness for use in extreme ambient conditions. The product is packaged in tape and reel format, supporting efficient automated PCB assembly processes.
The maximum self-resonant frequency is 26 MHz, making it highly suitable for high-frequency applications such as switching regulators to achieve excellent efficiency in power supply circuits.
High-quality ferrite core construction ensures efficient inductance characteristics. Compact dimensions and surface mount form factor enable space-saving PCB layouts. AEC-Q200 certification guarantees reliability in automotive and industrial applications.
Low DC resistance reduces energy losses and thermal buildup. Wide operating temperature range supports diverse environmental conditions. Tape and reel packaging facilitates mass production assembly. High self-resonant frequency ideal for switching regulator circuits.
This Wurth Elektronik inductor is an essential passive component for electronics manufacturing, supporting industrial, automotive, and commercial electronic design needs. Explore additional products in the Surface Mount Inductors category on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH with a tolerance of ±20%.
This model supports a maximum DC current of 2.2 A.
The inductor measures 5.8 mm in length, 5.2 mm in depth, and 4.5 mm in height.
The maximum self-resonant frequency is 26 MHz, making it suitable for high-frequency applications.
It can operate in a temperature range from -40°C to 125°C.
The core material used in this inductor is ferrite.
This inductor complies with the AEC-Q200 automotive standard, ensuring reliability in automotive environments.
It is packaged in tape and reel format, which supports efficient automated assembly processes.
The maximum DC resistance is 100 mΩ, which helps minimize power loss.
It is recommended for use in switching regulators, DC/DC converters, and power management applications.
The termination style of this inductor is suitable for soldering, specifically Lötpad/soldering spec.
Yes, this inductor is compliant with the RoHS directive.
