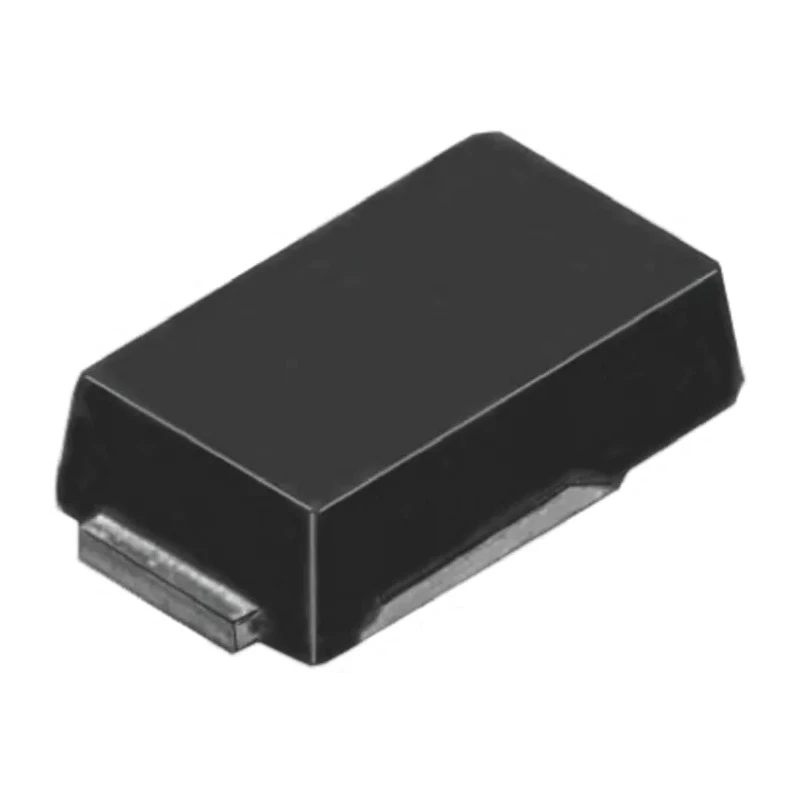

Vishay 100 V 2 A High Performance Schottky Diode, Surface Mount SMP Package SS2PH10HM3_A/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | SS2PH10HM3_A/H |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | SS2PH10 |
| Maximum Operating Temperature | 175°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- High performance Schottky rectifier diode with low forward voltage drop.
- Maximum continuous forward current of 2 A enabling efficient power handling.
- Peak reverse repetitive voltage rating of 100 V ensures device robustness.
- Extremely fast switching and low reverse current with 1 μA peak reverse current.
- Wide operating temperature range from -55°C to maximum 175°C.
- Peak non-repetitive forward surge current of 50 A for handling transient conditions.
- Single diode configuration with 2-pin design for easy PCB integration.
- Manufactured in China, designed for industrial and electronic component applications.
Product Description
Vishay SS2PH10HM3_A/H is a high performance Schottky diode designed for demanding electronic applications requiring fast switching and low power loss. It is constructed in a compact SMP surface mount package, providing efficient thermal performance and ease of integration on printed circuit boards.
This diode supports a maximum continuous forward current of 2 A and can withstand peak repetitive reverse voltages of up to 100 V. Its low forward voltage drop of 0.62 V contributes to improved energy efficiency in power rectification circuits.
With a minimal peak reverse current of 1 μA, the diode exhibits excellent blocking capabilities, making it ideal for power supply, industrial control, automotive, and communication system applications.
The device operates over a wide temperature range from -55°C to 175°C, ensuring reliable performance in harsh environmental conditions. The peak surge current rating of 50 A allows it to handle transient surges without damage.
Its 2-pin single diode configuration and small physical size (3.61 mm length, 2.18 mm width, and 1.15 mm height) make it suitable for space-constrained designs. This part is manufactured in China following Vishay’s quality standards, though it does not carry specific standards or automotive certifications.
High performance Schottky rectifier diode with low forward voltage drop. Maximum continuous forward current of 2 A for power efficiency. 100 V peak repetitive reverse voltage rating supports robust operation. Surface mount SMP package for compact PCB footprint.
Very low peak reverse current of 1 μA enhances blocking performance. Operating temperature range from -55°C to 175°C for harsh environments. 50 A peak non-repetitive forward surge current for transient tolerance. Single diode, 2-pin configuration suitable for diverse electronic applications.
Manufactured in China adhering to Vishay’s high-quality standards.
Commonly applied in industrial electronics, power management systems, and communications equipment, the Vishay SS2PH10HM3_A/H diode offers reliable performance with efficiency and durability. Explore more electronic components and semiconductor products in the EnvMart catalog for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A, allowing for efficient power handling in various applications.
The maximum forward voltage drop for this diode is 0.62 V, contributing to improved energy efficiency in power rectification circuits.
The dimensions of this unit are 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height, allowing for compact PCB integration.
It has a peak non-repetitive forward surge current rating of 50 A, enabling it to handle transient conditions effectively.
This diode is housed in a surface mount SMP package, which provides efficient thermal performance and ease of integration on printed circuit boards.
The SS2PH10HM3_A/H features a 2-pin configuration, which simplifies its integration into electronic circuits.
This model is commonly applied in power supply, industrial control, automotive, and communication system applications due to its performance characteristics.
This diode is manufactured in China, adhering to Vishay's quality standards.
It is a Schottky rectifier type, known for its fast switching capabilities and low forward voltage drop.
