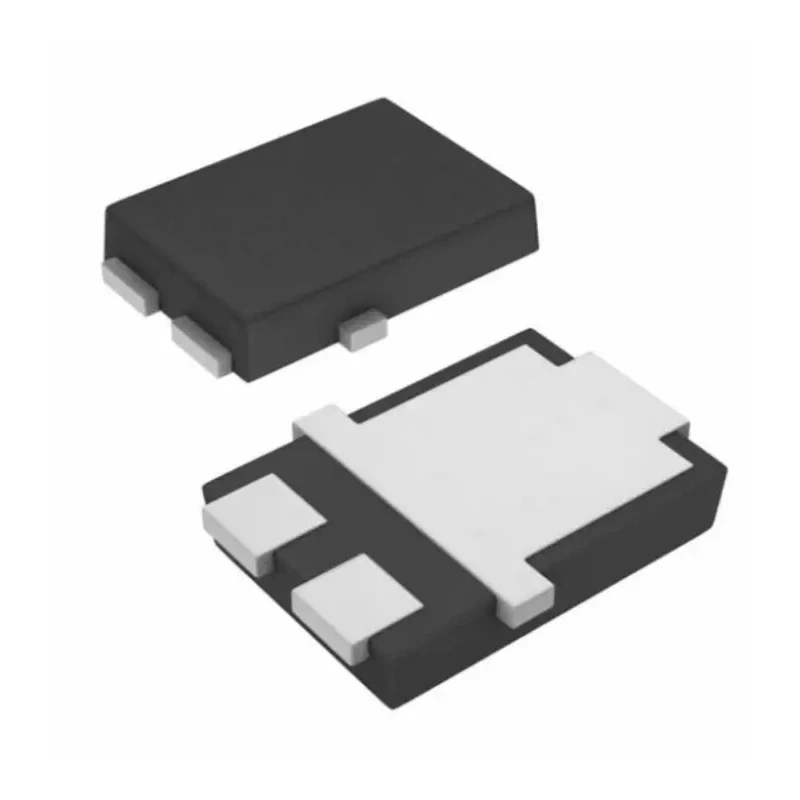

Vishay 100 V 10 A Schottky Diode 3-Pin TO-277 V10P10-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.35mm |
| Model | V10P10-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | V10 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 620mV |
Key Features
- Features a patented trench MOS barrier structure for improved efficiency.
- Maximum forward voltage of 620 mV ensures low power loss.
- Supports peak non-repetitive forward surge current of 180 A.
- Wide operating temperature range from -40°C to 150°C.
- Compact TO-277 package with 3 pins for surface mount applications.
- Complies with automotive standard AEC-Q101 for reliability.
- Designed for high power density and fast switching in AC/DC converters.
- Suitable for power electronics, automotive, and industrial applications.
Product Description
Vishay V10P10-M3/86A Schottky Diode with 3-pin TO-277 package is engineered for efficient power rectification in industrial and automotive electronics. It offers a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 100 V, making it suitable for high-performance switching power supplies, DC/DC converters, and other power management systems.
This diode features Vishay's patented trench MOS barrier Schottky (TMBS) technology that reduces minority carrier injection, minimizes stored charge, and thereby improves switching speeds and overall efficiency compared to planar Schottky devices. The maximum forward voltage of 620 mV ensures low conduction losses, enhancing system power management.
The device supports a peak non-repetitive forward surge current of 180 A, enabling it to withstand transient overloads. Operating temperature ranges from -40°C to 150°C, allowing robust operation in harsh environments. The TO-277 surface-mount package with dimensions 4.35 mm long, 6.15 mm wide, and 1.2 mm high facilitates compact PCB layouts.
Engineered under automotive standard AEC-Q101, this Vishay diode is qualified for automotive-grade reliability and quality, making it ideal for automotive power electronics and industrial equipment that demand high durability and performance.
Features a patented trench MOS barrier structure for improved efficiency. Maximum forward voltage of 620 mV ensures low power loss. Peak forward surge current rating of 180 A for transient conditions. Wide operating temperature: -40°C to 150°C for harsh environments.
Compact TO-277 3-pin surface mount package. Automotive AEC-Q101 qualified for high reliability. Low peak reverse current of 150 µA minimizes leakage losses. Dimensions: 4.35 mm length, 6.15 mm width, 1.2 mm height. Ideal for AC/DC switched-mode power supplies and DC/DC converters.
Manufactured in China under strict quality standards.
This Schottky diode is widely used in industrial, automotive, laboratory, and power conversion applications requiring fast switching and high efficiency. Its robust electrical and mechanical characteristics support demanding electronic systems. Explore more Vishay semiconductor components and power management solutions with EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 10 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop for this diode is 620 mV, ensuring low power loss.
It can support a peak non-repetitive forward surge current of 180 A.
The TO-277 package dimensions are 4.35 mm in length, 6.15 mm in width, and 1.2 mm in height.
The operating temperature range is from -40°C to 150°C, allowing for robust operation in harsh environments.
This diode complies with the automotive standard AEC-Q101 for reliability.
The peak reverse current rating for this diode is 150 µA, which minimizes leakage losses.
This model features a surface mount configuration.
It is suitable for applications in power electronics, automotive, and industrial systems requiring high efficiency and fast switching.
The diode configuration for this model is single.
This diode is manufactured in China under strict quality standards.
