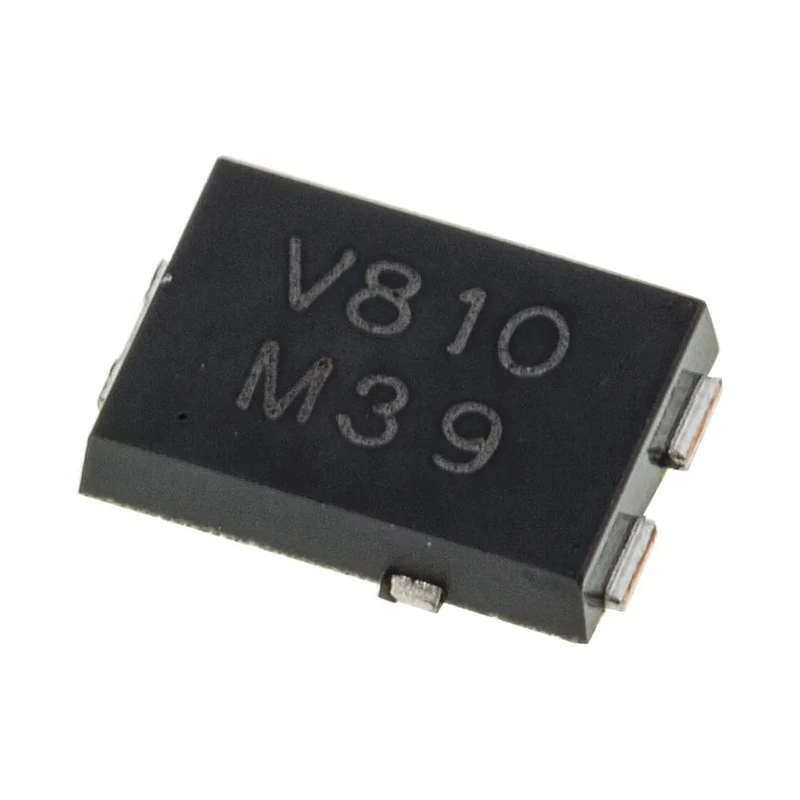

Vishay 100 V 8 A Surface Mount Trench MOS Barrier Schottky Diode 3-Pin TO-277 V8P10-M3/86A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.65mm |
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.35mm |
| Model | V8P10-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | V8PX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 70μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 680mV |
Key Features
- This diode uses the TO-277 package type providing robust mechanical and thermal performance.
- It supports high surge currents up to 150 A peak non-repetitive forward surge current.
- Operates reliably over a temperature range from -40°C to 150°C.
- The diode configuration is single with 3 pins for easy PCB mounting.
- Maximum forward voltage drop is 680 mV enabling efficient power rectification.
- Peak reverse current is minimal at 70 µA ensuring low leakage and energy loss.
- Compliance to Automotive Standard AEC-Q101 guarantees suitability for automotive electronic applications.
- Compact dimensions including 6.65 mm diameter, 6.15 mm width, 4.35 mm length, and 1.2 mm height.
Product Description
Vishay V8P10-M3/86A is a high-performance Schottky diode designed with a patented Trench MOS Barrier Schottky (TMBS) structure that efficiently reduces minority carrier injection to the drift region. This feature dramatically cuts stored charges and enhances the switching speeds compared to traditional planar Schottky diodes, especially at operating voltages above 45 V.
Built for surface mounting, this diode comes in a TO-277 package with a 3-pin configuration that facilitates installation on printed circuit boards. It can handle a continuous forward current of 8 A and withstand peak surge currents up to 150 A, making it suitable for demanding power conversion tasks.
The V8P10-M3/86A supports a maximum reverse repetitive voltage of 100 V and has a forward voltage drop as low as 680 mV, enhancing efficiency in power rectification and reducing thermal losses. The minimal peak reverse current of 70 microamps minimizes inefficiencies related to leakage current.
Its operating temperature range spans from -40°C to 150°C, which allows reliable application in harsh environments including industrial, automotive, and control systems. The diode complies with the automotive AEC-Q101 standard, ensuring durability and performance in automotive electronic assemblies.
Compact physical dimensions enable integration where space is a premium, measuring 6.65 mm in diameter, 6.15 mm in width, 4.35 mm in length, and 1.2 mm in height. This diode is ideal for use in AC/DC switched mode power supplies, DC/DC converters, and other industrial electronic devices requiring high efficiency and fast switching.
Surface mount diode in TO-277 package provides excellent electrical and mechanical stability. Patented TMBS technology reduces stored charge, improves switching speed and efficiency. Handles continuous forward current of 8 amperes with peak non-repetitive surge up to 150 amperes.
Operating temperature range of -40°C to 150°C supports various environmental conditions. Low forward voltage drop (680 mV) ensures minimal power loss. Minimal peak reverse current (70 µA) limits leakage to enhance performance.
Complies with automotive industry standard AEC-Q101 for enhanced reliability. Compact and precise dimensions allow easy PCB integration.
Suitable for industrial, automotive, and power electronics applications, Vishay V8P10-M3/86A Schottky diode ensures high power density and low forward voltage drop. Browse the broad range of Schottky Diodes & Rectifiers in the Electronics & Electricals category on EnvMart for compatible and complementary components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay V8P10-M3/86A Schottky diode is 8 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop for this diode is 680 mV, which aids in efficient power rectification.
The dimensions of the TO-277 package are 6.65 mm in diameter, 6.15 mm in width, 4.35 mm in length, and 1.2 mm in height.
This diode can withstand a peak non-repetitive forward surge current of up to 150 A.
The operating temperature range for the Vishay V8P10-M3/86A is from -40°C to 150°C.
The peak reverse current for this model is minimal at 70 µA, which helps reduce leakage.
Yes, it complies with the automotive standard AEC-Q101, ensuring its suitability for automotive electronic applications.
This diode is designed for surface mounting, making it suitable for PCB installation.
The diode configuration for this model is single with 3 pins.
This diode is suitable for applications in AC/DC switched mode power supplies, DC/DC converters, and other industrial electronic devices requiring high efficiency and fast switching.
The patented Trench MOS Barrier Schottky (TMBS) technology reduces stored charge and enhances switching speeds, making it more efficient than traditional planar Schottky diodes.
