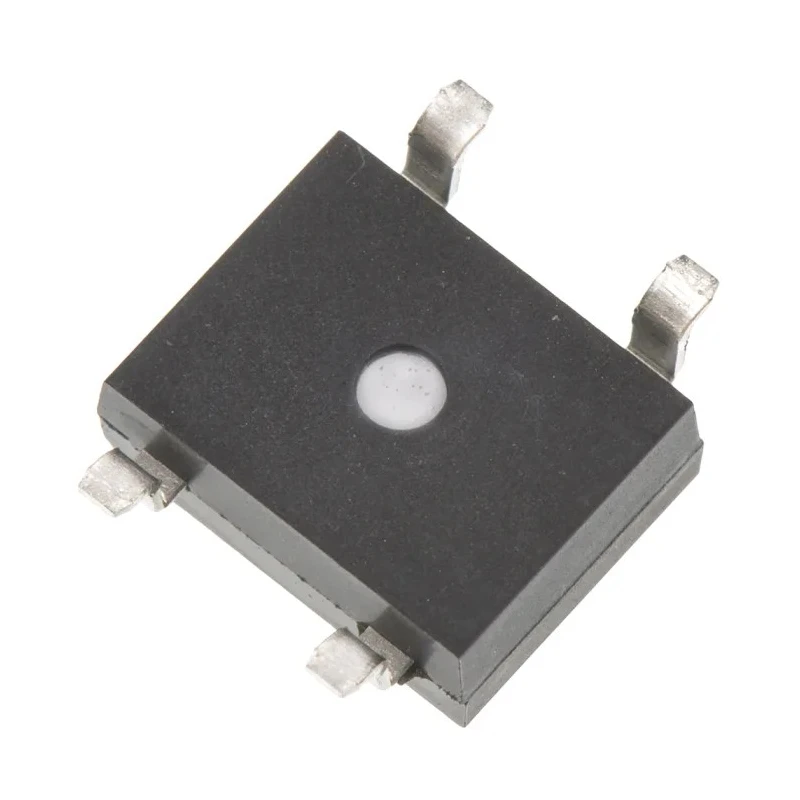

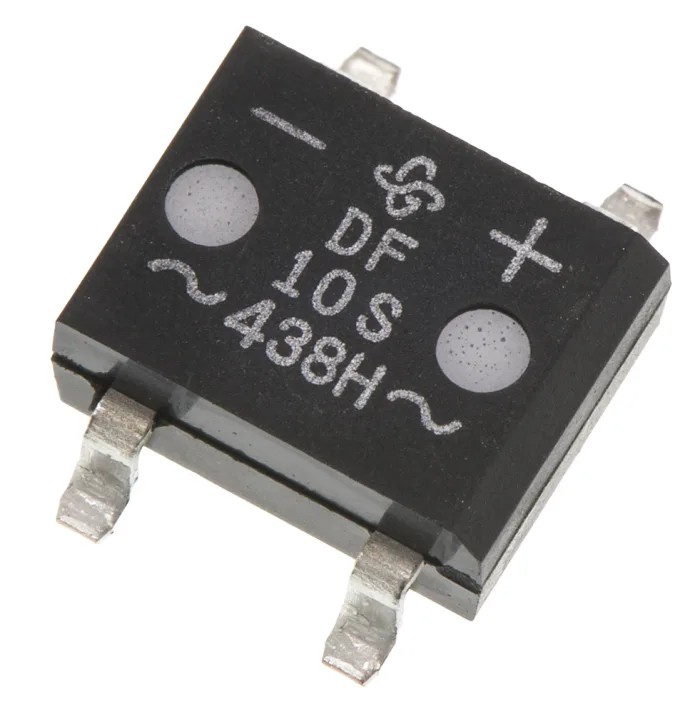

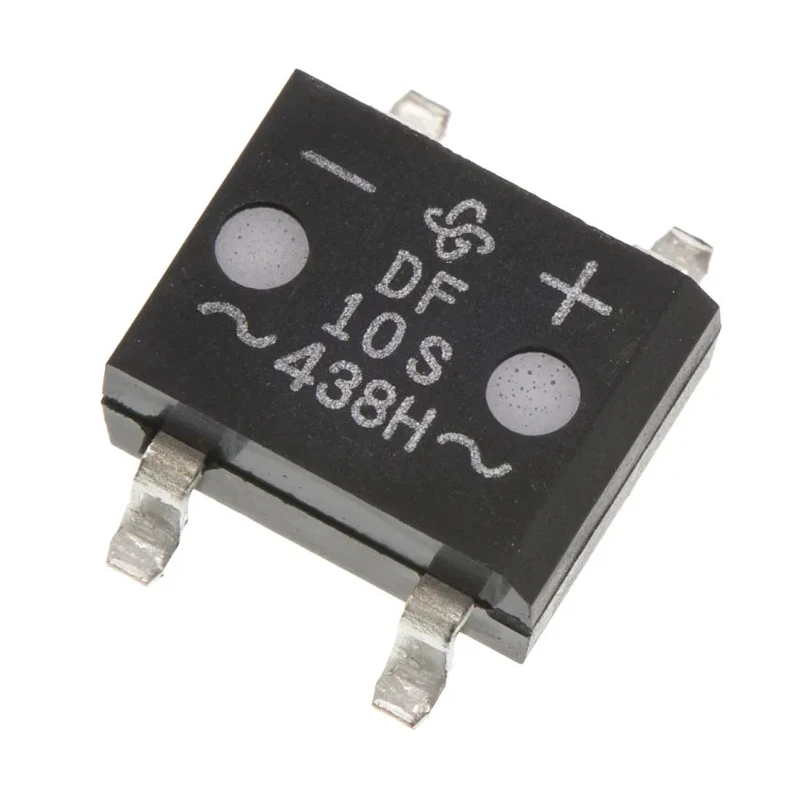

Vishay Bridge Rectifier DFS Package, 4-Pin Single Phase, 1000 V Peak Reverse Voltage, 50 A Peak Surge Current DF10S-E3/77

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier DFS Package, 4-Pin Single Phase, 1000 V Peak Reverse Voltage, 50 A Peak Surge Current DF10S-E3/77

Name: Vishay Bridge Rectifier DFS Package, 4-Pin Single Phase, 1000 V Peak Reverse Voltage, 50 A Peak Surge Current DF10S-E3/77
Brand: Vishay
SKU: 218013
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	3.3mm
Length	8.51mm
Model	DF10S-E3/77
Width	6.5mm
Mount Type	Surface
Series	DF
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1A
Peak Forward Voltage Vf	1.1V

Key Features

DFS package designed for surface mount applications.
High surge current capability ensuring robust operation.
Low DC reverse current minimizing power loss.
Operational temperature range from -55°C to 150°C.
Ideal for printed circuit board reflow soldering automation.
Compact dimensions with 8.51 mm length and 6.5 mm width.
Peak forward voltage of 1.1 V enables efficient rectification.
Designed for converting AC to DC in full-wave rectification circuits.

Product Description

Vishay DF10S-E3/77 Bridge Rectifier is a highly reliable electronic component designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification. It features a single-phase, four-pin DFS package optimized for surface mount technology (SMT) on printed circuit boards (PCBs).

This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 1000 V and a forward current (If) of 1 A, with a peak non-repetitive forward surge current (Ifsm) rating of 50 A. It operates efficiently with a peak forward voltage (Vf) of 1.1 V and exhibits a minimal peak reverse current (Ir) of 5 μA, enhancing energy efficiency.

Its compact size, measuring 8.51 mm in length, 6.5 mm in width, and 3.3 mm in height, makes it suitable for high-density electronic assemblies. The device can function across a broad temperature range from -55°C to 150°C, making it suitable for diverse environments.

Vishay’s DF series bridge rectifiers are known for their high surge current capability and low DC reverse current, allowing improved performance in power supply circuits. The design is ideal for automated PCB placement and reflow soldering processes, enhancing manufacturing efficiency.

This component is widely applicable in industrial, electronic manufacturing, power supply, and commercial electronics sectors where reliable AC to DC rectification is essential. DFS package designed for surface mount applications.

High surge current capability ensuring robust operation. Low DC reverse current minimizing power loss. Operational temperature range from -55°C to 150°C. Ideal for printed circuit board reflow soldering automation. Compact dimensions with 8.51 mm length and 6.5 mm width.

Peak forward voltage of 1.1 V enables efficient rectification. Designed for converting AC to DC in full-wave rectification circuits. Manufactured in China, ensuring consistent quality. Explore more Vishay semiconductor Bridge Rectifiers and electronic components on EnvMart for industrial and commercial applications.
