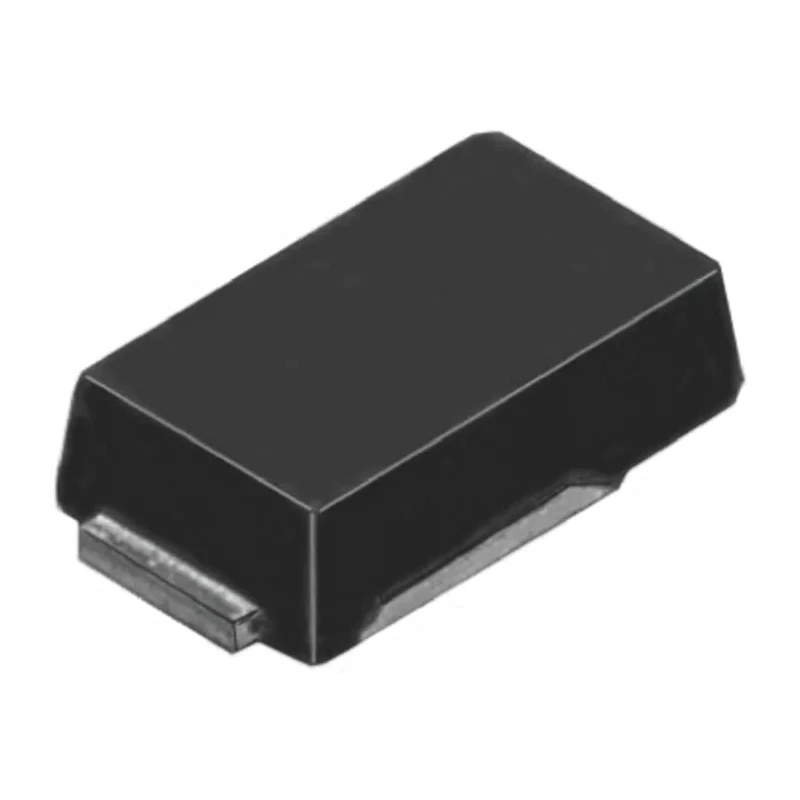

Vishay 40 V 2 A Schottky Diode 2-Pin Surface Mount SMP SS2P4-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | SS2P4-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | SS2P4 |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- Maximum continuous forward current of 2 amperes.
- Peak reverse repetitive voltage rating of 40 volts.
- Low forward voltage drop of 0.5 volts for efficiency.
- Compact 2-pin surface mount SMP package measuring 3.61mm x 2.18mm x 1.15mm.
- Operating temperature range from -55°C to 150°C.
- Extremely fast switching action ideal for power applications.
- Peak non-repetitive forward surge current rated at 50 amperes.
- Single diode configuration with low peak reverse current of 150 microamperes.
Product Description
Vishay SS2P4-M3/84A is a high performance Schottky diode designed for efficient rectification in electronic circuits. It has a maximum continuous forward current of 2 amperes and a peak reverse repetitive voltage of 40 volts, making it suitable for various power applications requiring fast switching and low power loss.
This diode is housed in a compact 2-pin surface mount SMP package with dimensions 3.61 mm length, 2.18 mm width, and 1.15 mm height, allowing for space-saving PCB layouts and easy integration into automated manufacturing processes.
The device features a low forward voltage drop of 0.5 volts, which reduces power dissipation and increases efficiency in circuits. It supports a wide operating temperature range from -55°C to 150°C, ensuring reliable performance in harsh industrial and electronic environments.
The SS2P4-M3/84A diode exhibits extremely fast switching characteristics, ideal for switching power supplies, voltage clamping, and reverse polarity protection. Its peak non-repetitive forward surge current is rated at 50 amperes, providing robustness against transient current spikes.
Maximum continuous forward current of 2 amperes. Peak reverse repetitive voltage rating of 40 volts. Low forward voltage drop of 0.5 volts for efficient operation. Compact 2-pin surface mount SMP package for easy PCB integration.
Wide temperature range from -55°C to 150°C for industrial reliability. Single diode configuration with low leakage current. Fast switching suitable for power rectification and protection circuits. Peak surge current capability of 50 amperes for transient tolerance.
Country of origin: China. Designed for use in electronic components, power connectors, and semiconductor assemblies.
This Vishay Schottky diode series is widely used in industrial, electronics manufacturing, power supply units, automotive electronics, and telecommunications equipment. It ensures efficient energy conversion, reduced heat generation, and long-term durability.
Explore more Vishay semiconductor solutions and related electronic components in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay SS2P4-M3/84A Schottky diode is 2 amperes.
This diode has a peak reverse repetitive voltage rating of 40 volts.
The SMP package of this diode measures 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height.
The operating temperature range for this diode is from -55°C to 150°C.
The forward voltage drop of this model is 0.5 volts, which contributes to its efficiency.
The peak non-repetitive forward surge current for this diode is rated at 50 amperes.
This diode features a single diode configuration.
The peak reverse current for the Vishay SS2P4-M3/84A is 150 microamperes.
This Schottky diode is suitable for applications such as switching power supplies, voltage clamping, and reverse polarity protection.
The Vishay SS2P4-M3/84A is designed for surface mount installation.
The country of origin for this diode is China.
This diode belongs to the SS2P4 series.
