Vishay 60 V 1 A Schottky Diode 2-Pin SMP MSS1P6-M3/89A

Vishay MSS1P6-M3/89A Schottky Diode 2-Pin SMP is a high-performance semiconductor device designed for power rectification and fast switching in industrial and electronic applications. Rated at a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 60 V, this diode offers excellent efficiency with a low forward voltage drop of 680 mV. The diode configuration is single with a Schottky rectifier type, providing very fast switching action and minimal reverse recovery time, making it well suited for power supply circuits, switching regulators, and protection circuits.

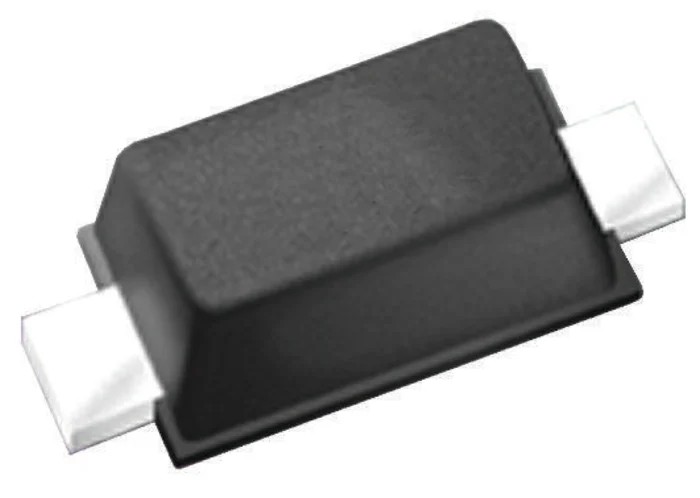

This diode is packaged in a compact SMP surface mount device form factor with precise dimensions of 2.3 mm length, 1.4 mm width, and 0.73 mm height, enabling optimized PCB space utilization in high-density electronic designs. It operates reliably within a broad temperature range of -55°C to 150°C and complies with automotive standard AEC-Q101 to meet the strict quality and durability demands of automotive electronics.

The device also conforms to recognized standards including JESD 201 Class 2 whisker test, J-STD-020, RoHS compliance, and UL 94 V-0 flammability rating, ensuring safe use in diverse industrial environments. Manufacturing origin is China, reflecting Vishay's global semiconductor manufacturing capabilities.

Common applications include use in power management, voltage clamping, and noise suppression in industrial, automotive, telecommunications, and consumer electronics sectors. The diode's fast switching reduces power losses and increases overall system efficiency.

Surface mount SMP package for compact and efficient PCB integration. Maximum continuous forward current of 1 A for moderate power applications. Peak reverse voltage rating of 60 V suitable for various industrial circuits.

Extremely low forward voltage drop reduces power dissipation. Permits rapid switching transitions for efficiency in regulators and inverters. Wide operating temperature range supports harsh environments. Automotive standard compliance ensures usage in safety-critical systems.

Industry-recognized quality and safety certifications. Compact dimensions optimize board real estate. Ideal for power supply design, switching, and protection in industrial and automotive electronics. Explore the Vishay product range and related Schottky diodes at EnvMart for efficient and reliable semiconductor solutions in your electronic designs.
