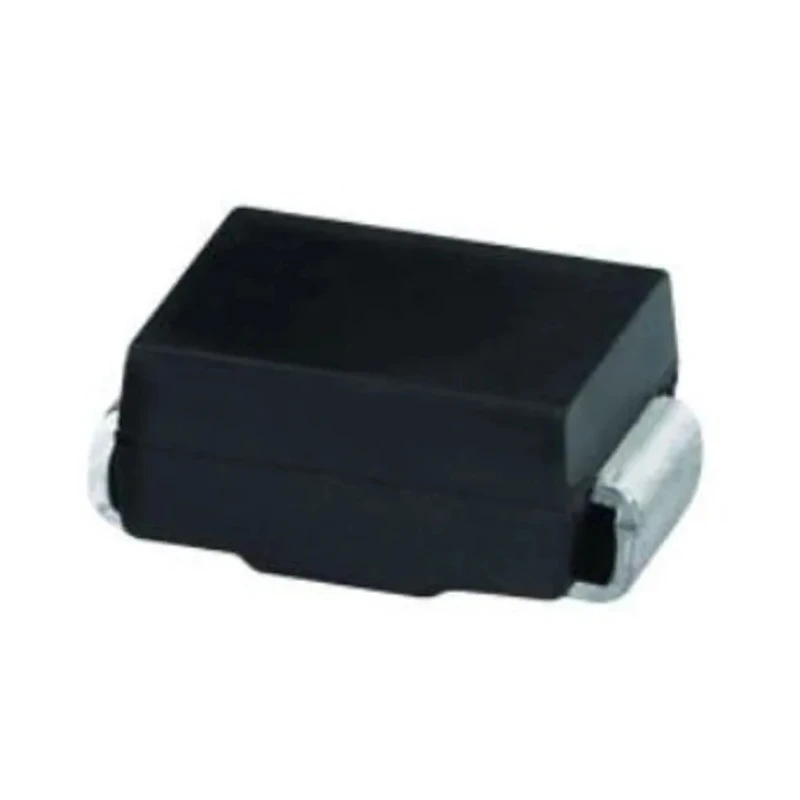

Vishay 200 V 2 A General Purpose Ultrafast Recovery Diode 2-Pin DO-214AA ES2D-E3/5BT

Vishay ES2D-E3/5BT is a high-performance ultrafast recovery rectifier diode rated for 200 V peak reverse voltage and 2 A continuous forward current. It features a surface mount DO-214AA package suitable for compact electronic designs. This general purpose diode offers low forward voltage drop of 900 mV and ultrafast reverse recovery time of 30 ns, optimizing efficiency in switching mode power supplies, inverters, and other high frequency rectification applications.

The diode withstands temperatures from -55°C to 150°C, making it suitable for harsh industrial, automotive, and consumer electronics environments. It incorporates a glass passivated chip junction and matte tin-plated solderable leads meeting J-STD-002 standards for enhanced reliability and solder joint integrity. The moulding compound meets UL 94 V-0 flammability rating, ensuring safety compliance.

Key mechanical dimensions include a length of 4.57 mm, width of 3.94 mm, and height of 2.24 mm. The device also complies with automotive standard AEC-Q101 and several international standards including RoHS, WEEE, UL, and JESD 201, facilitating application across various global markets.

This diode is ideal for high frequency rectification and freewheeling in switching converters and inverters used in consumer electronics, telecommunications, and computer hardware.

Maximum continuous forward current of 2 A. Peak reverse repetitive voltage of 200 V. Ultrafast reverse recovery time of 30 ns. Low forward voltage drop of 900 mV. Temperature operation range from -55°C to 150°C. DO-214AA (SMB) package with UL 94 V-0 flammability rating.

Matte tin-plated, solderable leads compliant with J-STD-002. Automotive grade AEC-Q101 certification. Colour band marking cathode polarity. Explore the reliable and efficient Vishay semiconductor diode solutions in the Electronics & Electricals category at EnvMart.
