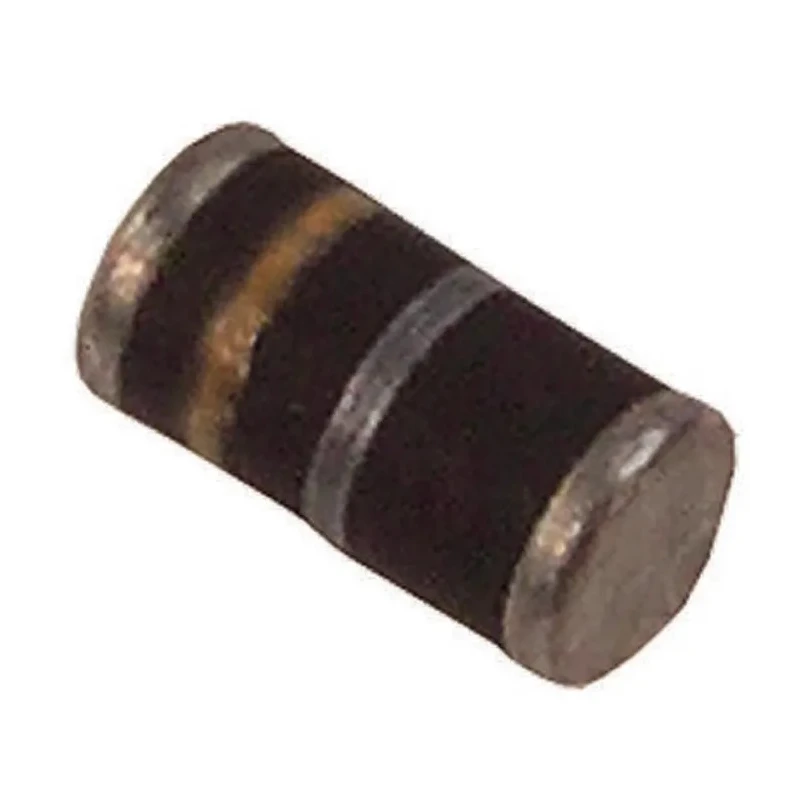

Vishay 400 V 500 mA General Purpose 2-Pin DO-213AA Diode BYM07-400-E3/98

Vishay BYM07-400-E3/98 is a general purpose diode designed for surface mount applications in electronic circuits requiring reliable switching and rectification. This diode supports a maximum continuous forward current of 500 mA and a peak reverse repetitive voltage of 400 V, making it suitable for medium voltage rectifier circuits.

Its superectifier structure and cavity-free glass-passivated junction deliver high reliability and fast switching performance, with a peak reverse recovery time of 50 ns. The diode features very low leakage current, typically below 0.2 μA, and can sustain surge currents up to 10 A, ensuring robustness in transient conditions.

Manufactured in Taiwan, it meets the RoHS directive and complies with the automotive AEC-Q101 standard for enhanced quality.

Its compact DO-213AA molded epoxy over glass body package, measuring 3.68 mm by 1.68 mm by 1.68 mm, facilitates easy PCB mounting. Matte tin plated leads conform to solderability standards J-STD-002 and JESD 22-B102.

Typical industrial uses include high voltage rectification in CRT and TV grids, and snubber circuits for camera flashes where efficient fast switching is required. Features a superectifier structure ensuring high reliability.

Glass-passivated junction with fast switching capability. Low leakage current with typical IR less than 0.2 μA. High forward surge current capability up to 10 A. RoHS compliant with AEC-Q101 automotive standard approval.

Designed for high efficiency with 50 ns peak reverse recovery time. Operates reliably between -65°C and 175°C maximum temperatures. Compact dimensions of 3.68 mm length, 1.68 mm width and height. Matte tin plated leads solderable per industry standards.

Color band indicates cathode polarity for easy identification. Explore more semiconductor components and specialist diodes at EnvMart for industrial, lab, and manufacturing applications.
