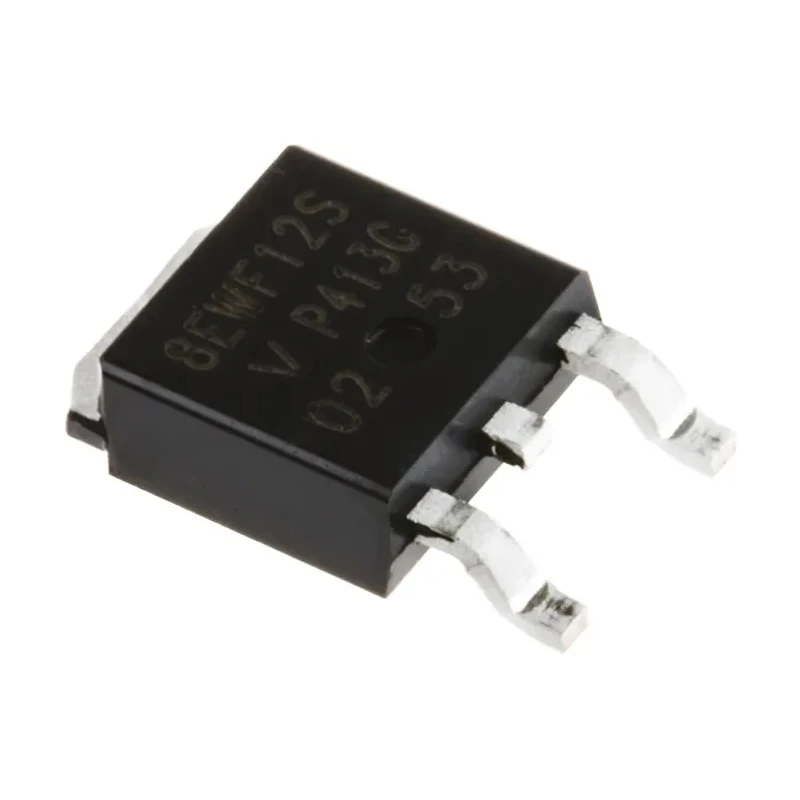

Vishay 1200 V 8 A Switching Diode 3-Pin DPAK Surface Mount TO-252 Package VS-8EWF12STR-M3
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-8EWF12STR-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VS-8 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 270ns |
Key Features
- This diode features fast recovery and low forward voltage drop for efficiency.
- Designed for high current and voltage applications with a peak non-repetitive forward surge current of 200 A.
- Compact dimensions with length 6.73 mm, width 6.22 mm, and height 2.39 mm.
- Operating temperature range from -40 °C to 150 °C supports rugged industrial environments.
- Low peak reverse current of 100 μA and fast reverse recovery time of 270 ns.
- RoHS compliant and meets environmental standards.
- Single diode configuration suitable for switching applications.
- Manufactured in China to the industry standard VS-8 series.
Product Description
Vishay VS-8EWF12STR-M3 is a high performance switching diode rated at 1200 V peak reverse repetitive voltage and capable of 8 A maximum continuous forward current. Packaged in a 3-pin DPAK surface mount TO-252 package, this diode delivers reliable fast recovery switching performance for a broad range of electronic and industrial applications.
Featuring a low forward voltage drop of 1.3 V, the diode minimizes power loss and heat generation during operation. Its peak non-repetitive forward surge current rating of 200 A ensures robustness against transient currents. The device exhibits fast reverse recovery time of 270 ns and low peak reverse current of 100 μA, enhancing efficiency in switching circuits.
The diode’s compact physical dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height make it suitable for space-constrained PCB layouts demanding high current handling. It operates safely within a wide temperature range from -40 °C up to 150 °C, making it appropriate for harsh industrial environments.
This device complies with RoHS environmental standards, demonstrating Vishay’s commitment to eco-friendly manufacturing. The single diode configuration is ideal for circuit rectification, freewheeling, and load protection in power electronics, industrial controls, automotive electronics, and other demanding electrical systems.
Manufactured in China under the recognized VS-8 series, this diode guarantees quality and traceability. It is extensively used in power supplies, battery chargers, and inverter circuits where switching diode performance is crucial.
This diode features fast recovery and low forward voltage drop for efficiency. Designed for high current and voltage applications with a peak non-repetitive forward surge current of 200 A. Compact dimensions with length 6.73 mm, width 6.22 mm, and height 2.39 mm.
Operating temperature range from -40 °C to 150 °C supports rugged industrial environments. Low peak reverse current of 100 μA and fast reverse recovery time of 270 ns. RoHS compliant and meets environmental standards. Single diode configuration suitable for switching applications.
Manufactured in China to the industry standard VS-8 series. Explore our Electronics & Electricals Semiconductor category for Vishay brand components and reliable switching diode products at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage of this diode is 1200 V.
This model has a maximum continuous forward current rating of 8 A.
It is packaged in a 3-pin DPAK surface mount TO-252 package.
The diode has dimensions of 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
It operates within a temperature range of -40 °C to 150 °C.
The peak non-repetitive forward surge current rating is 200 A.
The maximum forward voltage drop is 1.3 V.
The peak reverse current is rated at 100 μA.
This model uses a single diode configuration.
The reverse recovery time is 270 ns.
Yes, this diode is RoHS compliant and meets environmental standards.
This diode is manufactured in China.
