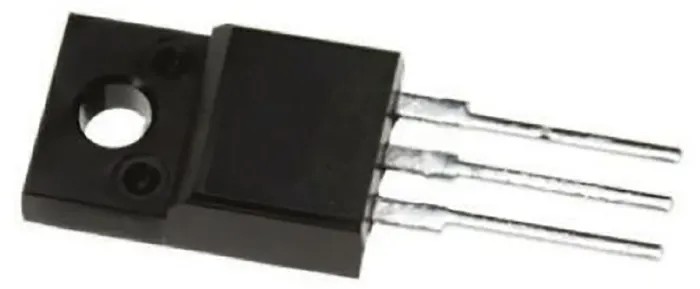

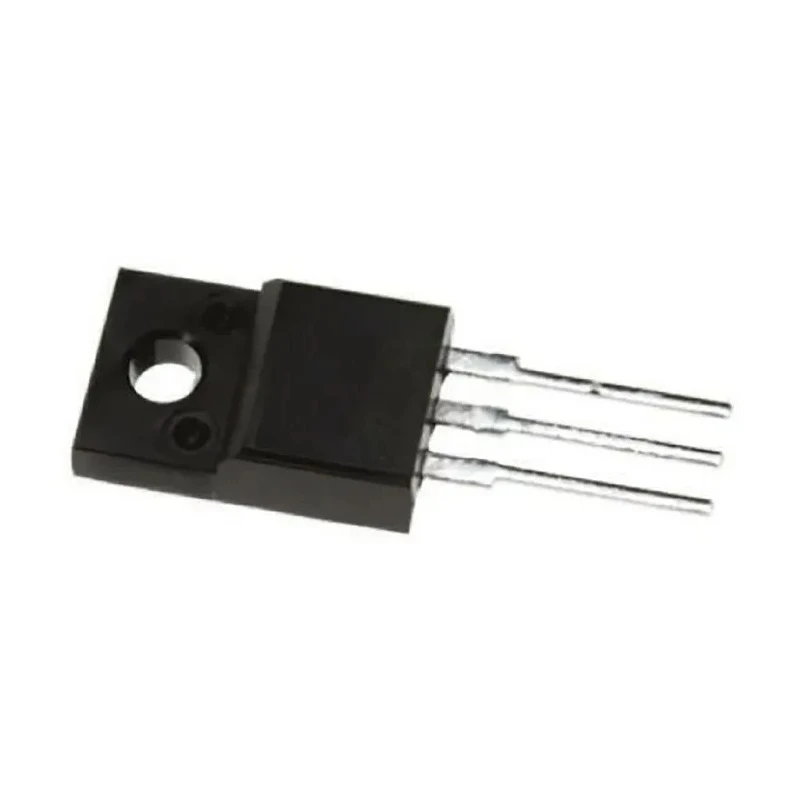

Vishay P-Channel Power MOSFET, 4.1 A, 250 V Enhancement, 3-Pin TO-220FP IRFI9634GPBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 10.3mm |
| Model | IRFI9634GPBF |
| Width | 4.8mm |
| Mount Type | Through Hole |
| Series | IRFI |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220FP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 4.1A |
| Maximum Drain Source Voltage Vds | 250V |
| Maximum Drain Source Resistance Rds | 1Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 35W |
| Typical Gate Charge Qg @ Vgs | 38nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | -250V |
Key Features
- Designed for enhancement mode operation ensuring efficient switching.
- Maximum power dissipation of 35 watts supports high load applications.
- Wide operating temperature range from -55°C to 150°C for demanding environments.
- Low maximum drain-source resistance of 1 ohm reduces power losses.
- Typical gate charge of 38 nC allows fast switching capabilities.
- Through-hole mount type suitable for robust mechanical installation.
- Compact dimensions with 9.8 mm height, 10.3 mm length, and 4.8 mm width.
- Maximum gate-source voltage ranges from -20 V to +20 V for flexible drive requirements.
Product Description
The Vishay IRFI9634GPBF is a P-Channel power MOSFET designed for reliable electronic switching and amplification in power management systems. It features a continuous drain current rating of 4.1 amperes and a drain-source voltage rating of 250 volts, making it suitable for various industrial and commercial applications.
This device operates in enhancement mode, ensuring efficient switching with low on-resistance of 1 ohm to minimize conduction losses and heat generation. It supports a maximum power dissipation of 35 watts, allowing it to handle significant power within compact designs. The MOSFET is housed in a 3-pin TO-220FP package with through-hole mounting, offering strong mechanical stability on printed circuit boards.
Operating across a temperature range of -55°C to 150°C, the IRFI9634GPBF suits harsh environments found in power supplies, motor drives, and power conversion equipment. The gate charge of 38 nC provides swift switching response, enhancing overall system performance. Additionally, the device has a gate-source voltage rating from -20 V to +20 V, offering application flexibility.
Continuous drain current of 4.1 A supporting moderate power loads. Drain-source voltage of 250 V for standard voltage applications. Low resistance on-state of 1 Ω to reduce power dissipation. High power dissipation rating of 35 W for thermal reliability.
Wide operating temperature from -55°C to 150°C for robust operation. Compact TO-220FP package with 3 pins and through-hole mounting. Typical gate charge leads to efficient switching performance. No specific automotive standards compliance; RoHS compliant.
Manufactured in China ensuring quality and reliability.
This P-Channel Power MOSFET is ideal for Industrial electronic equipment, power management circuits, and semiconductor discrete components where reliability and performance are paramount.
Explore more Vishay power semiconductors and other electronic components on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 4.1 A.
It has a maximum drain-source voltage rating of 250 V.
The maximum power dissipation for this unit is 35 W.
This model operates within a temperature range of -55°C to 150°C.
It uses a through-hole mounting type, suitable for robust mechanical installation.
The dimensions are 9.8 mm in height, 10.3 mm in length, and 4.8 mm in width.
The maximum gate-source voltage ranges from -20 V to +20 V.
The typical gate charge is 38 nC, allowing for fast switching capabilities.
It features a low maximum drain-source resistance of 1 Ω.
This P-Channel power MOSFET is suitable for power management circuits and industrial electronic equipment.
It comes in a 3-pin TO-220FP package type.
It is manufactured in China.
