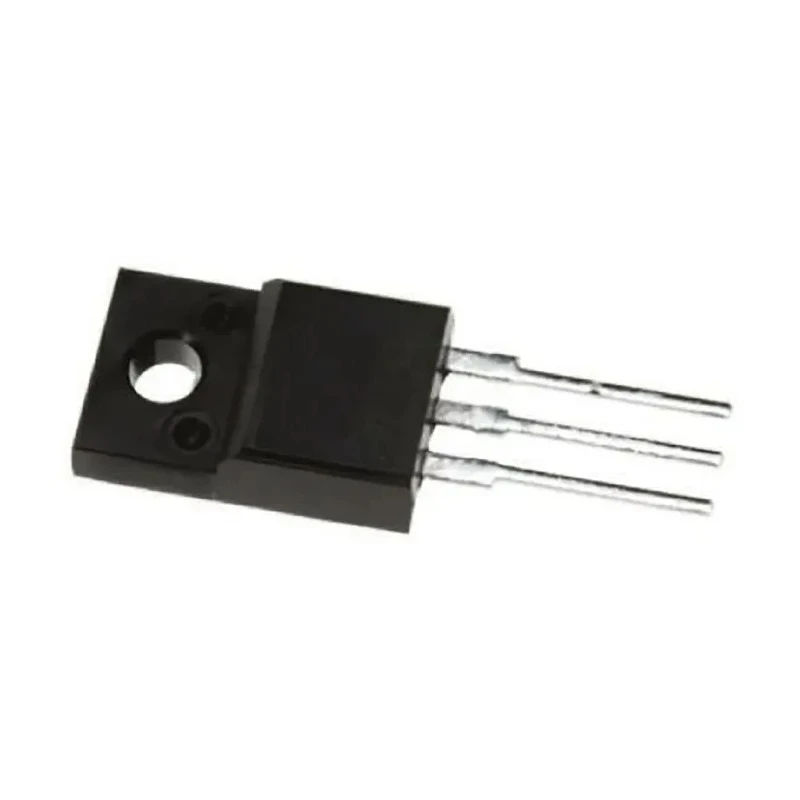

Vishay P-Channel Power MOSFET 3-Pin TO-220FP, 4.1 A Drain Current, 250 V Drain Source Voltage IRFI9634GPBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 10.3mm |
| Model | IRFI9634GPBF |
| Width | 4.8mm |
| Mount Type | Through Hole |
| Series | IRFI |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220FP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 4.1A |
| Maximum Drain Source Voltage Vds | 250V |
| Maximum Drain Source Resistance Rds | 1Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 35W |
| Typical Gate Charge Qg @ Vgs | 38nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | -250V |
Key Features
- Designed for enhancement mode operation with a channel resistance of 1 ohm.
- Maximum power dissipation of 35 watts ensures efficient thermal handling.
- Operates reliably in temperatures ranging from -55°C to 150°C.
- Typical gate charge of 38 nC at gate-source voltage, facilitating fast switching.
- Wide gate-source voltage range from -20 V to +20 V for versatile control.
- Constructed with 3 pins, suitable for through-hole mounting applications.
- Forward voltage rating of -250 V suits reverse voltage protection.
- Manufactured in China following standard semiconductor quality.
Product Description
Vishay IRFI9634GPBF is a high-performance P-Channel Power MOSFET designed for electronic and power applications requiring high efficiency and reliability. Featuring a 3-pin TO-220FP package, this MOSFET offers a maximum continuous drain current of 4.1 amperes and a drain-source voltage rating of 250 volts. It is optimized for enhancement-mode switching with a low on-state resistance (1Ω), making it well-suited for power management in circuits requiring robust control.
The MOSFET supports a maximum power dissipation of 35 watts and operates over a broad temperature range from -55°C up to 150°C, making it suitable for demanding industrial and commercial environments including power supplies, motor controls, and electronic switching devices.
With typical gate charge of 38 nC at the gate-source voltage, it facilitates efficient gate drive and fast switching speeds. The permissible gate-source voltage ranges from -20 V to +20 V, providing flexibility in control signal design. The compact 10.3 mm length, 9.8 mm height, and 4.8 mm width dimensions enable installation in constrained PCB layouts.
This device is designed for through-hole mounting, allowing easy integration in prototype and production assemblies. The forward voltage rating of -250 V ensures protection against voltage spikes in reverse polarity situations.
Produced by Vishay and made in China, this IRFI9634GPBF MOSFET complies with industry standards and is appropriate for various applications including industrial automation, electronics manufacturing, and power conditioning.
Designed for enhancement mode operation with a channel resistance of 1 ohm. Maximum power dissipation of 35 watts ensures efficient thermal handling. Operates reliably in temperatures ranging from -55°C to 150°C. Compact dimensions: 10.3 mm length, 9.8 mm height, and 4.8 mm width.
Typical gate charge of 38 nC at gate-source voltage, facilitating fast switching. Wide gate-source voltage range from -20 V to +20 V for versatile control. Constructed with 3 pins, suitable for through-hole mounting applications.
Forward voltage rating of -250 V suits reverse voltage protection. Manufactured in China following standard semiconductor quality. Explore more Vishay semiconductor components and Power MOSFETs in the EnvMart Industrial Electronics section for your power management and switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 4.1 amperes.
This MOSFET has a drain-source voltage rating of 250 volts.
It comes in a TO-220FP package type, which is suitable for through-hole mounting applications.
The operating temperature range for this model is from -55°C to 150°C.
The typical gate charge at gate-source voltage for this MOSFET is 38 nC.
The maximum power dissipation for this model is 35 watts.
This model has a channel resistance of 1 ohm.
The maximum gate-source voltage for this MOSFET ranges from -20 V to +20 V.
The dimensions of this MOSFET are 10.3 mm in length, 9.8 mm in height, and 4.8 mm in width.
This device features a P-channel type channel.
This MOSFET is manufactured in China.
This model is suitable for applications such as power supplies, motor controls, and electronic switching devices.
