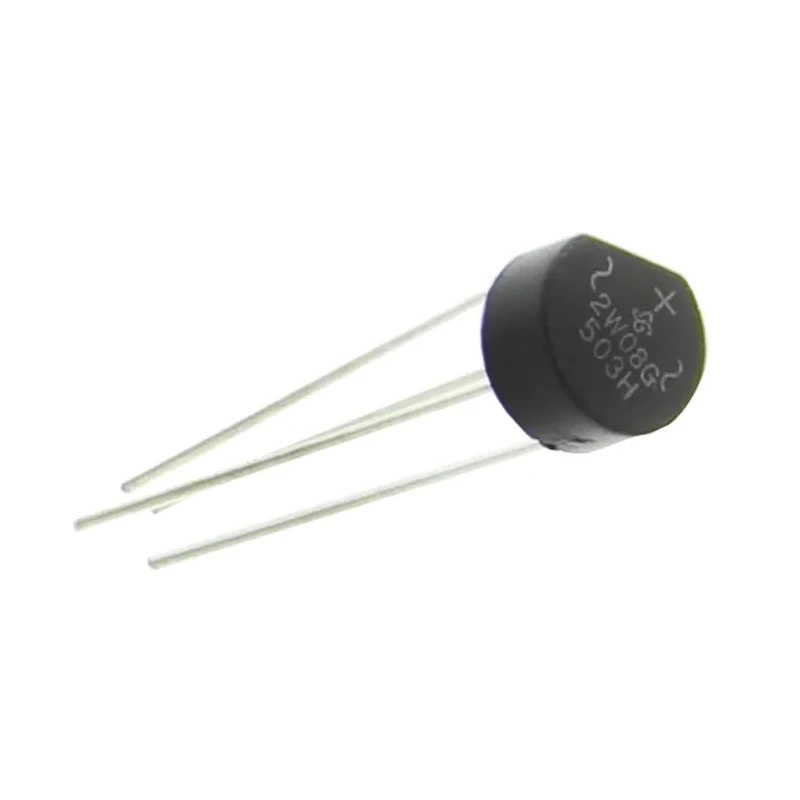

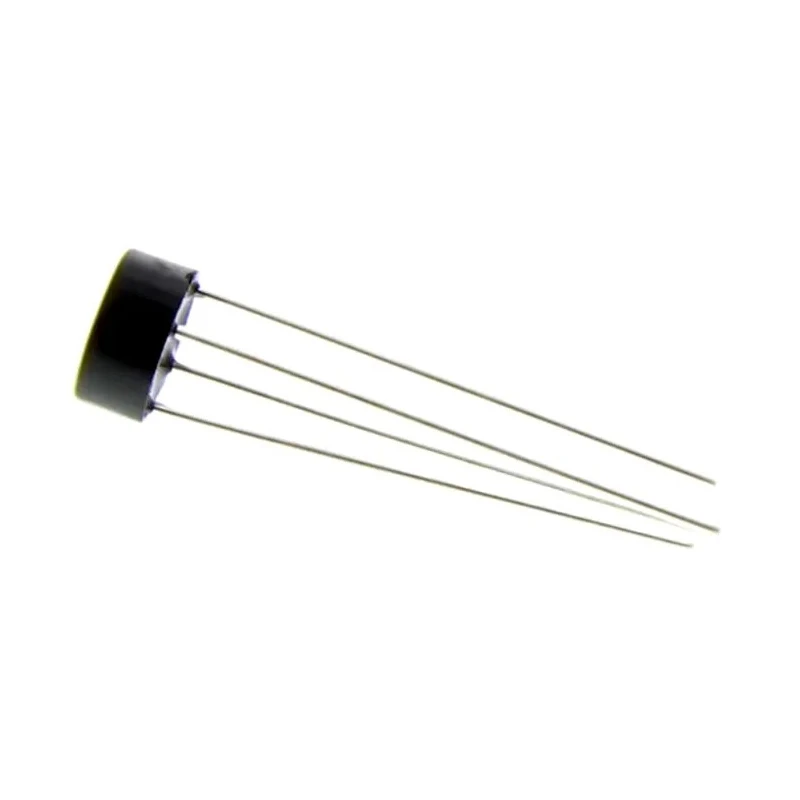

Vishay Bridge Rectifier 800 V 60 A, 4-Pin Single Through Hole Mounting 2W08G-E4/51
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | 2W08G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | 2W0 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | WOG |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- High peak reverse repetitive voltage of 800 V ensuring durability.
- Maximum forward current rating of 2 A for steady operation.
- Peak non-repetitive forward surge current of 60 A for transient load handling.
- Compact dimensions with length 9.86 mm, width 8.84 mm, and height 5.6 mm.
- Wide operating temperature range from -55°C to 150°C.
- Four-pin WOG package type suitable for printed circuit board mounting.
- Single-phase bridge rectifier configuration for converting AC to DC.
- Low peak forward voltage of 1.1 V and peak reverse current of 5 μA for efficiency.
Product Description
Vishay 2W08G-E4/51 Bridge Rectifier is an efficient semiconductor device designed for full-wave rectification applications providing 800 V peak reverse repetitive voltage and 60 A forward surge current. It features a through hole mount type with a compact WOG 4-pin package, suitable for reliable incorporation into various electronic circuits requiring conversion of alternating current into direct current. Operating within a broad temperature range from -55°C up to 150°C, this bridge rectifier sustains performance under demanding industrial and electronic environmental conditions.
The device exhibits a single-phase configuration with a low peak forward voltage of 1.1 V and minimal leakage current of 5 μA, enhancing its efficiency in power conversion. Its wire lead structure assists in secure installation on printed circuit boards, supporting durable connections and thermal dissipation.
This rectifier is part of the Vishay 2W0 series, known for its high dielectric strength case and low DC reverse current, ensuring longevity and safe operation in power electronics, power supplies, and industrial automation. It finds application in industrial machines, electronic power supplies, HVAC control systems, and other manufacturing equipment requiring robust electrical rectification.
High peak reverse repetitive voltage of 800 V ensuring durability. Maximum forward current rating of 2 A for steady operation. Peak non-repetitive forward surge current of 60 A for transient load handling. Compact dimensions with length 9.86 mm, width 8.84 mm, and height 5.6 mm.
Wide operating temperature range from -55°C to 150°C. Four-pin WOG package type suitable for printed circuit board mounting. Single-phase bridge rectifier configuration for converting AC to DC. Low peak forward voltage of 1.1 V and peak reverse current of 5 μA for efficiency.
Set in a high reliability design by Vishay, this bridge rectifier supports high thermal performance and easy handling in production environments. Suitable for applications in power electronics, laboratory equipment, and automotive electronics (though not automotive standard certified).
Explore more specialized semiconductors and Bridge Rectifiers available at EnvMart to suit your precise technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier has a peak reverse repetitive voltage of 800 V.
The maximum forward current rating for this model is 2 A.
It can handle a peak non-repetitive forward surge current of 60 A.
The dimensions are 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
It operates within a temperature range of -55°C to 150°C.
It comes in a four-pin WOG package type suitable for through hole mounting.
This model features a single-phase bridge rectifier configuration for converting AC to DC.
The peak forward voltage is 1.1 V.
The peak reverse current is 5 μA.
It is suitable for applications in power electronics, power supplies, HVAC control systems, and industrial machines.
The country of origin for this bridge rectifier is China.
This model has a pin count of 4.
