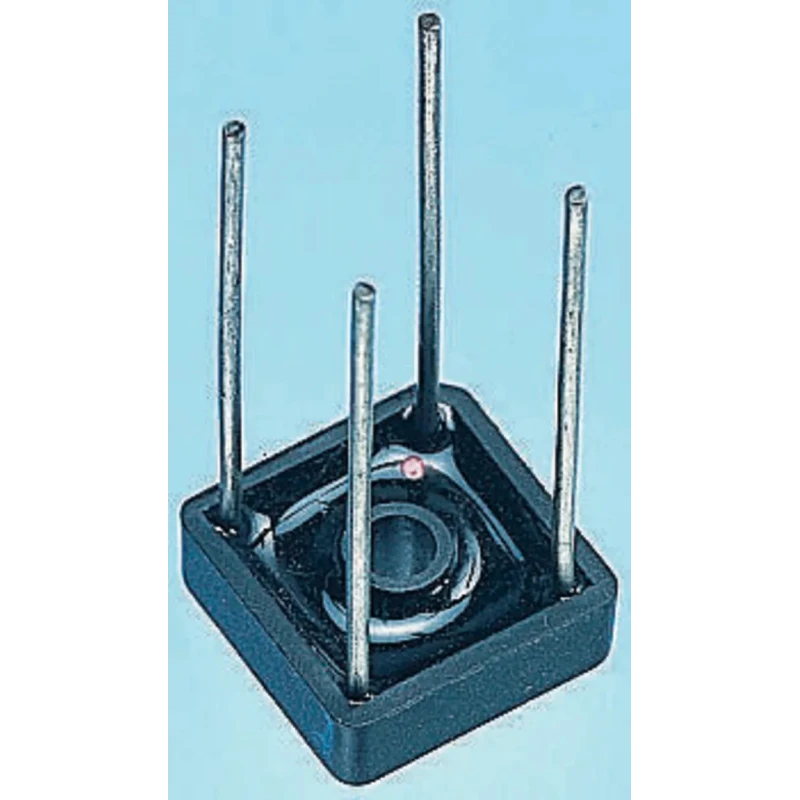

Vishay Bridge Rectifier, 200 V Peak Reverse Voltage, 137 A Forward Surge Current, 4-Pin Single D-72 Package VS-KBPC602PBF

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier, 200 V Peak Reverse Voltage, 137 A Forward Surge Current, 4-Pin Single D-72 Package VS-KBPC602PBF

Name: Vishay Bridge Rectifier, 200 V Peak Reverse Voltage, 137 A Forward Surge Current, 4-Pin Single D-72 Package VS-KBPC602PBF
Brand: Vishay
SKU: 217502
Price: 3.81 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	5.33mm
Length	15.75mm
Model	VS-KBPC602PBF
Width	15.75mm
Mount Type	Through Hole
Series	VS-KBPC6
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-72
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	137A
Forward Current If	6A
Peak Forward Voltage Vf	1.2V

Key Features

The bridge rectifier provides full-wave rectification converting AC input to DC output effectively.
Constructed with a compact D-72 package type suitable for through-hole mounting.
Operates reliably within a temperature range of -40°C to 150°C.
Has a forward current rating of 6 A, ensuring robust current handling.
Features a peak forward voltage of 1.2 V and a low peak reverse current of 10 μA.
Widely used in industrial electronic circuits for efficient power conversion.
Designed with wire lead structure offering ease of installation on printed circuit boards.
Meets demanding thermal and reliability standards in discrete semiconductor components.

Product Description

Vishay VS-KBPC602PBF Bridge Rectifier is a reliable discrete semiconductor designed for industrial and commercial electronic applications. Operating at a peak reverse voltage of 200 V and capable of handling a peak forward surge current of 137 A, this 4-pin single configuration device provides efficient full-wave rectification converting alternating current (AC) to direct current (DC) output.

Encased in a compact D-72 package, the bridge rectifier supports through-hole mounting and is suitable for PCB or chassis installations. It operates within a broad temperature range from -40°C to 150°C ensuring consistent performance in various environments.

With a forward current rating of 6 A and a low peak forward voltage of 1.2 V, it achieves minimal power loss and high efficiency. The device also features a peak reverse current of only 10 μA, ensuring minimal leakage and enhanced stability.

The wire lead construction facilitates easy installation and connectivity in power conversion circuits. This model belongs to the VS-KBPC6 series, engineered to deliver maximum thermal performance and reliability for industrial power electronics and semiconductor applications.

This bridge rectifier is widely utilized in electronic power supplies, HVAC systems, manufacturing equipment, and motor controls, among other industrial uses, representing a versatile and essential discrete semiconductor component.

The bridge rectifier converts AC input to DC output for full-wave rectification. Compact D-72 package designed for through-hole mounting on PCBs. Wide operating temperature range from -40°C to 150°C. Forward current of 6 A ensures robust current handling capability.

Low peak forward voltage of 1.2 V minimizes power losses. Peak reverse current of 10 μA for stable and efficient operation. Wire lead structure enables ease of installation and connectivity. Maximum thermal reliability suitable for industrial applications.

Essential component for power supply and electronic equipment manufacturing. Explore more Vishay semiconductor solutions and Bridge Rectifiers on EnvMart to find components suited to your electronic design requirements.
