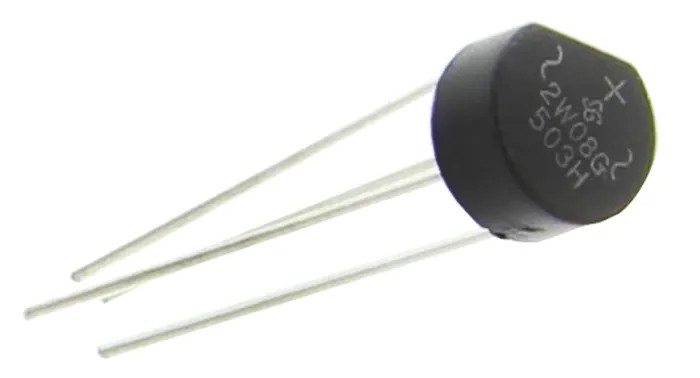

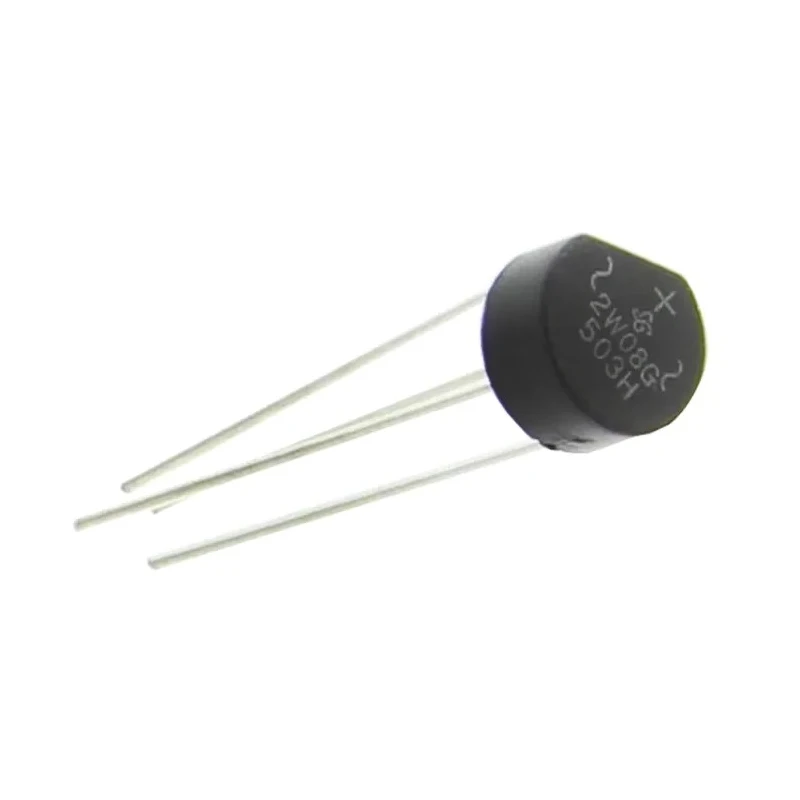

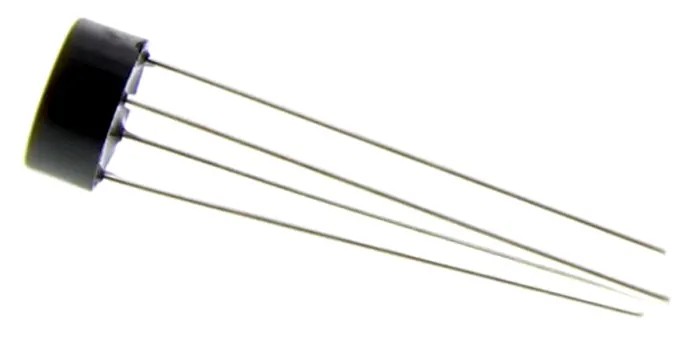

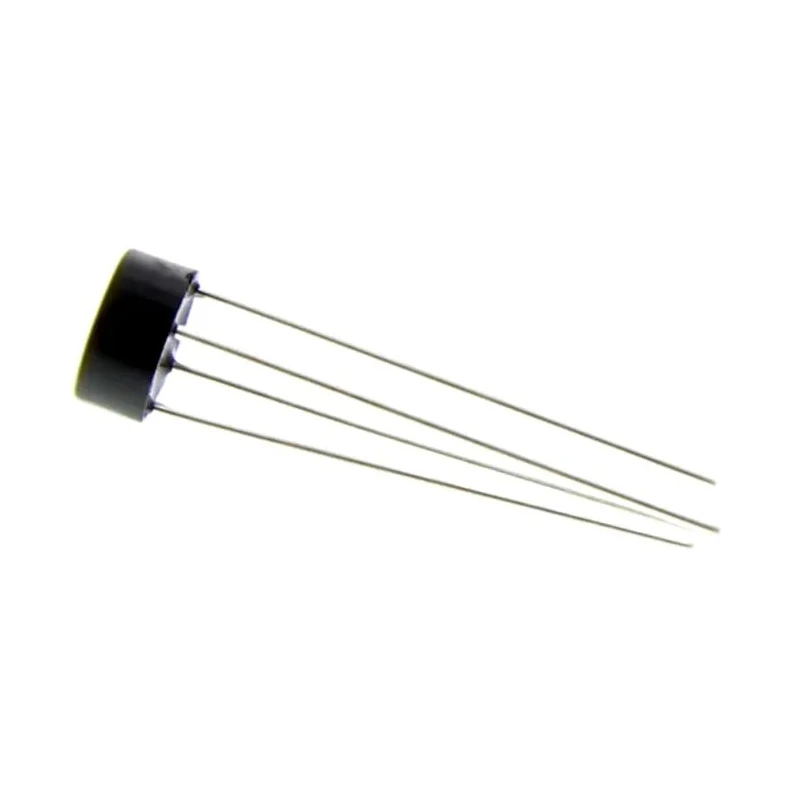

Vishay Bridge Rectifier 800 V 60 A 4-Pin Single Through Hole Mount 2W08G-E4/51

Vishay 2W08G-E4/51 Bridge Rectifier 800 V 60 A 4-Pin Single is designed to convert Alternating Current (AC) input into Direct Current (DC) output efficiently by full-wave rectification. This bridge rectifier incorporates a single-phase diode arrangement providing consistent polarity of output regardless of input polarity variations. Featuring a robust through-hole mount design with a wire lead structure optimized for Printed Circuit Board (PCB) integration, it ensures minimal size with maximum thermal performance and reliability.

The device supports a peak reverse repetitive voltage rating of 800 V and a forward current of 2 A, with a peak non-repetitive forward surge current capacity of 60 A. Its operating temperature range from -55°C to 150°C makes it suitable for harsh environmental conditions common in industrial and laboratory settings.

Physical dimensions include a length of 9.86 mm, width of 8.84 mm, height of 5.6 mm, and the unit has a 4-pin WOG package type. The low forward voltage of 1.1 V and minimal peak reverse current of 5 μA contribute to its efficiency and reliability in power electronics applications.

This rectifier is constructed with a high dielectric strength case, supporting enhanced safety during operation. It is a key component in electronic power supply circuits, enabling smooth and reliable power conversion necessary in equipment for manufacturing, industrial automation, HVAC systems, and electronic instrumentation.

Manufactured under the Vishay 2W0 series, this bridge rectifier does not carry automotive certification, focusing instead on general-purpose electronic and industrial applications.

Package contents comprise a single unit of the Vishay 2W08G-E4/51 Bridge Rectifier. Originating from China, the product is engineered to meet stringent quality standards to ensure consistent performance and longevity.

Supports peak reverse repetitive voltage of 800 V. Maximum forward current of 2 A with 60 A surge capability. Through-hole mount with 4-pin wire lead package. Operating temperature from -55°C to 150°C for versatile applications.

Compact size suitable for PCB assembly. Low forward voltage drop improves efficiency. Single-phase diode configuration for full-wave rectification. High dielectric strength casing ensures operational safety. Durable construction designed for industrial and laboratory use.

Package contains one Bridge Rectifier unit. Explore the extensive range of semiconductor components at EnvMart for reliable and efficient power electronics solutions.
