| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.75mm |
| Length | 3mm |
| Model | DFLR1200-7 |
| Width | 1.93mm |
| Mount Type | Surface |
| Series | DFLR1200 |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI123 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1.1V |

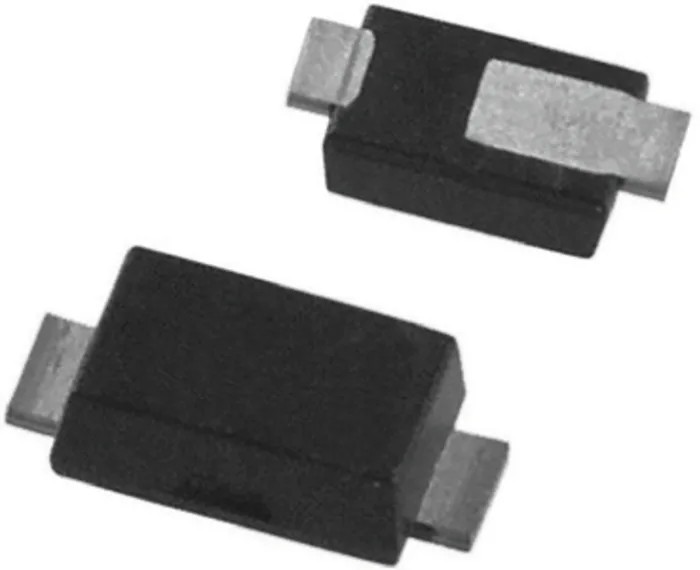

DiodesZetex DFLR1200-7 is a general purpose Schottky diode designed for semiconductor applications requiring efficient, low forward voltage drop rectification. It supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 200 V, making it suitable for various power electronics, electronic circuits, and signal rectification tasks.
The device is housed in a surface mount PowerDI123 package providing compact dimensions (3 mm length, 1.93 mm width, 0.75 mm height) which facilitates high-density PCB layouts.
Operating temperature range from -65°C to 150°C offers reliability across harsh industrial and commercial environments. The diode can withstand peak non-repetitive forward surge currents up to 25 A, supporting transient load conditions.
This diode configuration is single channel with 2 pins, allowing easy integration in discrete semiconductor circuits. Peak reverse current is specified at 100 μA enhancing overall efficiency.
This diode features a PowerDI123 package for surface mounting. Rated for a peak non-repetitive forward surge current of 25 A. Operating temperature range from -65°C to 150°C. Maximum forward voltage drop of 1.1 V at rated current.
Single diode configuration with 2 pins. Peak reverse current of 100 μA. Compact size supports dense PCB layouts. Complies with FBI standards, not suitable for automotive applications. This component is ideal for industrial electronics, power supplies, and semiconductor manufacturing requiring robust, general-purpose Schottky diodes.
