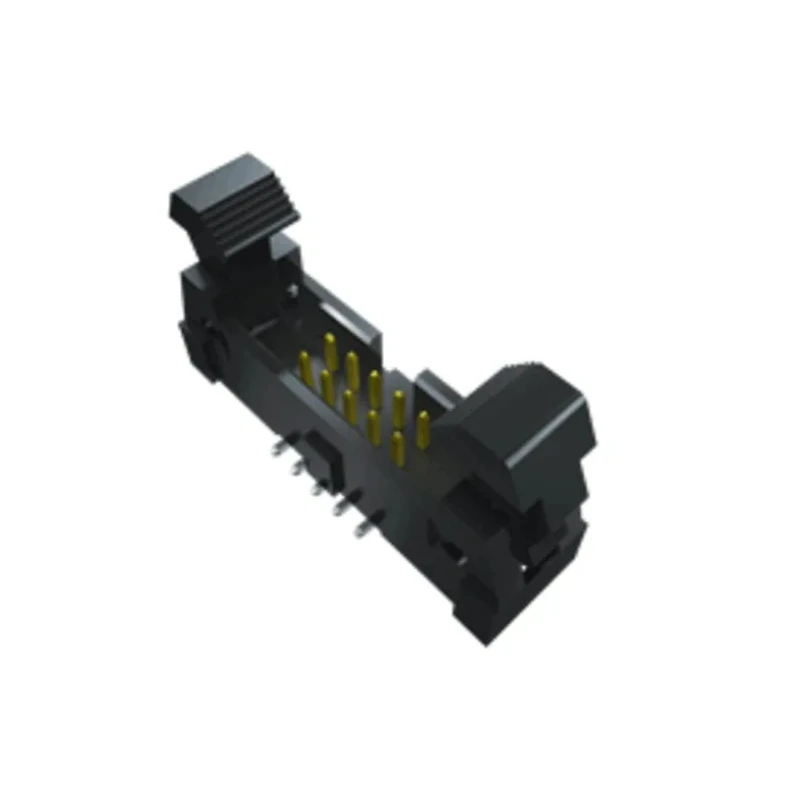

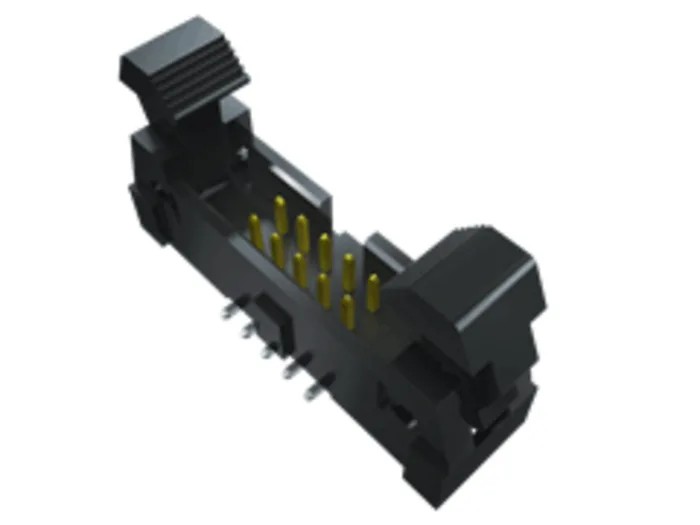

Samtec EHT Series Straight Through Hole Shrouded PCB Header, 26 Contacts, 2 mm Pitch, 2 Row EHT-113-01-S-D

Samtec EHT-113-01-S-D is a high-quality shrouded PCB header designed for electrical and electronic assemblies requiring durable and reliable wire-to-board connections. This through-hole header features 26 gold-plated male contacts arranged in two rows with a 2 mm pitch to ensure precise and secure mating with counterparts. The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and temperature stability.

Ideal for industrial, telecommunications, computing, and electronic manufacturing applications, the header supports a wide operating temperature range from -55°C up to 125°C, making it suitable for harsh environments. The inclusion of an IDC ejector mechanism and a polarization notch enhances ease of installation and prevents incorrect mating, thus improving system reliability.

The phosphor bronze contacts with gold plating ensure superior electrical conductivity and resistance to corrosion. The solder termination type facilitates secure PCB attachment during wave or hand soldering processes. Samtec's EHT series offers flexibility with common pin counts and mounting options, accommodating various design requirements.

This component is manufactured in the United States under strict quality controls, ensuring compliance with industrial standards though it carries no specific approvals documented. The connector's rugged construction and precise engineering make it a preferred choice for demanding electronic systems.

This PCB header has 26 male contacts arranged in two rows. It features a 2.00 mm pitch for reliable connection. The housing is made of liquid crystal polymer, ensuring durability. Phosphor bronze contacts are gold plated for enhanced conductivity and corrosion resistance.

This component is designed for through-hole mounting with a straight orientation. The header includes an IDC ejector and a polarization notch for accurate cable locking. It operates effectively in a temperature range from -55°C to 125°C.

This is a wire-to-board connector with solder termination type. The product is manufactured in the United States and is rated new.

EnvMart catalog offers this Samtec EHT Series PCB Header to electronics manufacturers and designers requiring dependable PCB interconnect solutions. Browse similar connectors to find compatible parts for your project specifications.
