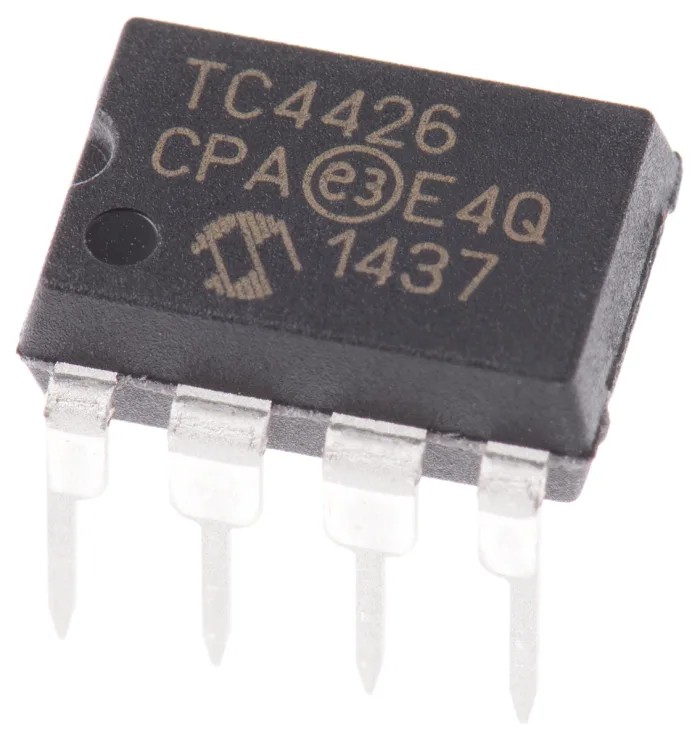

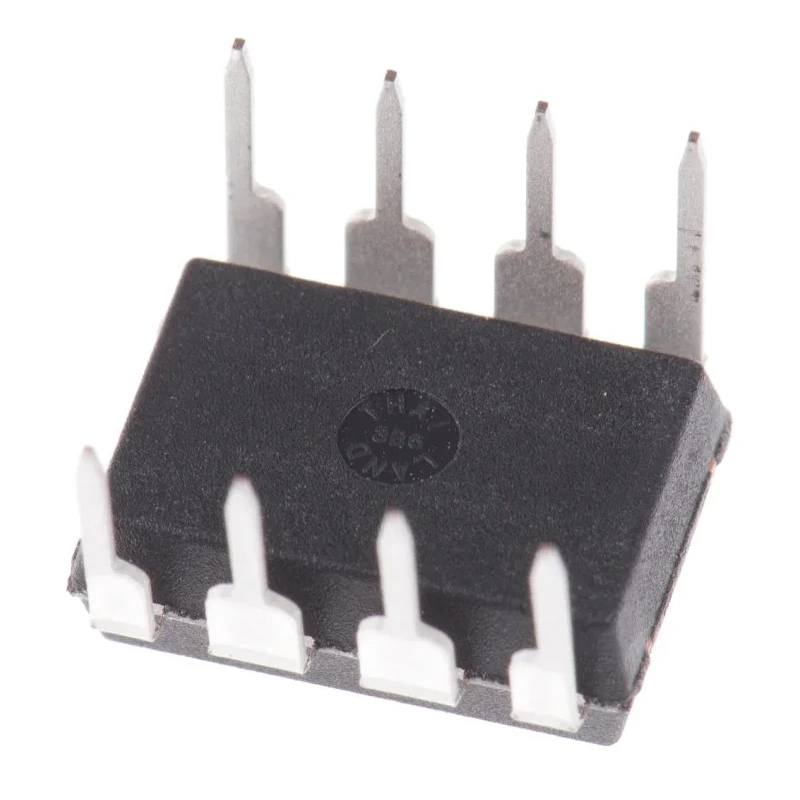

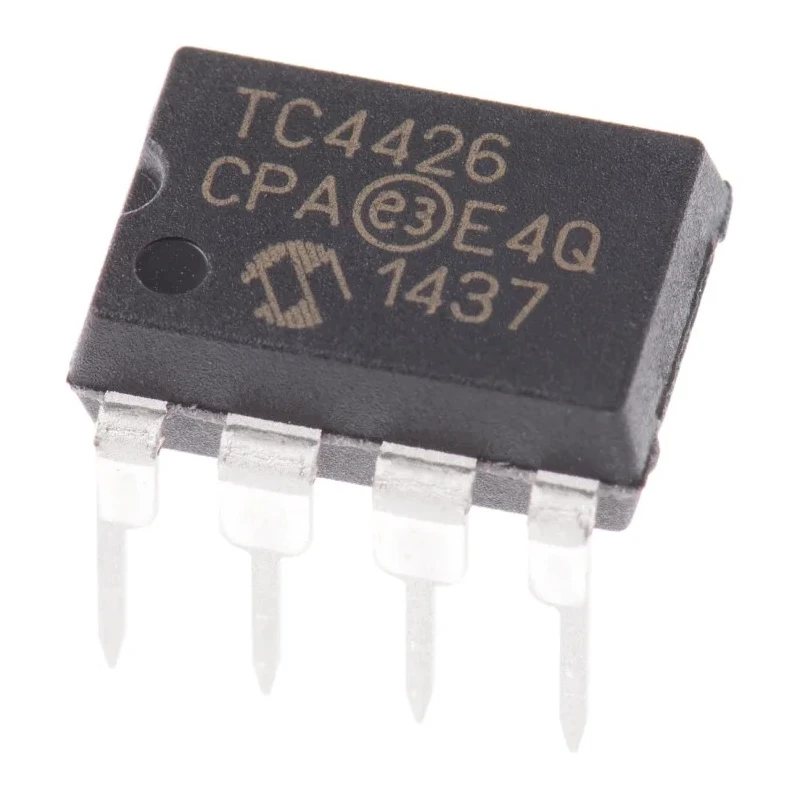

Microchip MOSFET Gate Driver 2 Outputs 1.5 A, 22V, 8-Pin PDIP TC4426CPA

Free Delivery in India | Lowest Global Shipping Charges

Microchip MOSFET Gate Driver 2 Outputs 1.5 A, 22V, 8-Pin PDIP TC4426CPA

Name: Microchip MOSFET Gate Driver 2 Outputs 1.5 A, 22V, 8-Pin PDIP TC4426CPA
Brand: Microchip
SKU: 166023
Price: 2.03 USD
Availability: InStock



Category MOSFET Gate Driver Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.06mm
Length	10.16mm
Model	TC4426CPA
Width	6.6mm
Mount Type	Through Hole
Series	TC4426
Output Current	1.5A
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Number of outputs	2
Rise Time	19ns
Pin Count	8
Maximum Supply Voltage	22V
Minimum Supply Voltage	18V
Number of Drivers	2
Fall Time	19ns
Driver Type	MOSFET

Key Features

Features a maximum supply voltage of 22 volts for stable operation.
Supports output current of 1.5 amperes suitable for driving MOSFET gates.
Includes 2 driver outputs in an 8-pin PDIP through-hole package.
Offers fast switching with 19 nanoseconds rise and fall times.
Operating temperature ranges from 0°C to 70°C for reliable performance.
Designed without automotive standards, tailored for general electronic applications.
Compact dimensions with length 10.16 mm, width 6.6 mm, and height 4.06 mm.
Ideal for industrial, electronic, power management, and automation applications.

Product Description

Microchip TC4426CPA is a 2-output MOSFET gate driver designed to provide 1.5 ampere output current with fast switching capability. Packaged in an 8-pin PDIP (plastic dual inline package) with through-hole mounting, this device operates over a supply voltage range of 18 to 22 volts. It features symmetrical rise and fall times of 19 nanoseconds ensuring efficient switching control.

This MOSFET driver is suitable for industrial manufacturing, power management circuits, electronic control systems, and various automation use cases where reliable gate drive capability is required. Its compact size of 10.16 mm in length, 6.6 mm width, and 4.06 mm height makes it easy to integrate on standard PCBs.

Operating between 0°C and 70°C temperature range, the TC4426CPA ensures stable performance under typical environmental conditions. While this device does not adhere to automotive standards, it is ideal for general MOSFET drive applications in semiconductor and electronic component manufacturing.

Maximum supply voltage of 22 volts. Output current capability: 1.5 amperes per output. Symmetrical rise and fall times of 19 nanoseconds. 8-pin PDIP through-hole package for easy mounting. Operating temperature range: 0 to 70 degrees Celsius.

Compact form factor with detailed dimensions. Set includes the single Microchip TC4426CPA MOSFET gate driver supplied in tube packaging for handling and insertion efficiency. Explore more power management ICs and MOSFET Gate Drivers through EnvMart for your industrial, laboratory, HVAC, or electronic system needs.
