onsemi MOSFET Gate Driver 2 Output 8-Pin SOIC Package 13.2V NCP3420DR2G

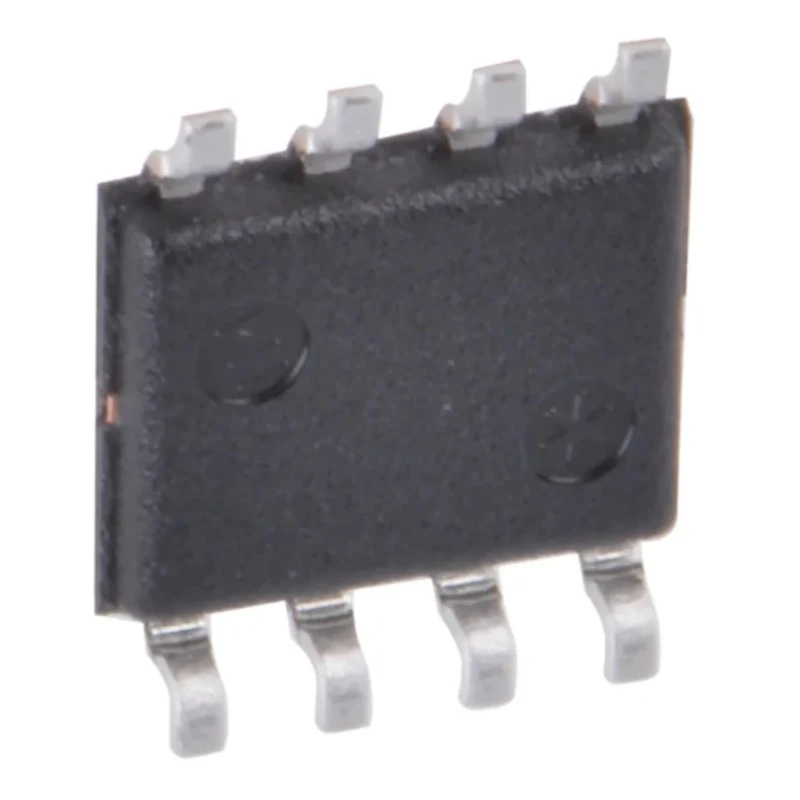

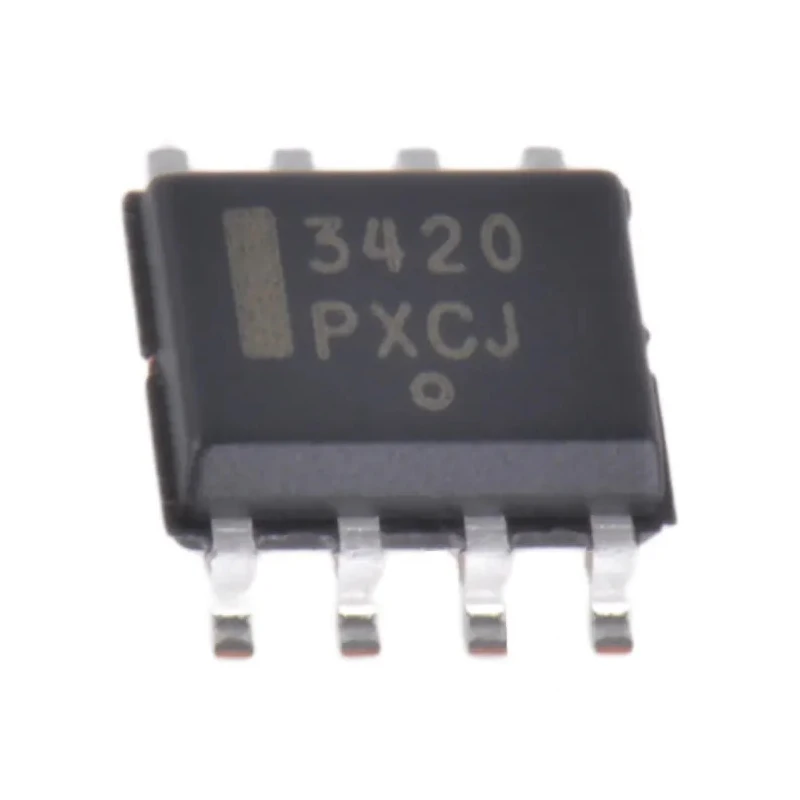

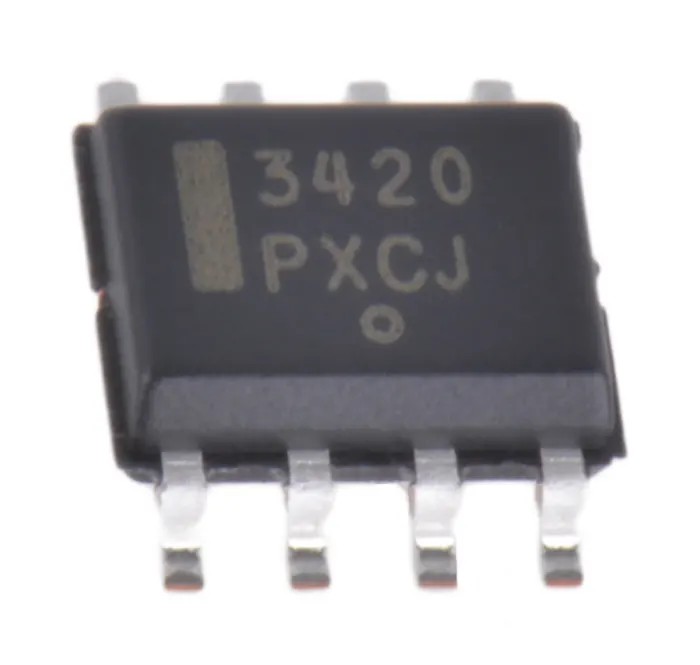

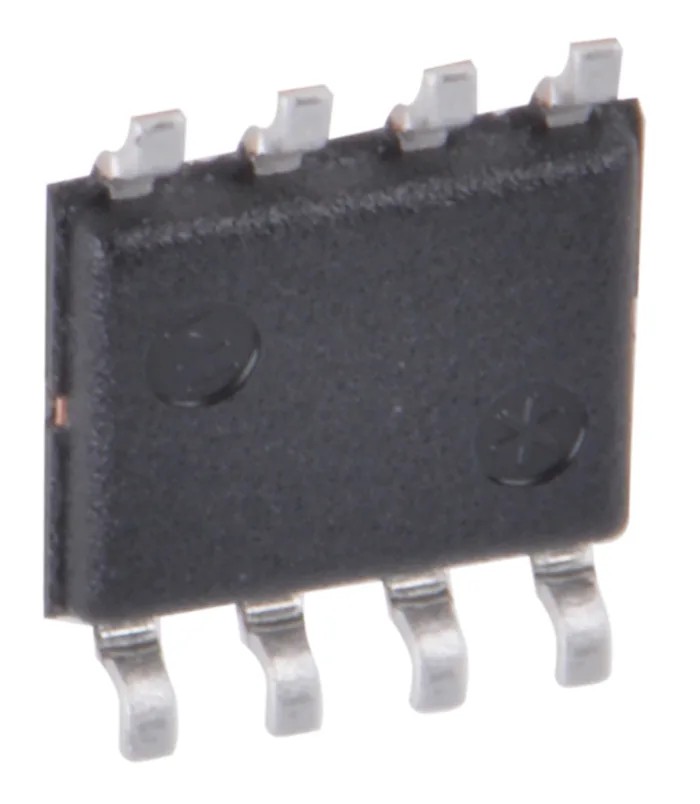

onsemi NCP3420DR2G is a compact and efficient MOSFET gate driver IC designed to facilitate driving power MOSFETs and IGBT transistors in various power management applications. It is produced in a small 8-pin SOIC package measuring 5mm in length, 4mm in width, and 1.5mm in height, making it suitable for space-constrained PCB designs.

This device provides two independent output drivers, enabling it to handle both low side and high side configurations, as well as half-bridge circuits. The driver is designed to operate with a minimum and maximum supply voltage of 13.2 volts, ensuring stable operation and efficient transistor switching.

Featuring fast switching capabilities with a fall time of 11 nanoseconds and a rise time of 16 nanoseconds, the NCP3420DR2G supports rapid response to control signals, which is essential in high-frequency switching power supplies and other electronic circuits requiring precise timing.

The device operates reliably within an ambient temperature range of 0°C to 85°C, making it suitable for a variety of industrial and commercial applications where moderate temperature stability is required.

Its surface mount package type facilitates automated assembly and integration in modern manufacturing processes. The absence of automotive standard certification indicates a focus on consumer, industrial, and laboratory electronic applications rather than automotive electronics.

Provides two MOSFET outputs suitable for low side, high side, and half-bridge circuits. Compact 8-pin SOIC surface mount package with dimensions 5mm length, 4mm width, and 1.5mm height. Fast switching with 11ns fall time and 16ns rise time characteristics.

Operates within 0°C to 85°C temperature range for reliable performance. Designed for use in power management and electronic control applications. Surface mount mount type for easy PCB integration in automated production.

Complies with no automotive standard and no additional approvals, ensuring focus on general electronics use.

This MOSFET Gate Driver is ideal for industrial automation, consumer electronics, power management IC design, and embedded system applications. It enhances reliable and efficient switching of power semiconductor devices, contributing to energy savings and performance enhancement.
