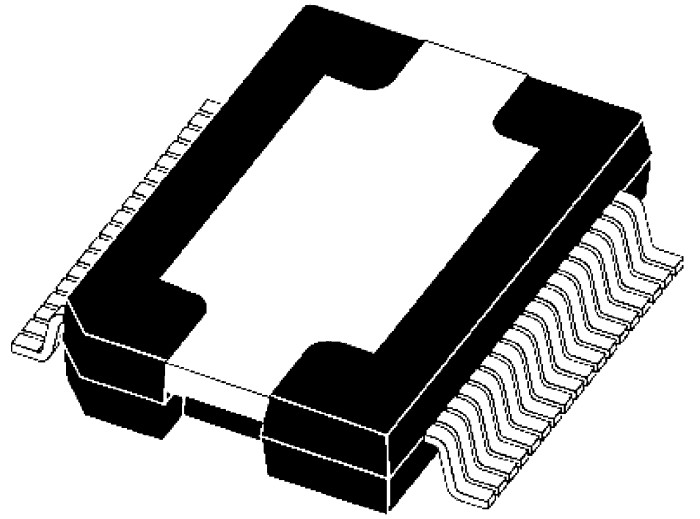

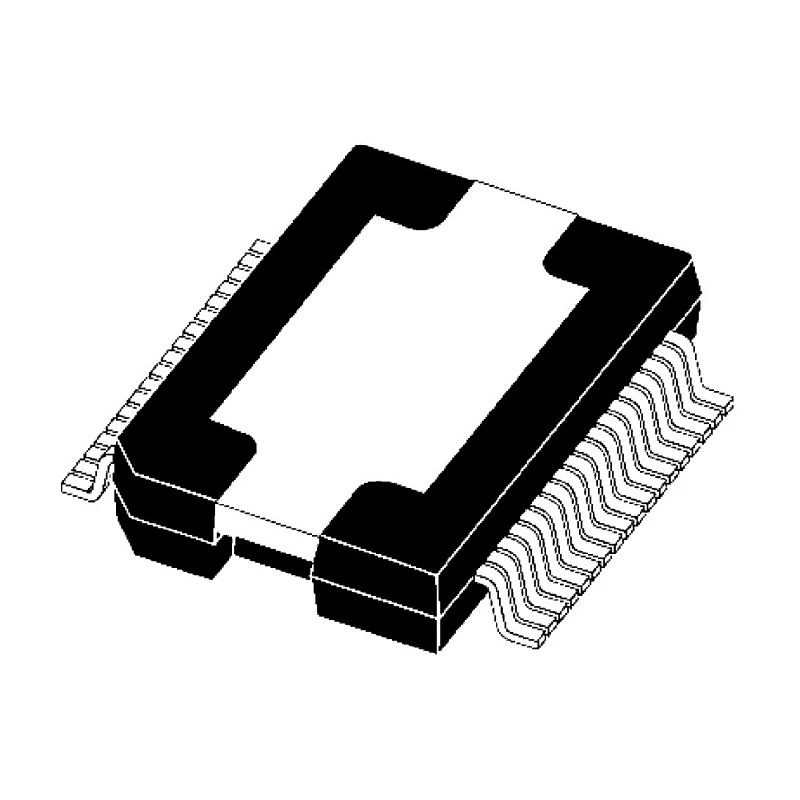

STMicroelectronics MOSFET Gate Driver 1 A 36-Pin PowerSO Package 45V Surface Mount VN808-32-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | VN808-32-E |
| Width | 11.1mm |
| Mount Type | Surface |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 8 |
| Rise Time | 50μs |
| Pin Count | 36 |
| Minimum Supply Voltage | 45V |
| Number of Drivers | 1 |
| Fall Time | 75μs |
| Driver Type | MOSFET |
Key Features
- Provides a 1 Amp output current suitable for demanding MOSFET gate driving applications.
- Features an 8-output MOSFET driver configuration for versatile control.
- Operating voltage up to a maximum supply of 45 Volts for robust power handling.
- Compact dimensions of 16mm length, 11.1mm width, and 3.3mm height with surface mount PowerSO package.
- Fast switching characterized by 50μs rise time and 75μs fall time for responsive control.
- Wide operating temperature range from -40°C to 125°C ensuring reliability in harsh environments.
- Designed with integrated diagnostic and protection features for safe high-side switching operations.
- Not compliant with automotive standards but suitable for industrial and commercial applications.
Product Description
STMicroelectronics VN808-32-E MOSFET Gate Driver is engineered to provide efficient power switching for a variety of industrial and electronic applications. This device integrates a logic interface with MOSFET drivers and includes diagnostic and protection functions, making it ideal for intelligent high-side power switching configurations.
The component features a 36-pin PowerSO package ensuring compact and surface-mount suitability, with dimensional specifics of 16mm in length, 11.1mm in width, and 3.3mm in height. It supports a robust output current of 1 Amp and an 8-output driver system designed to drive MOSFET gates effectively at voltages up to 45 Volts.
Fast switching speeds are achieved with rise times of 50 microseconds and fall times of 75 microseconds, which allows for precise control and energy efficiency in power management circuits. Device operation spans a wide temperature range from -40°C to 125°C, guaranteeing dependable function under challenging environmental conditions.
This MOSFET gate driver is mainly suited for industrial electronics, power management circuits, and electronic components provisioning in machinery manufacturing and assembly line automation. While it does not conform to specific automotive standards, its diagnostic features promote safe and reliable switching mechanisms in high-side configurations. The surface mount nature of this PowerSO package facilitates automated assembly processes enhancing manufacturing productivity.
Provides a 1 Amp output current suitable for demanding MOSFET gate driving applications. Features an 8-output MOSFET driver configuration for versatile control. Operating voltage up to a maximum supply of 45 Volts for robust power handling.
Compact dimensions of 16mm length, 11.1mm width, and 3.3mm height with surface mount PowerSO package. Fast switching characterized by 50μs rise time and 75μs fall time for responsive control. Wide operating temperature range from -40°C to 125°C ensuring reliability in harsh environments.
Designed with integrated diagnostic and protection features for safe high-side switching operations. Not compliant with automotive standards but suitable for industrial and commercial applications. Explore more advanced MOSFET Gate Drivers and power management ICs in the semiconductor category at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VN808-32-E provides a maximum output current of 1 Amp, suitable for demanding MOSFET gate driving applications.
This model can handle a maximum supply voltage of 45 Volts, allowing for robust power management.
The dimensions of this MOSFET gate driver are 16mm in length, 11.1mm in width, and 3.3mm in height.
It features an 8-output configuration, providing versatile control for driving MOSFET gates.
The rise time is characterized at 50 microseconds, while the fall time is 75 microseconds, enabling fast switching capabilities.
The VN808-32-E operates within a wide temperature range from -40°C to 125°C, ensuring reliability in harsh environments.
This MOSFET gate driver is packaged in a 36-pin PowerSO format, suitable for surface mount applications.
Yes, it is designed with integrated diagnostic and protection features for safe high-side switching operations.
No, this model is not compliant with automotive standards but is suitable for industrial and commercial applications.
The VN808-32-E is a MOSFET driver, specifically designed for efficient power switching in various applications.
The VN808-32-E is manufactured in India.
This model includes one driver, which is part of its 8-output configuration for driving MOSFETs.
