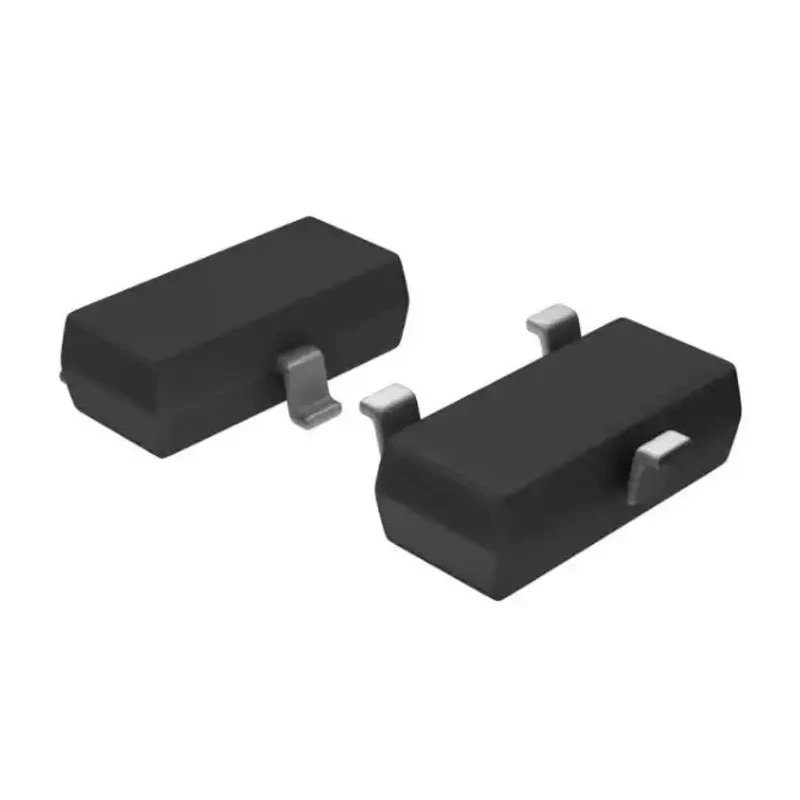

STMicroelectronics Uni-Directional TVS Diode Array, 3-Pin SOT-23-3L ESDA6V1LY

STMicroelectronics ESDA6V1LY Uni-Directional TVS Diode Array in a 3-pin SOT-23-3L package is designed for protecting sensitive electronic circuits against high-voltage transient events such as electrostatic discharge. With a minimum breakdown voltage of 6.1V and clamping voltage of 16V, the device safeguards one or two data lines, making it suitable for high-density board configurations.

This diode array features unidirectional transient voltage suppression that provides a peak pulse power rating of 300 watts (8/20 µs waveform), offering robust protection in automotive, industrial, and consumer electronics applications. Its low reverse leakage current of 20 microamps reduces power loss during normal operation, enhancing energy efficiency.

The device supports a broad operating temperature range from -55°C to 150°C and meets critical automotive standards including AEC-Q101, ensuring suitability for harsh environments. The SOT-23-3L surface mount package has small dimensions: 3.04mm length, 3mm height, and 1.4mm width, optimizing use of PCB space.

The diode array design integrates dual unidirectional Transil functions with high ESD protection capability up to 25 kV, making it ideal for sensitive semiconductor protection against voltage spikes and surges. This product is compliant with IEC and RoHS standards ensuring reliable performance and regulatory compliance.

Designed for unidirectional transient voltage suppression of one or two lines. Compact SOT-23-3L surface mount package for board space saving. Minimum breakdown voltage of 6.1 volts ensures reliable clamping at 16 volts.

Wide operating temperature range from -55°C to 150°C for robust performance. Maximum reverse leakage current is low at 20 microamps for energy efficiency. High peak pulse power capability of 300W with 8/20 µs waveform. AEC-Q101 qualification suitable for automotive applications.

Compliant with IEC and RoHS standards for safety and environmental compliance. Dimensions: 3.04mm length, 3mm height, 1.4mm width. High ESD protection up to 25 kV for sensitive electronics.

This diode array is highly suitable for industrial, automotive, and consumer electronics applications requiring reliable electrostatic and transient voltage protection. It is an excellent choice for circuit designers aiming for compact, high-performance ESD protection devices that comply with international standards.
