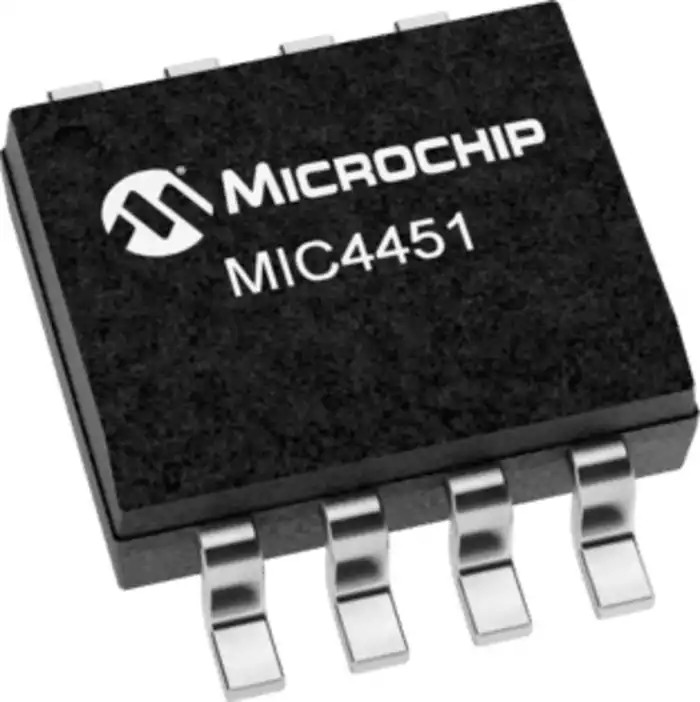

Microchip MOSFET Gate Driver 12 A 8-Pin SOIC 18V MIC4451YM

Microchip MIC4451YM MOSFET Gate Driver is a high-current driver designed for MOSFET and IGBT devices. With a robust 12 A output current capacity and fast switching times, this device enables efficient gate drive with reliable performance in power management circuits. Its compact 8-pin SOIC surface mount package suits modern automated manufacturing processes.

The driver operates at a nominal and maximum supply voltage of 18V, maintaining stability and consistency across operating conditions. Its operation is reliable from a wide temperature range of -40°C to 85°C, making it suitable for industrial, automotive, and commercial electronic applications.

The device features rapid rise and fall times of 20 ns and 24 ns respectively, ensuring quick switching transitions to minimize losses and heat generation. With 5 outputs and a single driver configuration, it supports multiple gate driving needs.

Physical dimensions of the device are 4.93 mm length, 3.94 mm width, and 1.48 mm height, enabling compact PCB designs without sacrificing performance. It does not carry automotive certification but adheres to standard semiconductor reliability expectations.

This MOSFET Gate Driver is ideal for power management IC designs in industrial controls, consumer electronics, and embedded systems where precise and powerful gate control is critical.

The driver supports a maximum output current of 12 A for reliable MOSFET switching. Equipped with an 8-pin SOIC surface mount package ensuring compact board integration. Operating voltage ranges from minimum 18V to maximum 18V supply voltage.

Features fast rise and fall times of 20 ns and 24 ns respectively to improve switching speed. Designed to operate within temperature range from -40°C to 85°C for robust performance. Includes 5 outputs and 1 driver unit for versatile applications.

Mount type is surface mount technology suitable for automated PCB assembly. Physical dimensions include height 1.48 mm, length 4.93 mm, width 3.94 mm. Explore more power semiconductor and gate driver solutions in the Electronics & Electricals section at EnvMart for advanced industrial and commercial applications.
