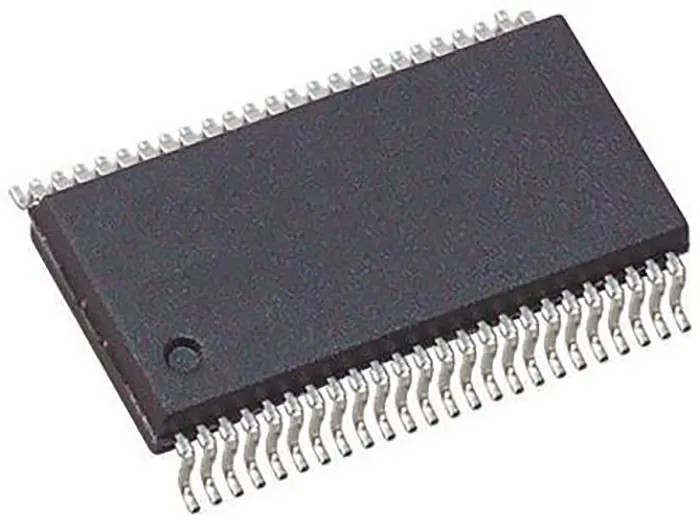

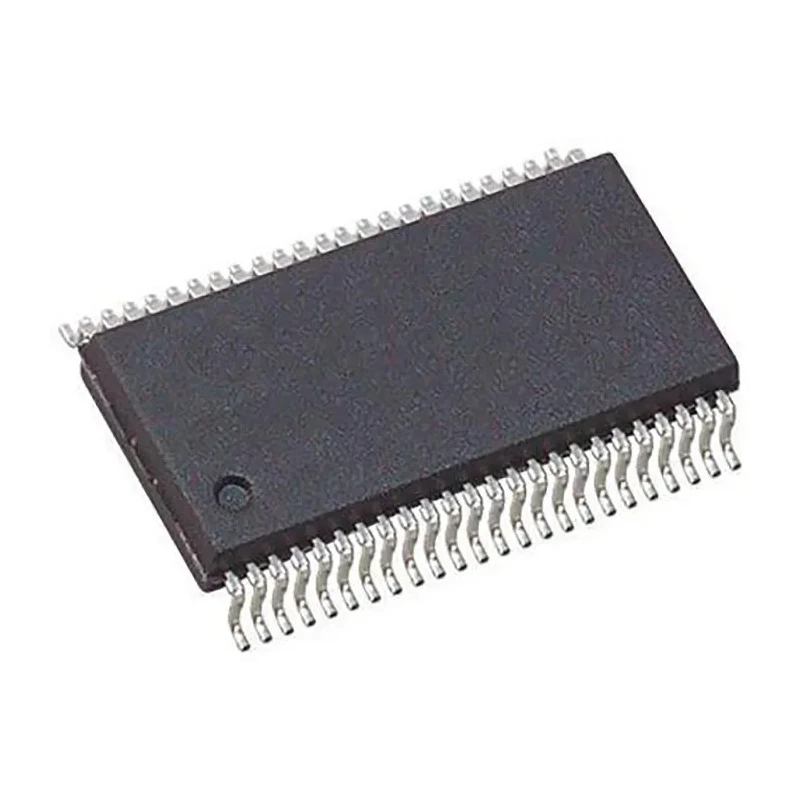

onsemi 16-Channel Buffer & Line Driver, 3 State, Non-Inverting, 48-Pin TSSOP 74LCX16244MTDX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.74mm |
| Operating Voltage Range | 2.0 to 3.6V |
| Length | 16mm |
| Model | 74LCX16244MTDX |
| Width | 10.6mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | LCX16244 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 16 |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LCX |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 5.4ns |
| Supply Current | 20μA |
| Maximum Low Level Output Current | 24mA |
Key Features
- Features 16 buffered non-inverting outputs with 3 state capability.
- Designed for surface mount applications with a compact TSSOP package.
- Operates at low voltage range between 2V and 3.6V with 5V tolerant inputs and outputs.
- Offers maximum propagation delay time of 5.4 nanoseconds at specified load.
- Wide operating temperature range from -40°C to 85°C for reliable performance.
- Provides high output current drive capability with ±24 mA levels.
- Extremely low supply current consumption approximately 20 microamperes.
- Ideal for buffering and driving multiple line signals in digital interfaces.
Product Description
onsemi 74LCX16244MTDX is a high-speed, low-voltage CMOS 16-channel buffer and line driver integrated circuit, provided in a surface mount 48-pin Thin Shrink Small Outline Package (TSSOP). It features non-inverting logic with 3 state outputs allowing effective line driving and bus sharing in complex digital circuits.
This line driver IC operates reliably over a supply voltage range from 2.0 to 3.6 volts, with 5V tolerant inputs and outputs offering excellent compatibility in mixed voltage systems. Its maximum propagation delay time is 5.4 nanoseconds at typical load capacitance providing fast data transmission.
The device supports high output current driving capability with ±24 mA output current levels and displays minimal supply current draw of around 20 microamperes, making it energy efficient for portable and power sensitive applications.
The temperature range from -40 to 85 degrees Celsius ensures stable function under harsh environmental conditions, making it suitable for industrial, automotive (non-automotive standard), telecommunications, and instrumentation uses.
This TSSOP packaged IC, measuring 16 mm by 10.6 mm by 2.74 mm, is ideal for dense PCB layouts requiring buffing, line driving, or bus interface functions while maintaining signal integrity and electrical isolation.
Applications include digital interface signal buffering, data line driving for microprocessor systems, and wafer-scale integration needs within commercial, industrial, and laboratory electronic systems.
Features 16 buffered non-inverting outputs with 3 state capability. Designed for surface mount applications with a compact TSSOP package. Operates at low voltage range between 2V and 3.6V with 5V tolerant inputs and outputs.
Offers maximum propagation delay time of 5.4 nanoseconds at specified load. Wide operating temperature range from -40°C to 85°C for reliable performance. Provides high output current drive capability with ±24 mA levels. Extremely low supply current consumption approximately 20 microamperes.
Ideal for buffering and driving multiple line signals in digital interfaces. Compatible with automotive electronics standards but is not certified automotive grade. Package dimensions approx. 16 mm length, 10.6 mm width, 2.74 mm height.
Explore our extensive inventory of Line Interface ICs and semiconductor solutions at EnvMart for reliable electronic component sourcing.
