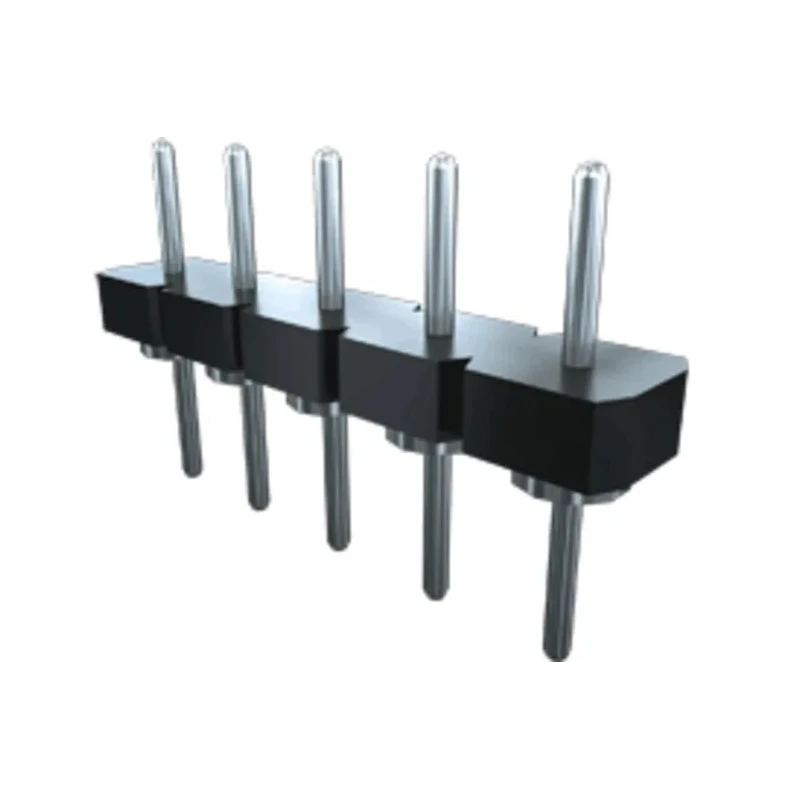

Samtec BBL Series Straight Through Hole Pin Header 16 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-116-T-F

Free Delivery in India | Lowest Global Shipping Charges

Samtec BBL Series Straight Through Hole Pin Header 16 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-116-T-F

Name: Samtec BBL Series Straight Through Hole Pin Header 16 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-116-T-F
Brand: Samtec
SKU: 216161
Price: 3.76 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	United States
Brand	Samtec
Orientation	Straight
Current	1A
Model	BBL-116-T-F
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	BBL
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3.18mm
Mating Pin Length	2.67mm
Contact System	Machined Terminal

Key Features

Constructed with liquid crystal polymer housing for durability.
Phosphor bronze contacts plated with tin ensure reliable electrical connection.
Rated for continuous current of 1 ampere.
Operating temperature ranges from -55°C to 125°C for diverse applications.
Tail pin length of 3.18 mm and mating pin length of 2.67 mm provide secure mechanical and electrical engagement.
Designed with board-to-board connector system and solder termination type.
Male contact gender suitable for standard PCB connector interfaces.
Unshrouded layout simplifies assembly in dense electronic designs.

Product Description

Samtec BBL-116-T-F is a precision-engineered straight through hole pin header from the BBL series, featuring 16 male contacts arranged in a single row with a standard 2.54 mm pitch. It uses a liquid crystal polymer housing that provides excellent mechanical strength and stability, ideal for demanding electronics manufacturing environments.

The pin header is built with phosphor bronze contacts plated in tin, offering low electrical resistance and enhanced corrosion protection for consistent conductivity. Designed for a continuous current rating of 1 ampere, it performs reliably within a wide temperature range from -55°C to 125°C, making it suitable for industrial, laboratory, and commercial electronics applications.

Each pin has a tail length of 3.18 mm and a mating length of 2.67 mm, ensuring secure soldered connections and mating with compatible components. The connector system is board-to-board in nature, mounted through holes on printed circuit boards, facilitating straightforward installation. Its unshrouded configuration offers flexibility for various PCB layouts and reduces assembly complexity.

This part is manufactured to high standards in the United States and supports reliable and robust electronic interconnections for devices requiring multiple-pin header connections in a compact form factor.

Liquid crystal polymer housing enhances mechanical durability. Phosphor bronze contact material plated with tin for reliable conduction. Supports continuous current up to 1A for moderate power requirements. Wide operating temperature of -55°C to 125°C supports harsh environments.

Single-row 16-contact design with 2.54 mm pitch for compatibility with standard PCB layouts. Through hole solder termination type for secure installation. Unshrouded straight orientation simplifies assembly and access.

Suitable for use in electronics manufacturing, industrial equipment, laboratory instruments, and commercial electronic assemblies, this Samtec pin header supports high-quality and precision PCB connection needs. Explore the Electronics & Electricals category for more PCB header and connector solutions at EnvMart.
